HGW HYDRAULICS

6502-10-10-SS

5/8" Male JIC 37° Flare × 5/8" Female JIC 37° Swivel · 45° Swivel Elbow

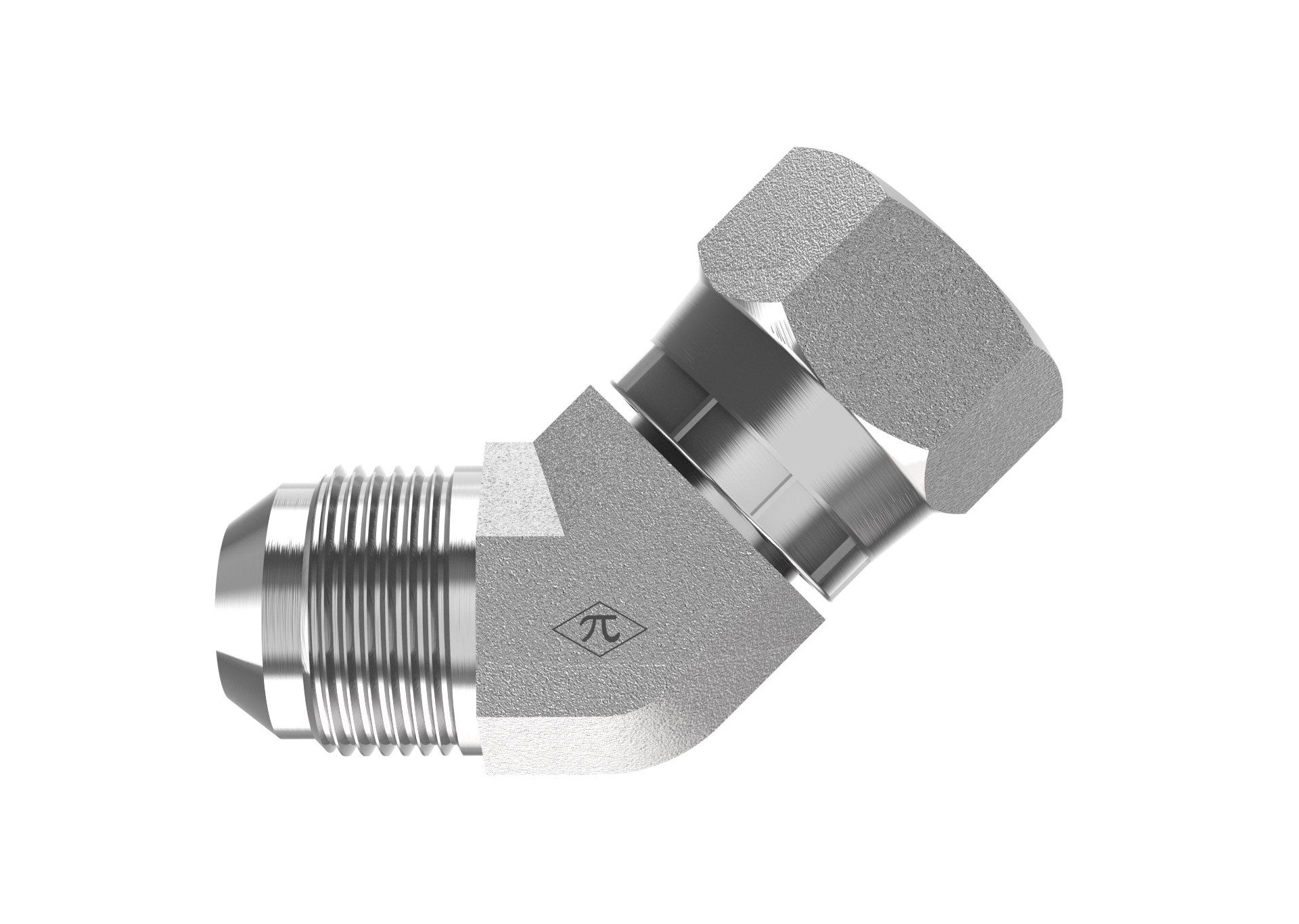

The HGW 6502-10-10-SS is a 45° swivel elbow joining 5/8" male JIC 37° flare to 5/8" female JIC 37° swivel. Made from stainless steel, it uses SAE J514 interfaces for compatible hydraulic applications.

  • Stainless Steel
  • 45° Swivel Elbow
$64.20
(0) Write a Review
SKU:
6502-10-10-SS

Product Details

Connection A
TypeMale JIC 37° Flare
Tube Size5/8"
StandardSAE J514 · Class 2A Thread
Thread7/8-14
Connection B
TypeFemale JIC 37° Swivel
Tube Size5/8"
StandardSAE J514 · Class 2B Thread
Thread7/8-14
Connection C
Connection D
Specifications
MaterialStainless Steel
Shape45° Swivel Elbow
Weight0.28 lb
Cross References
Aeroquip259-2070-10-10
Parker10 V6X-SS
SAE Ref.SAE J514 10-10 070321S

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
