HGW HYDRAULICS

6502-24-24-SS

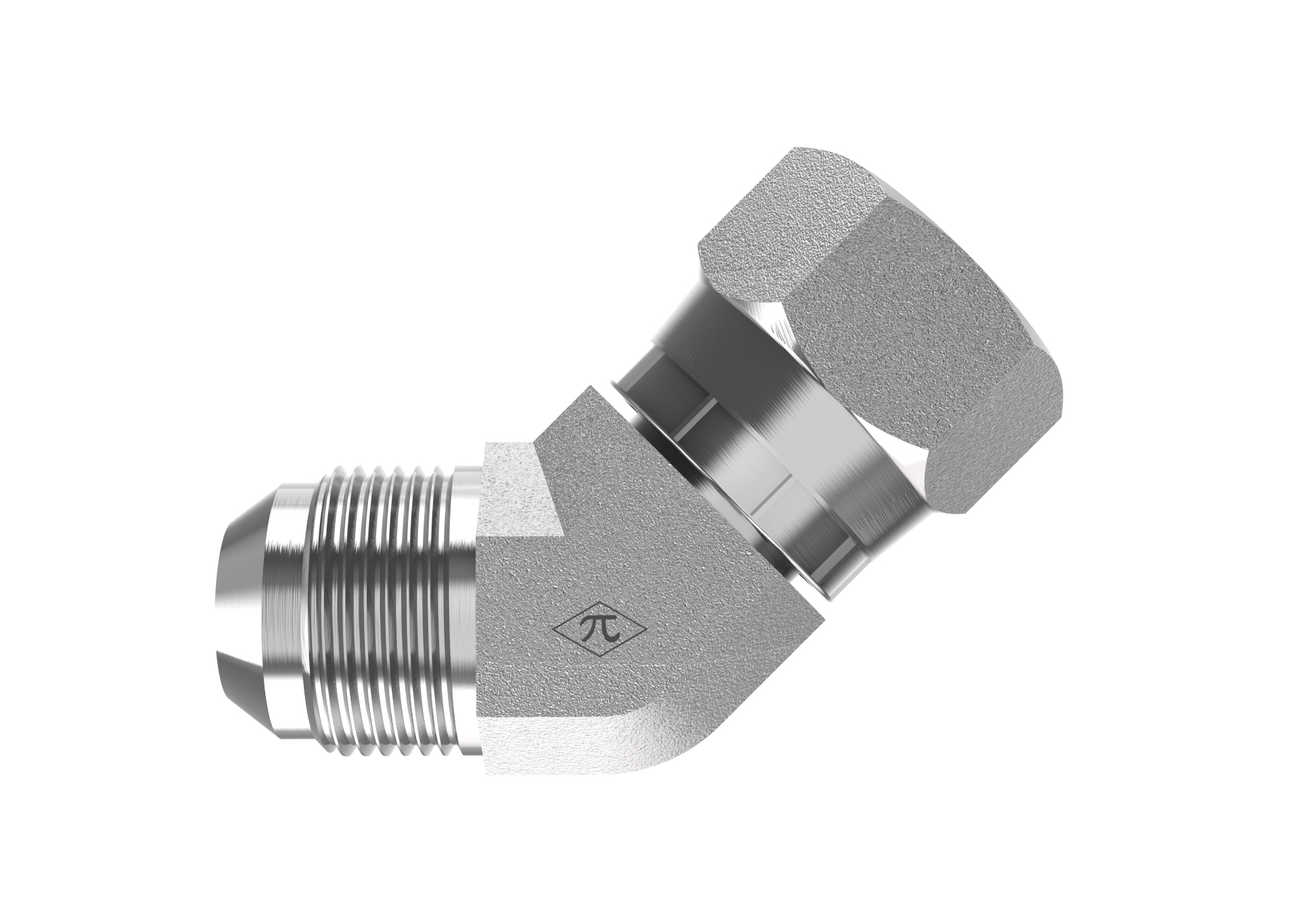

1-1/2" Male JIC 37° Flare × 1-1/2" Female JIC 37° Swivel · 45° Swivel Elbow

The HGW 6502-24-24-SS is a 45° swivel elbow joining 1-1/2" male JIC 37° flare to 1-1/2" female JIC 37° swivel. Made from stainless steel, it uses SAE J514 interfaces for compatible hydraulic applications.

  • Stainless Steel
  • 45° Swivel Elbow
$148.40
(0) Write a Review
SKU:
6502-24-24-SS

Product Details

Connection A
TypeMale JIC 37° Flare
Tube Size1-1/2"
StandardSAE J514 · Class 2A Thread
Thread1-7/8-12
Connection B
TypeFemale JIC 37° Swivel
Tube Size1-1/2"
StandardSAE J514 · Class 2B Thread
Thread1-7/8-12
Connection C
Connection D
Specifications
MaterialStainless Steel
Shape45° Swivel Elbow
Weight1.69 lb
Cross References
Aeroquip259-2070-24-24
Parker24 V6X-SS
SAE Ref.SAE J514 24-24 070321S

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
