HGW HYDRAULICS

6502-32-32-FG

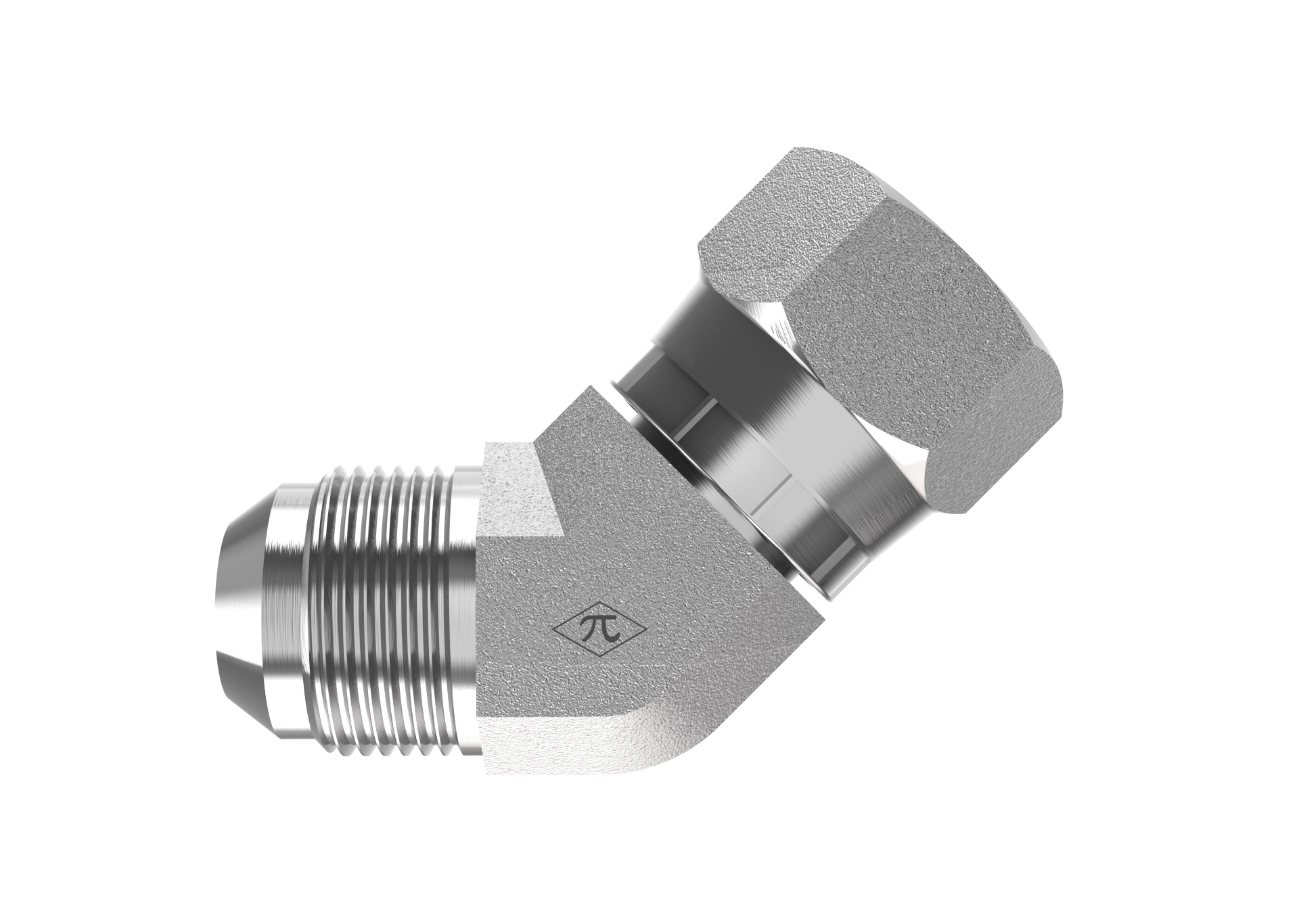

2" Male JIC 37° Flare × 2" Female JIC 37° Swivel · 45° Swivel Elbow

The HGW 6502-32-32-FG is a 45° swivel elbow joining 2" male JIC 37° flare to 2" female JIC 37° swivel. Made from trivalent-zinc-plated steel, it uses SAE J514 interfaces for compatible hydraulic applications.

  • Steel
  • Trivalent Zinc
  • 45° Swivel Elbow
$147.80
(0) Write a Review
SKU:
6502-32-32-FG

Product Details

Connection A
TypeMale JIC 37° Flare
Tube Size2"
StandardSAE J514 · Class 2A Thread
Thread2-1/2-12
Connection B
TypeFemale JIC 37° Swivel
Tube Size2"
StandardSAE J514 · Class 2B Thread
Thread2-1/2-12
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
Shape45° Swivel Elbow
Weight3.50 lb
Cross References
Aeroquip2070-32-32S
Parker32 V6X-S
SAE Ref.SAE J514 32-32 070321C

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
