HGW HYDRAULICS

6504-06-08

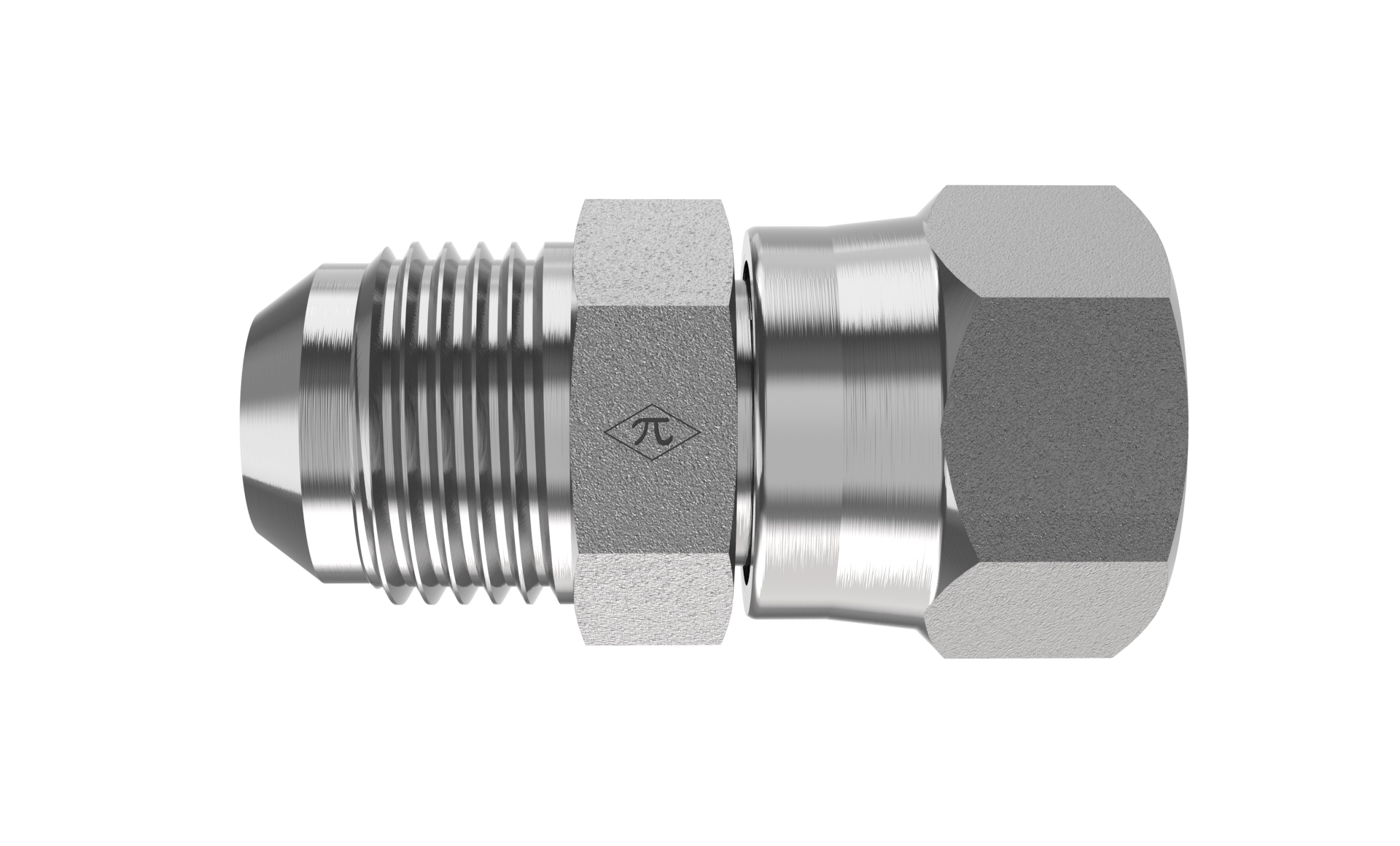

3/8" Male JIC x 1/2" Female JIC Swivel

6504-06-08 is a 3/8" Male JIC x 1/2" Female JIC Swivel in the 6504 Series. For connecting 37° flared tubes or lines to JIC lines using a swivel for alignment.

  • Steel
  • Trivalent Zinc
  • Swivel Adapter
$3.13
(0) Write a Review
SKU:
6504-06-08

Product Details

Connection A
TypeMale JIC
Tube OD3/8"
StandardSAE J514 - Class 2A Thread
Thread Type9/16-18 UNF
Connection B
TypeFemale JIC Swivel
Tube OD1/2"
StandardSAE J514 - Class 2B Thread
Thread Type9/16-18 UNF
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeSwivel Adapter
Weight0.14 lb
Cross References
Parker6-8 XHX6-S

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
