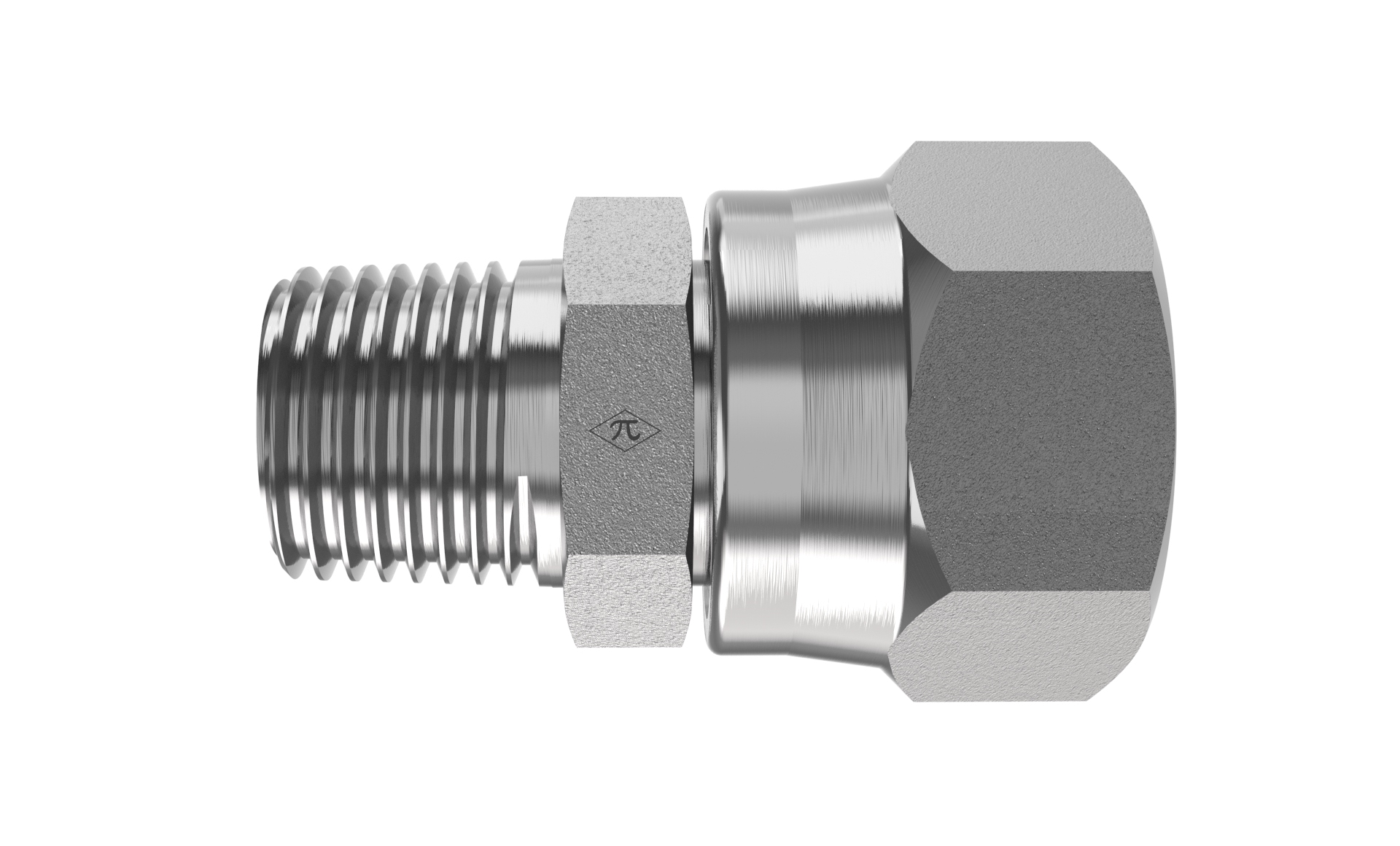

6505 product image

HGW HYDRAULICS

6505-06-10

3/8" Male NPTF 30° x 5/8" Female JIC Swivel

6505-06-10 is a 3/8" Male NPTF 30° x 5/8" Female JIC Swivel in the 6505 Series. For connecting pipe to JIC lines using a swivel for alignment and without requiring pipe sealant.

  • Steel
  • Trivalent Zinc
  • Swivel Connector
$7.28
(0) Write a Review

Product Details

Connection A
TypeMale NPTF 30°
Pipe Size3/8"
StandardSAE J476
Thread Type3/8-18 NPTF
Connection B
TypeFemale JIC Swivel
Tube OD5/8"
StandardSAE J514 - Class 2B Thread
Thread Type3/8-18 NPTF
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeSwivel Connector
Weight0.21 lb
Cross References
Aeroquip2018-6-10S
Parker10-6 F6X-S

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
