HGW HYDRAULICS

6505-20-20-SS

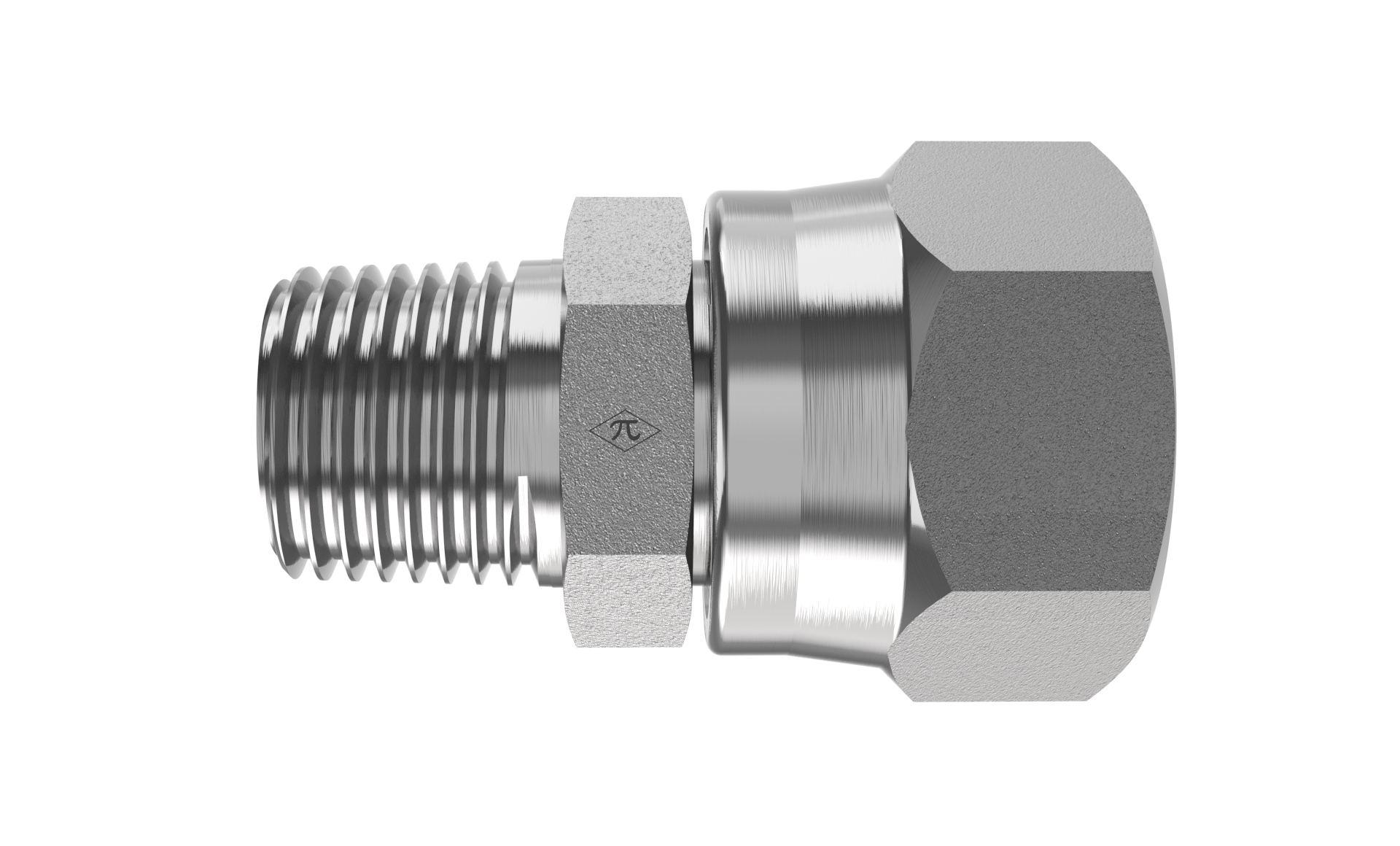

1-1/4" Male NPTF × 1-1/4" Female JIC 37° Swivel · Straight Male NPTF Swivel Adapter

The HGW 6505-20-20-SS is a straight male NPTF swivel adapter joining 1-1/4" male NPTF to 1-1/4" female JIC 37° swivel. Made from stainless steel, it uses SAE J476 and SAE J514 interfaces for compatible hydraulic applications.

  • Stainless Steel
  • Straight Male Pipe Swivel Adapter
$112.82
(0) Write a Review
SKU:
6505-20-20-SS

Product Details

Connection A
TypeMale NPTF
Pipe Size1-1/4"
StandardSAE J476
Thread1-1/4-11-1/2
Connection B
TypeFemale JIC 37° Swivel
Tube Size1-1/4"
StandardSAE J514 · Class 2B Thread
Thread1-5/8-12
Connection C
Connection D
Specifications
MaterialStainless Steel
ShapeStraight Male Pipe Swivel Adapter
Weight1.00 lb
Cross References
Aeroquip259-2018-20-20
Parker20 F6X-SS

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
