HGW HYDRAULICS

6565-16-16-SS

1" Female JIC 37° Swivel × 1" Female JIC 37° Swivel · Straight Swivel Union

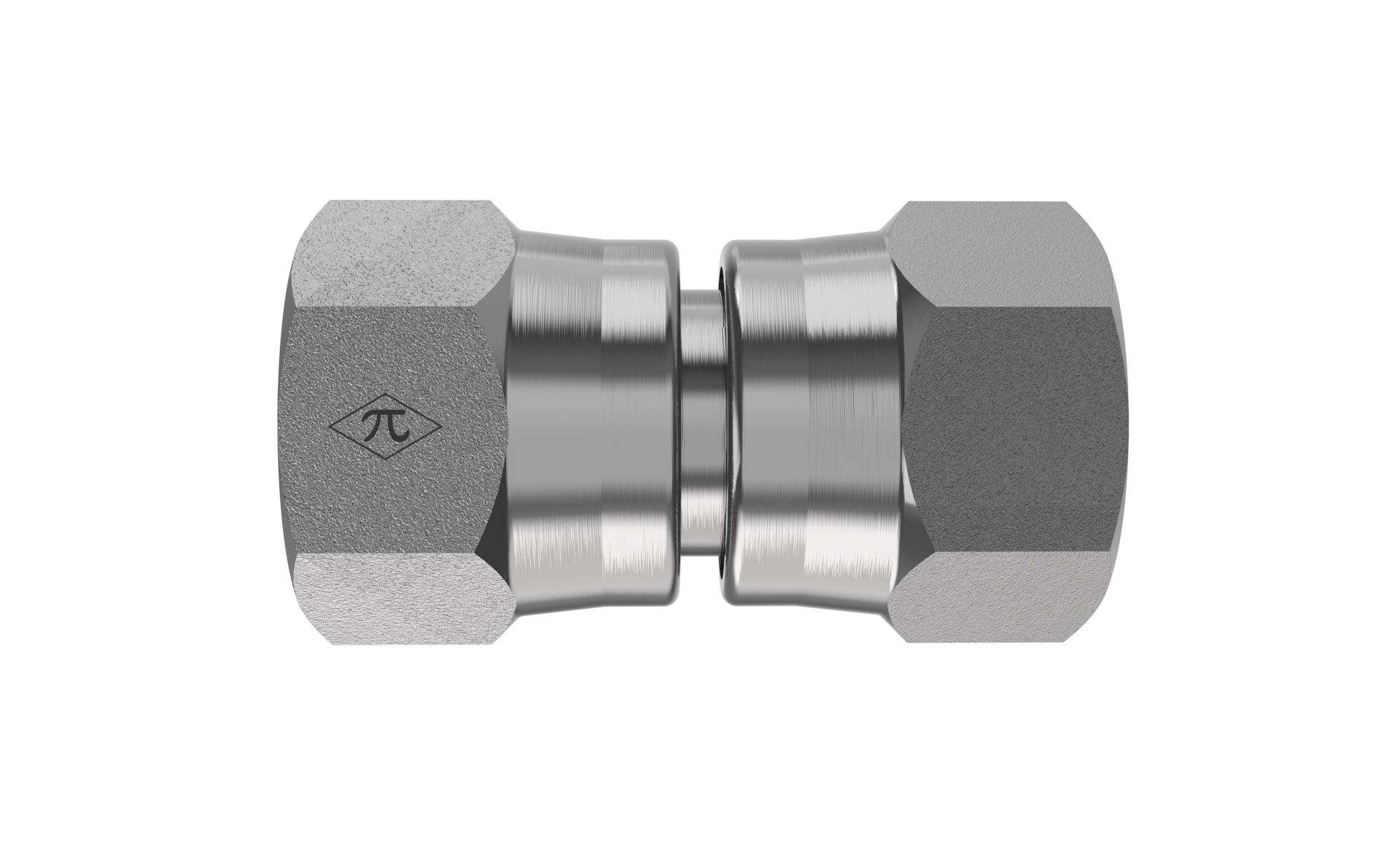

The HGW 6565-16-16-SS is a straight swivel union joining 1" female JIC 37° swivel to 1" female JIC 37° swivel. Made from stainless steel, it uses SAE J514 interfaces for compatible hydraulic applications.

  • Stainless Steel
  • Straight Swivel Union
$47.12
(0) Write a Review
SKU:
6565-16-16-SS

Product Details

Connection A
TypeFemale JIC 37° Swivel
Tube Size1"
StandardSAE J514 · Class 2B Thread
Thread1-5/16-12
Connection B
TypeFemale JIC 37° Swivel
Tube Size1"
StandardSAE J514 · Class 2B Thread
Thread1-5/16-12
Connection C
Connection D
Specifications
MaterialStainless Steel
ShapeStraight Swivel Union
Weight0.54 lb
Cross References
Aeroquip259-FF1730-1616
Parker16 HX6-SS

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
