6600-32-32-32-SS

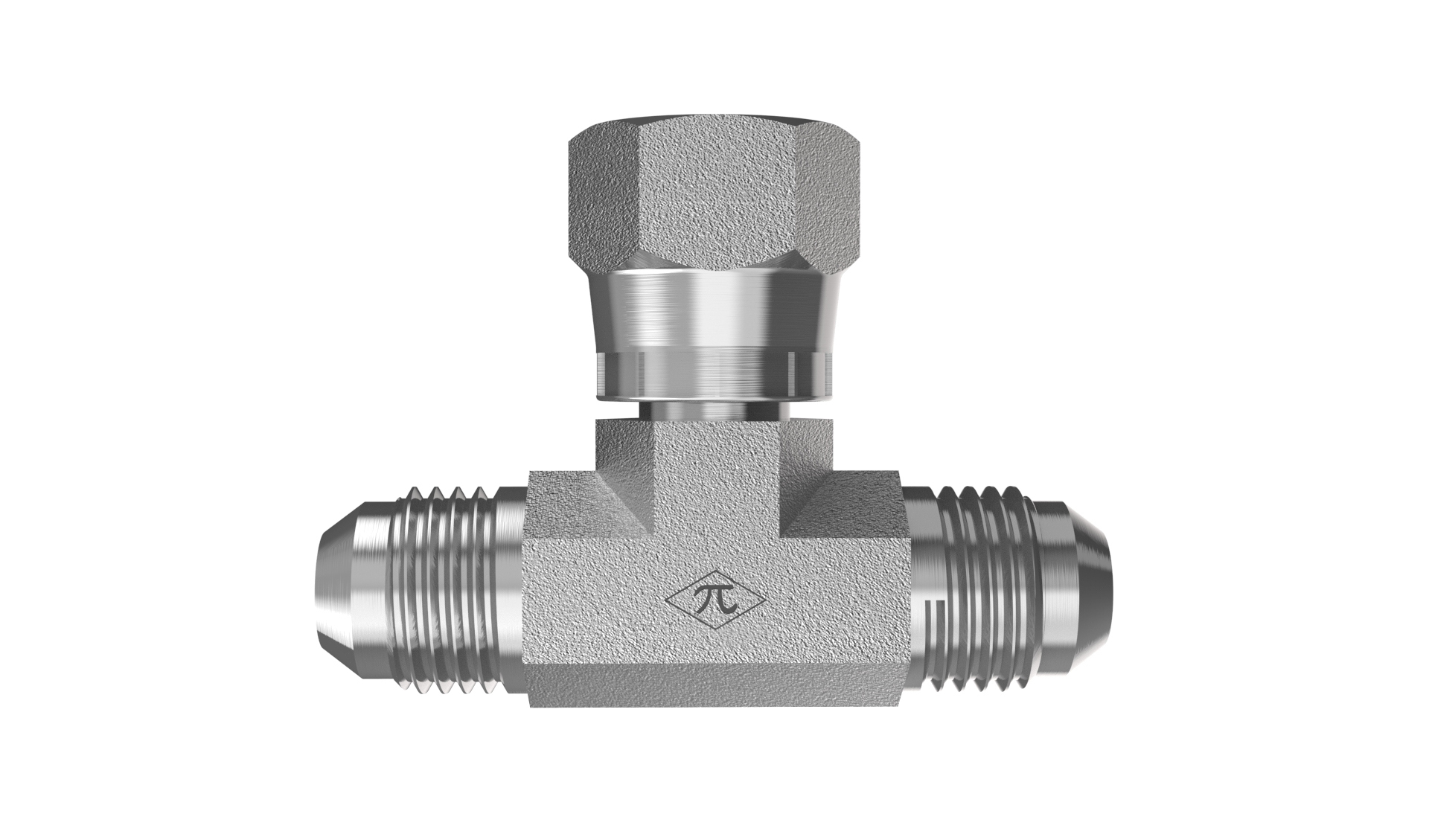

2" Male JIC x 2" Male JIC x 2" Female JIC Swivel

6600-32-32-32-SS is a 2" Male JIC x 2" Male JIC x 2" Female JIC Swivel in the 6600-FG Series. For connecting two 37° flared tubes or lines on the run with a JIC line on the branch using a swivel for alignment.

  • Stainless Steel
  • Swivel Branch Tee
  • None
$2,264.90
(0) Write a Review
SKU:
6600-32-32-32-SS

Product Details

Connection A
TypeMale JIC
Tube OD2"
StandardSAE J514 - Class 2A Thread
Thread Type2-1/2-12 UN
Connection B
TypeMale JIC
Tube OD2"
StandardSAE J514 - Class 2A Thread
Thread Type2-1/2-12 UN
Connection C
TypeFemale JIC Swivel
Tube OD2"
StandardSAE J514 - Class 2B Thread
Thread Type2-1/2-12 UN
Connection D
Specifications
MaterialStainless Steel
ShapeSwivel Branch Tee
Weight5.14 lb
PlatingNone
Cross References
Aeroquip259-203101-32-32
Parker32 S6X-SS
SAE Ref.SAE J514 32-32-32 070433S

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
