6602-03-03-03-SS

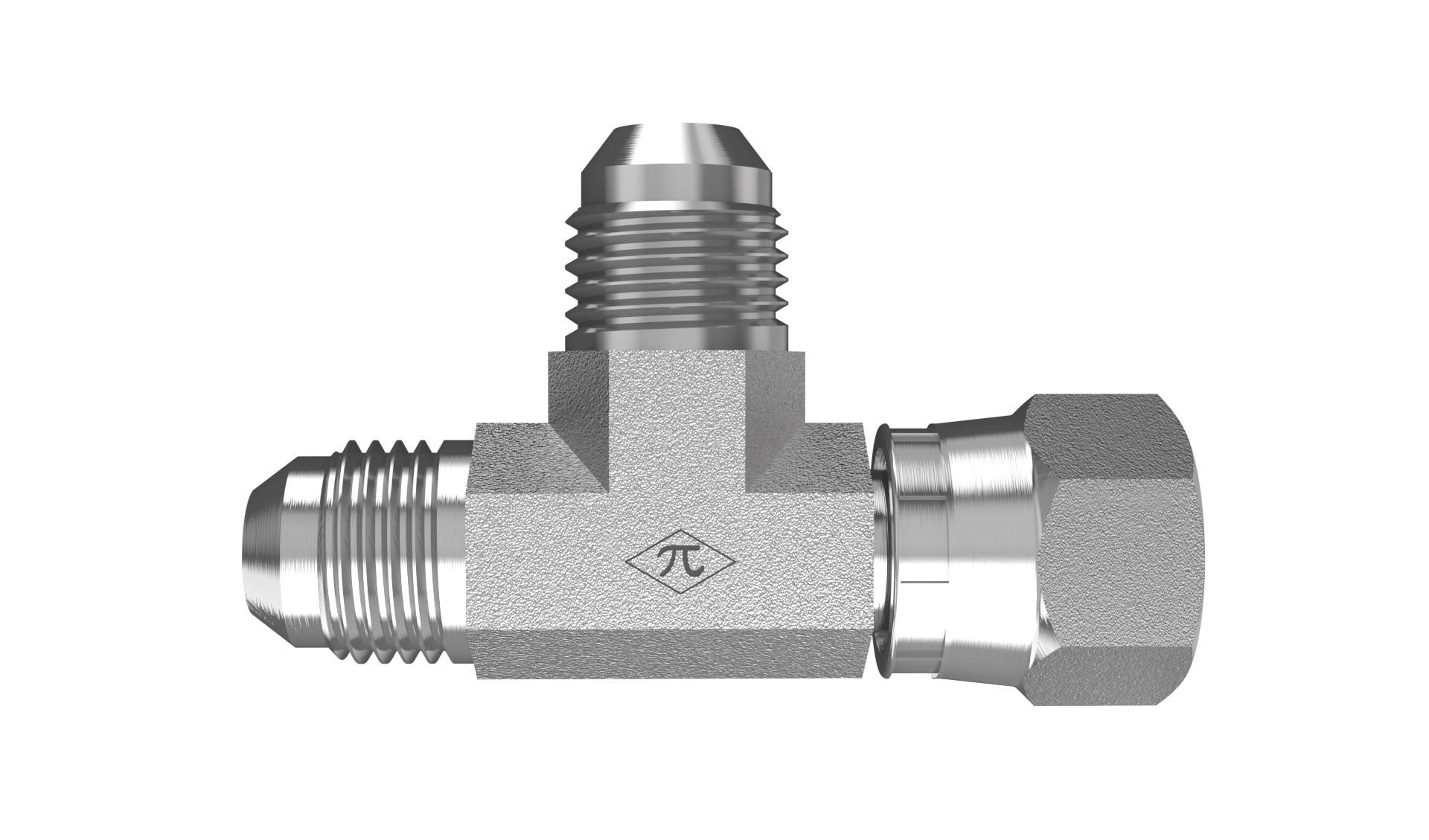

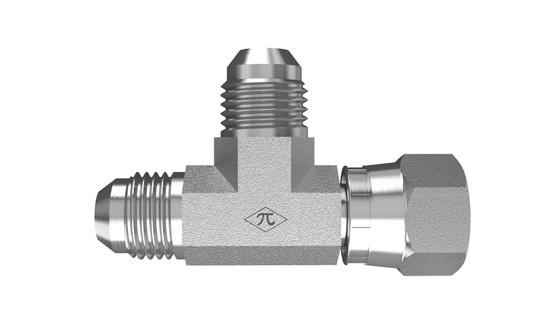

3/16" Male JIC x 3/16" Female JIC Swivel x 3/16" Male JIC

6602-03-03-03-SS is a 3/16" Male JIC x 3/16" Female JIC Swivel x 3/16" Male JIC in the 6602-FG Series. For connecting two 37° flared tubes or lines with a JIC line on the run using a swivel for alignment.

  • Stainless Steel
  • Swivel Run Tee
  • None
$77.76
(0) Write a Review
SKU:
6602-03-03-03-SS

Product Details

Connection A
TypeMale JIC
Tube OD3/16"
StandardSAE J514 - Class 2A Thread
Thread Type3/8-24 UNF
Connection B
TypeFemale JIC Swivel
Tube OD3/16"
StandardSAE J514 - Class 2B Thread
Thread Type3/8-24 UNF
Connection C
TypeMale JIC
Tube OD3/16"
StandardSAE J514 - Class 2A Thread
Thread Type3/8-24 UNF
Connection D
Specifications
MaterialStainless Steel
ShapeSwivel Run Tee
Weight0.08 lb
PlatingNone
Cross References
Aeroquip259-203102-3-3
Parker3-R6X-SS
SAE Ref.SAE J514 3-3-3 070432S

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
