HGW HYDRAULICS

6602-04-04-04-SS

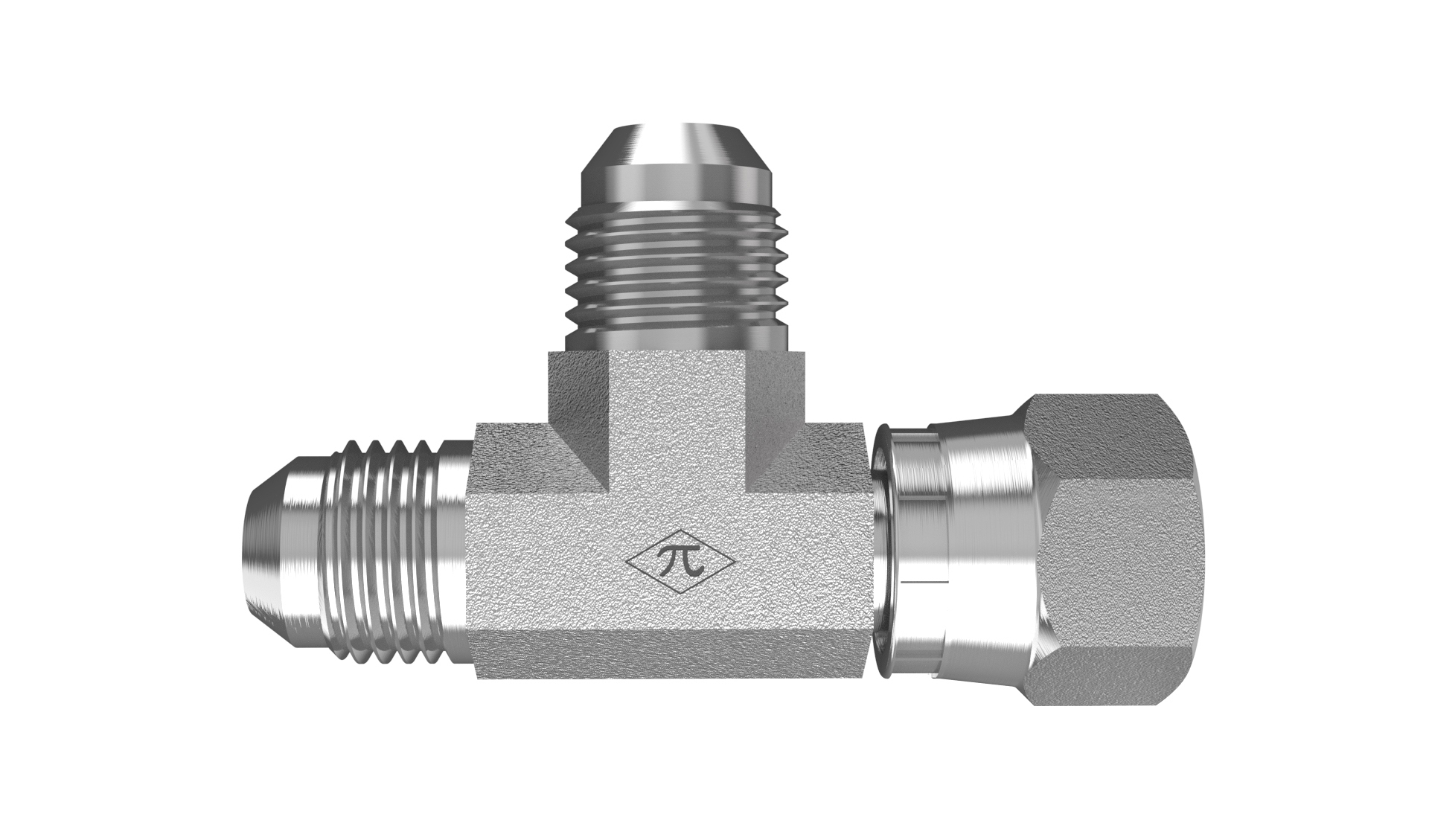

1/4" Male JIC x 1/4" Female JIC Swivel x 1/4" Male JIC

6602-04-04-04-SS is a 1/4" Male JIC x 1/4" Female JIC Swivel x 1/4" Male JIC in the 6602-FG Series. For connecting two 37° flared tubes or lines with a JIC line on the run using a swivel for alignment.

  • Stainless Steel
  • Swivel Run Tee
  • None
$27.00
(0) Write a Review
SKU:
6602-04-04-04-SS

Product Details

Connection A
TypeMale JIC
Tube OD1/4"
StandardSAE J514 - Class 2A Thread
Thread Type7/16-20 UNF
Connection B
TypeFemale JIC Swivel
Tube OD1/4"
StandardSAE J514 - Class 2B Thread
Thread Type7/16-20 UNF
Connection C
TypeMale JIC
Tube OD1/4"
StandardSAE J514 - Class 2A Thread
Thread Type7/16-20 UNF
Connection D
Specifications
MaterialStainless Steel
ShapeSwivel Run Tee
Weight0.09 lb
PlatingNone
Cross References
Aeroquip259-203102-4-4
Parker4 R6X-SS
SAE Ref.SAE J514 4-4-4 070432S

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
