HGW HYDRAULICS

6602-05-05-05-FG

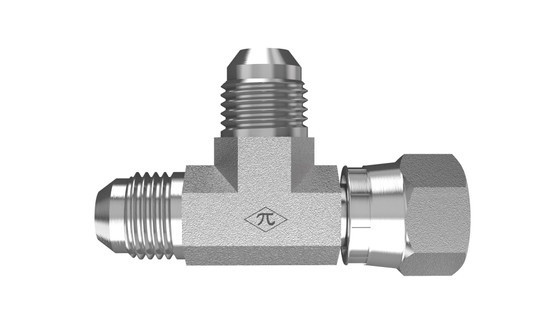

5/16" Male JIC x 5/16" Female JIC Swivel x 5/16" Male JIC

6602-05-05-05-FG is a 5/16" Male JIC x 5/16" Female JIC Swivel x 5/16" Male JIC in the 6602-FG Series. For connecting two 37° flared tubes or lines with a JIC line on the run using a swivel for alignment.

  • Steel
  • Trivalent Zinc
  • Swivel Run Tee
$5.97
(0) Write a Review
SKU:
6602-05-05-05-FG

Product Details

Connection A
TypeMale JIC
Tube OD5/16"
StandardSAE J514 - Class 2A Thread
Thread Type1/2-20 UNF
Connection B
TypeFemale JIC Swivel
Tube OD5/16"
StandardSAE J514 - Class 2B Thread
Thread Type1/2-20 UNF
Connection C
TypeMale JIC
Tube OD5/16"
StandardSAE J514 - Class 2A Thread
Thread Type1/2-20 UNF
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeSwivel Run Tee
Weight0.12 lb
Cross References
Aeroquip203102-5-5S
Parker5 R6X-S
SAE Ref.SAE J514 5-5-5 070432C

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
