HGW HYDRAULICS

6602-10-16-10-FG

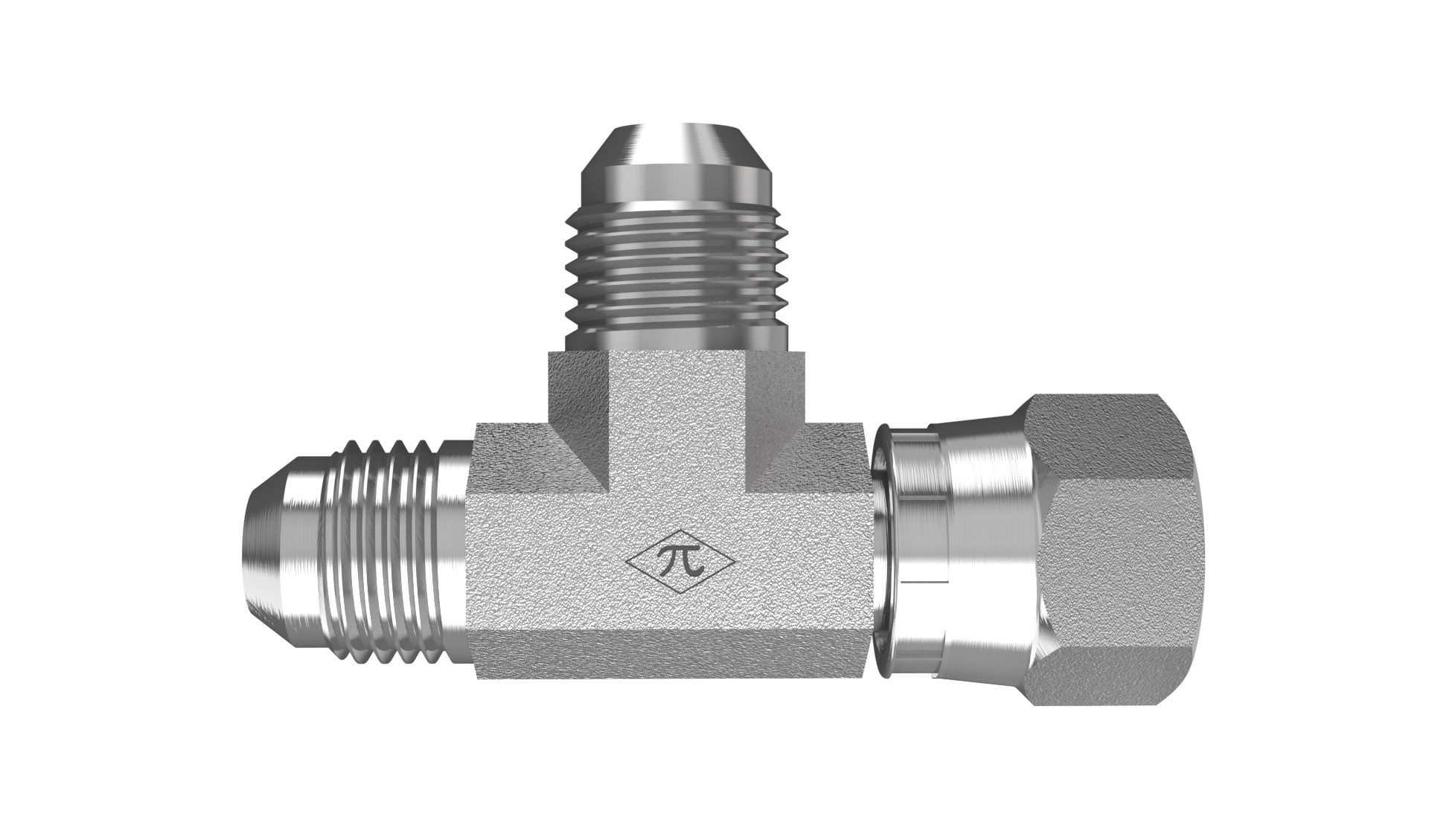

5/8" Male JIC x 1" Female JIC Swivel x 5/8" Male JIC

6602-10-16-10-FG is a 5/8" Male JIC x 1" Female JIC Swivel x 5/8" Male JIC in the 6602-FG Series. For connecting two 37° flared tubes or lines with a JIC line on the run using a swivel for alignment.

  • Steel
  • Trivalent Zinc
  • Swivel Run Tee
$162.31
(0) Write a Review
SKU:
6602-10-16-10-FG

Product Details

Connection A
TypeMale JIC
Tube OD5/8"
StandardSAE J514 - Class 2A Thread
Thread Type7/8-14 UNF
Connection B
TypeFemale JIC Swivel
Tube OD1"
StandardSAE J514 - Class 2B Thread
Thread Type7/8-14 UNF
Connection C
TypeMale JIC
Tube OD5/8"
StandardSAE J514 - Class 2A Thread
Thread Type1-5/16-12 UN
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeSwivel Run Tee
Weight0.66 lb
Cross References
SAE Ref.SAE J514 10-16-10 070432C

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
