HGW HYDRAULICS

6602-20-20-20-SS

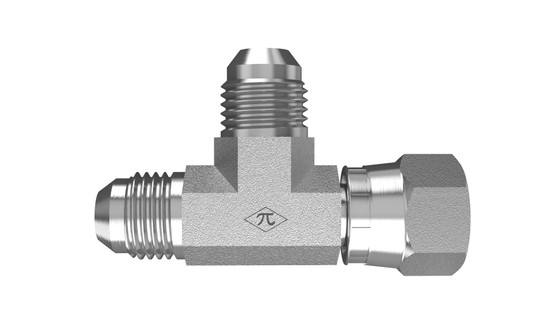

1-1/4" Male JIC x 1-1/4" Female JIC Swivel x 1-1/4" Male JIC

6602-20-20-20-SS is a 1-1/4" Male JIC x 1-1/4" Female JIC Swivel x 1-1/4" Male JIC in the 6602-FG Series. For connecting two 37° flared tubes or lines with a JIC line on the run using a swivel for alignment.

  • Stainless Steel
  • Swivel Run Tee
  • None
$210.76
(0) Write a Review
SKU:
6602-20-20-20-SS

Product Details

Connection A
TypeMale JIC
Tube OD1-1/4"
StandardSAE J514 - Class 2A Thread
Thread Type1-5/8-12 UN
Connection B
TypeFemale JIC Swivel
Tube OD1-1/4"
StandardSAE J514 - Class 2B Thread
Thread Type1-5/8-12 UN
Connection C
TypeMale JIC
Tube OD1-1/4"
StandardSAE J514 - Class 2A Thread
Thread Type1-5/8-12 UN
Connection D
Specifications
MaterialStainless Steel
ShapeSwivel Run Tee
Weight1.80 lb
PlatingNone
Cross References
Aeroquip259-203102-20-20
Parker20 R6X-SS
SAE Ref.SAE J514 20-20-20 070432S

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
