HGW HYDRAULICS

6603-08-08-08-FG

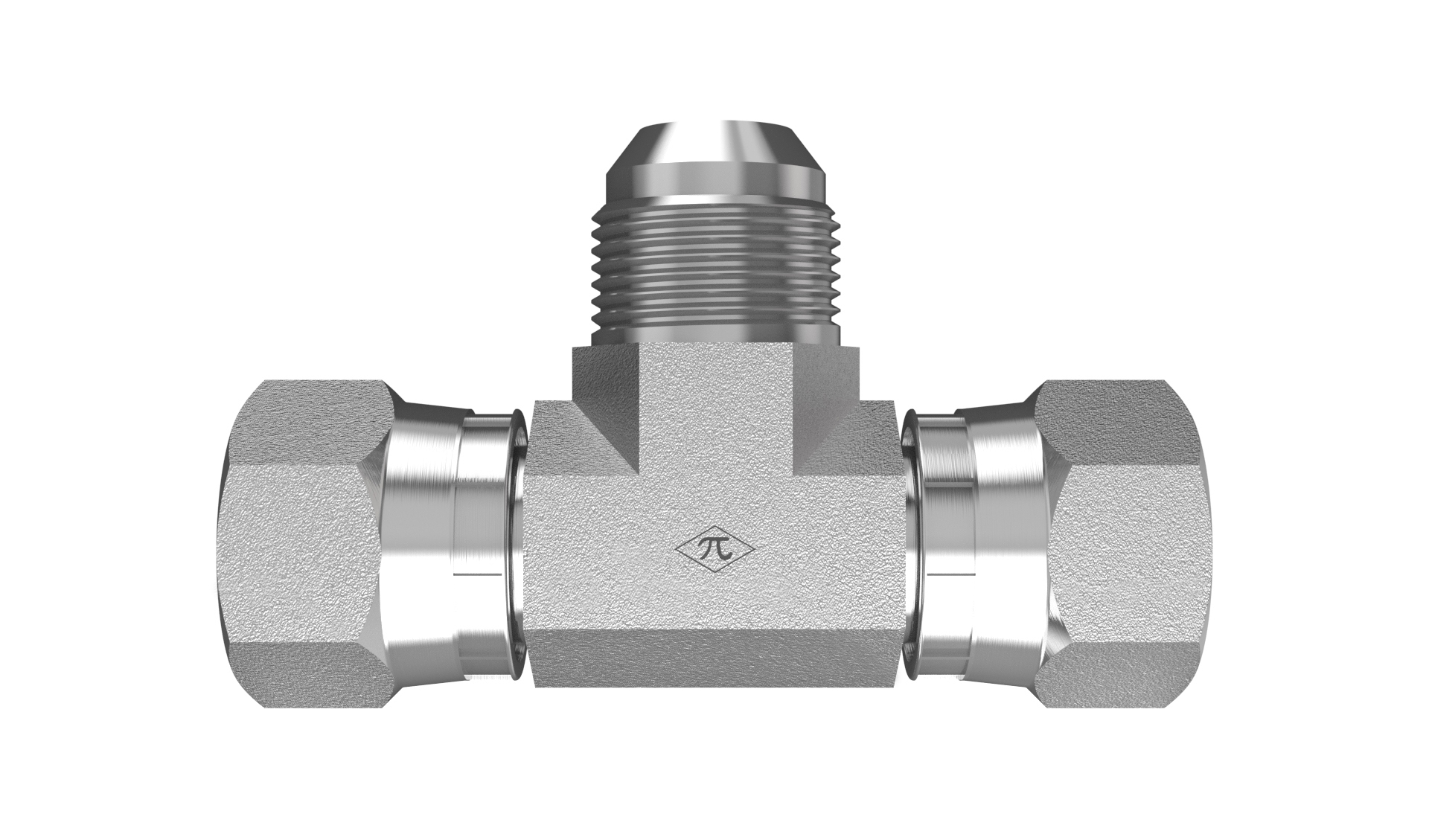

1/2" Female JIC Swivel x 1/2" Female JIC Swivel x 1/2" Male JIC

6603-08-08-08-FG is a 1/2" Female JIC Swivel x 1/2" Female JIC Swivel x 1/2" Male JIC in the 6603-FG Series. For joining two 37° flared lines at a tee branched off a male JIC connection.

  • Steel
  • Trivalent Zinc
  • Swivel Branch Tee
$6.32
(0) Write a Review
SKU:
6603-08-08-08-FG

Product Details

Connection A
TypeFemale JIC Swivel
Tube OD1/2"
StandardSAE J514 - Class 2B Thread
Thread Type3/4-16 UNF
Connection B
TypeFemale JIC Swivel
Tube OD1/2"
StandardSAE J514 - Class 2B Thread
Thread Type3/4-16 UNF
Connection C
TypeMale JIC
Tube OD1/2"
StandardSAE J514 - Class 2A Thread
Thread Type3/4-16 UNF
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeSwivel Branch Tee
Weight0.31 lb
Cross References

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
