HGW HYDRAULICS

6604-08-08-08-FG

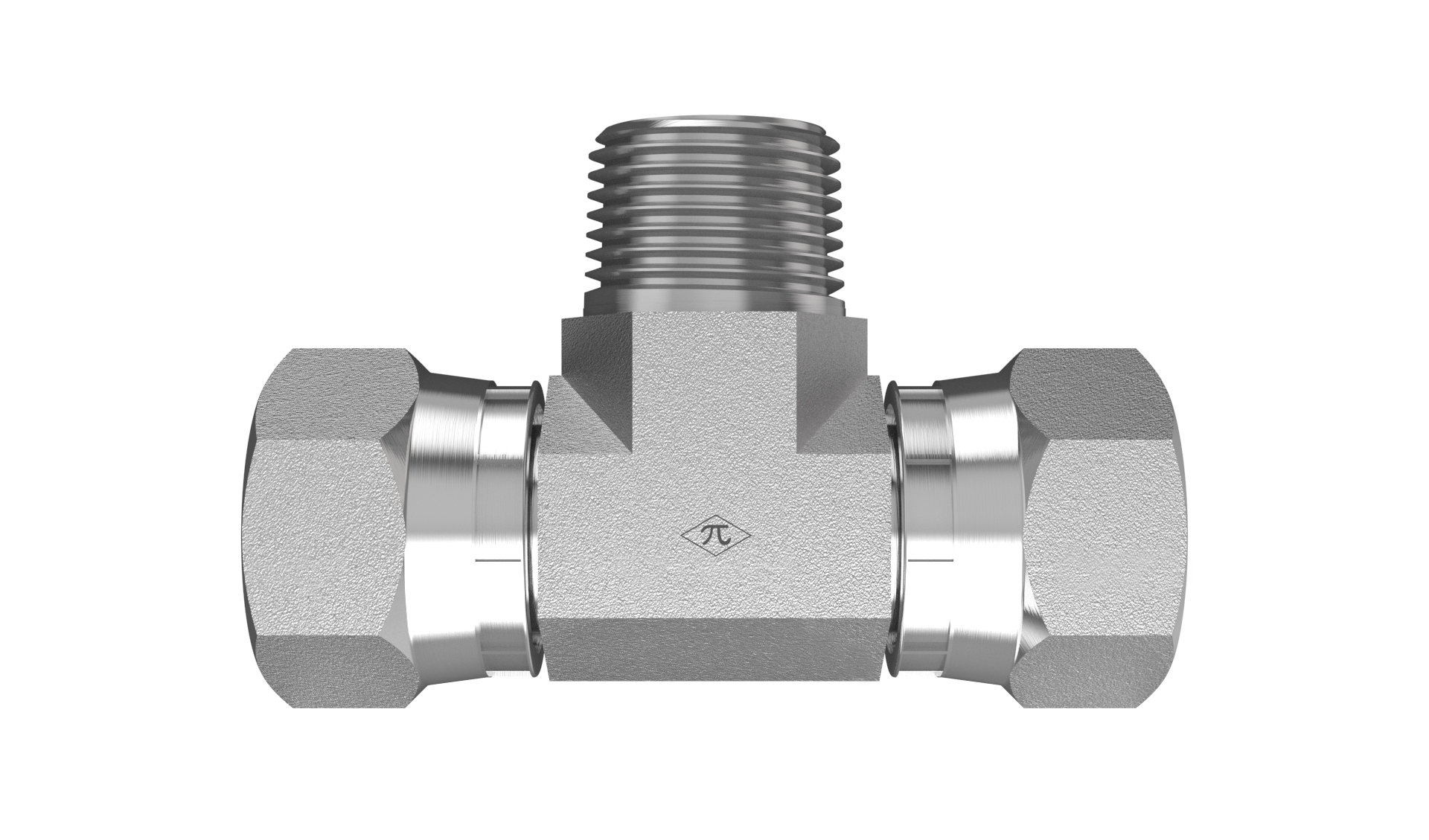

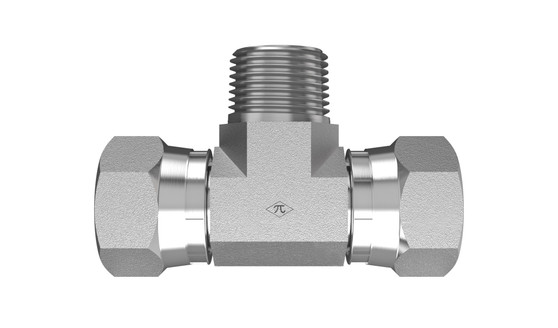

1/2" Female JIC Swivel x 1/2" Female JIC Swivel x 1/2" Male NPTF

6604-08-08-08-FG is a 1/2" Female JIC Swivel x 1/2" Female JIC Swivel x 1/2" Male NPTF in the 6604-FG Series. For branching two 37° flared lines off a male NPTF pipe connection.

  • Steel
  • Trivalent Zinc
  • Swivel Branch Tee
$61.04
(0) Write a Review
SKU:
6604-08-08-08-FG

Product Details

Connection A
TypeFemale JIC Swivel
Tube OD1/2"
StandardSAE J514 - Class 2B Thread
Thread Type3/4-16 UNF
Connection B
TypeFemale JIC Swivel
Tube OD1/2"
StandardSAE J514 - Class 2B Thread
Thread Type3/4-16 UNF
Connection C
TypeMale NPTF
Pipe Size1/2"
StandardSAE J476
Thread Type3/4-16 UNF
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeSwivel Branch Tee
Weight0.40 lb
Cross References

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
