HGW HYDRAULICS

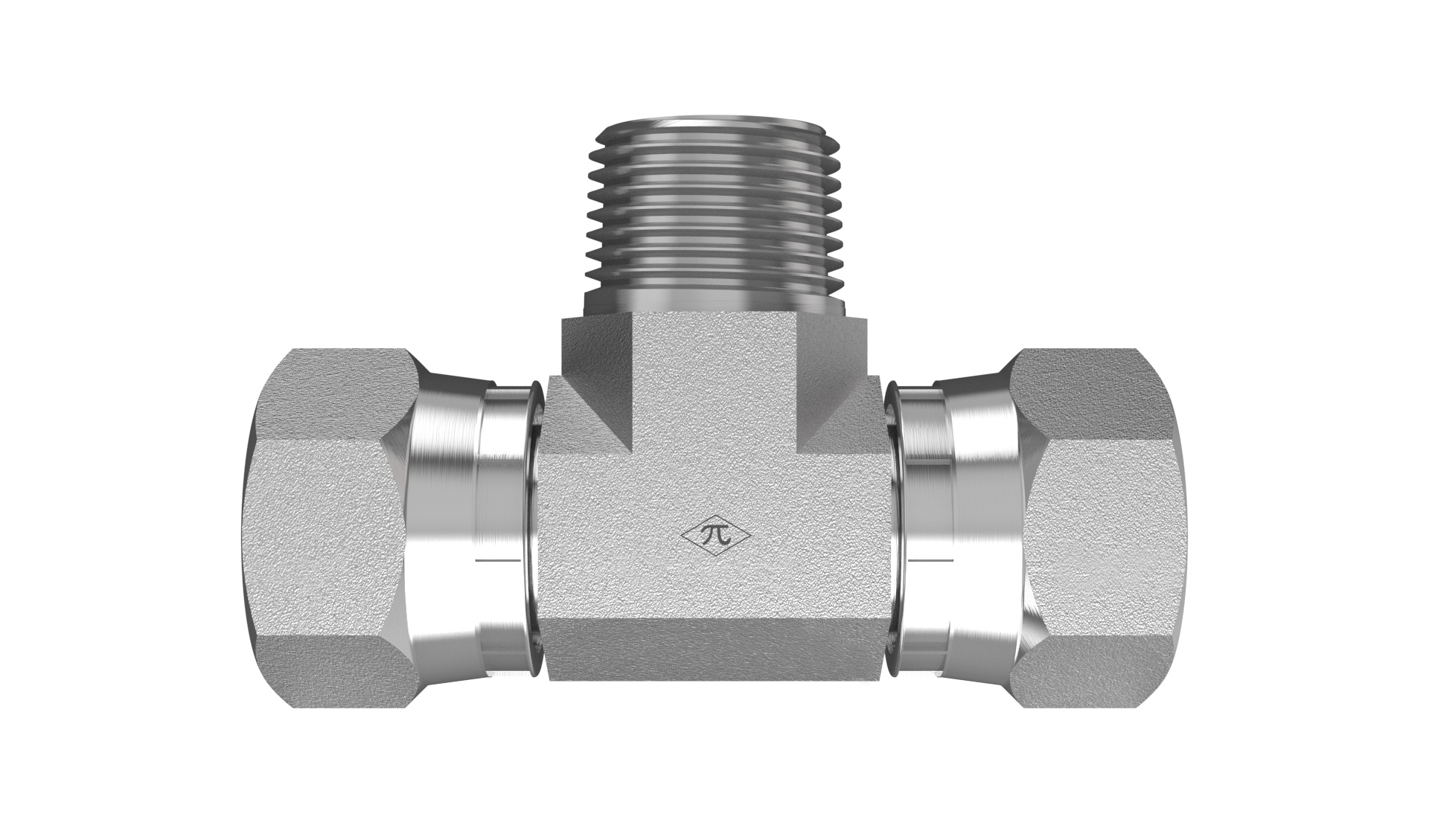

6604-32-32-32-FG

2" Female JIC Swivel x 2" Female JIC Swivel x 2" Male NPTF

6604-32-32-32-FG is a 2" Female JIC Swivel x 2" Female JIC Swivel x 2" Male NPTF in the 6604-FG Series. For branching two 37° flared lines off a male NPTF pipe connection.

  • Steel
  • Trivalent Zinc
  • Swivel Branch Tee
$275.41
(0) Write a Review
SKU:
6604-32-32-32-FG

Product Details

Connection A
TypeFemale JIC Swivel
Tube OD2"
StandardSAE J514 - Class 2B Thread
Thread Type2-1/2-12 UN
Connection B
TypeFemale JIC Swivel
Tube OD2"
StandardSAE J514 - Class 2B Thread
Thread Type2-1/2-12 UN
Connection C
TypeMale NPTF
Pipe Size2"
StandardSAE J476
Thread Type2-1/2-12 UN
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeSwivel Branch Tee
Weight2.16 lb
Cross References

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
