HGW HYDRAULICS

6606-04-04-04-SS

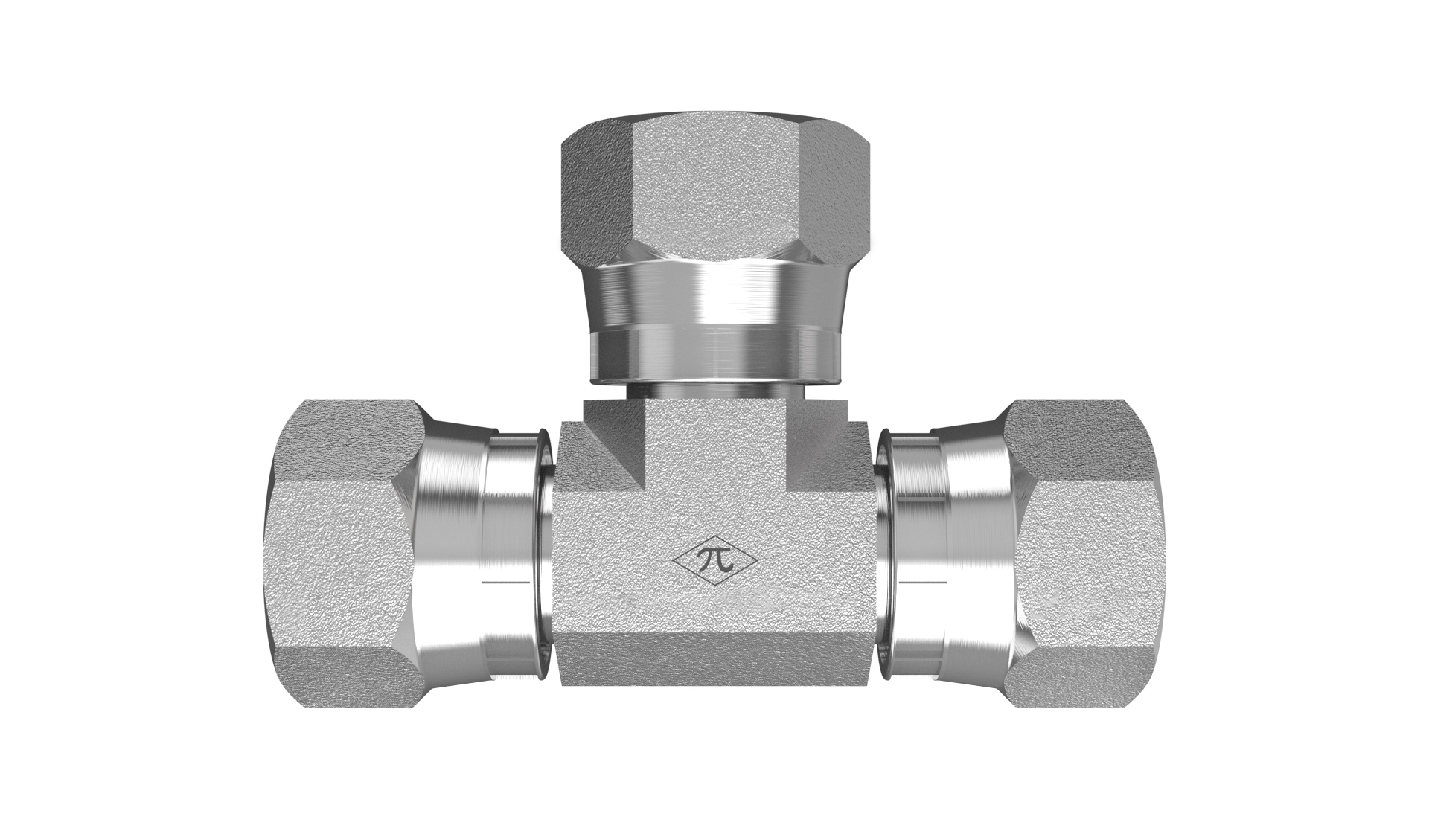

1/4" Female JIC Swivel x 1/4" Female JIC Swivel x 1/4" Female JIC Swivel

6606-04-04-04-SS is a 1/4" Female JIC Swivel x 1/4" Female JIC Swivel x 1/4" Female JIC Swivel in the 6606-FG Series. For joining three 37° flared lines at a tee with all swivel ends.

  • Stainless Steel
  • Swivel Union Tee
  • None
$117.74
(0) Write a Review
SKU:
6606-04-04-04-SS

Product Details

Connection A
TypeFemale JIC Swivel
Tube OD1/4"
StandardSAE J514 - Class 2B Thread
Thread Type7/16-20 UNF
Connection B
TypeFemale JIC Swivel
Tube OD1/4"
StandardSAE J514 - Class 2B Thread
Thread Type7/16-20 UNF
Connection C
TypeFemale JIC Swivel
Tube OD1/4"
StandardSAE J514 - Class 2B Thread
Thread Type7/16-20 UNF
Connection D
Specifications
MaterialStainless Steel
ShapeSwivel Union Tee
Weight0.12 lb
PlatingNone
Cross References
Parker4 J6X-SS

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
