6606-05-05-05-FG

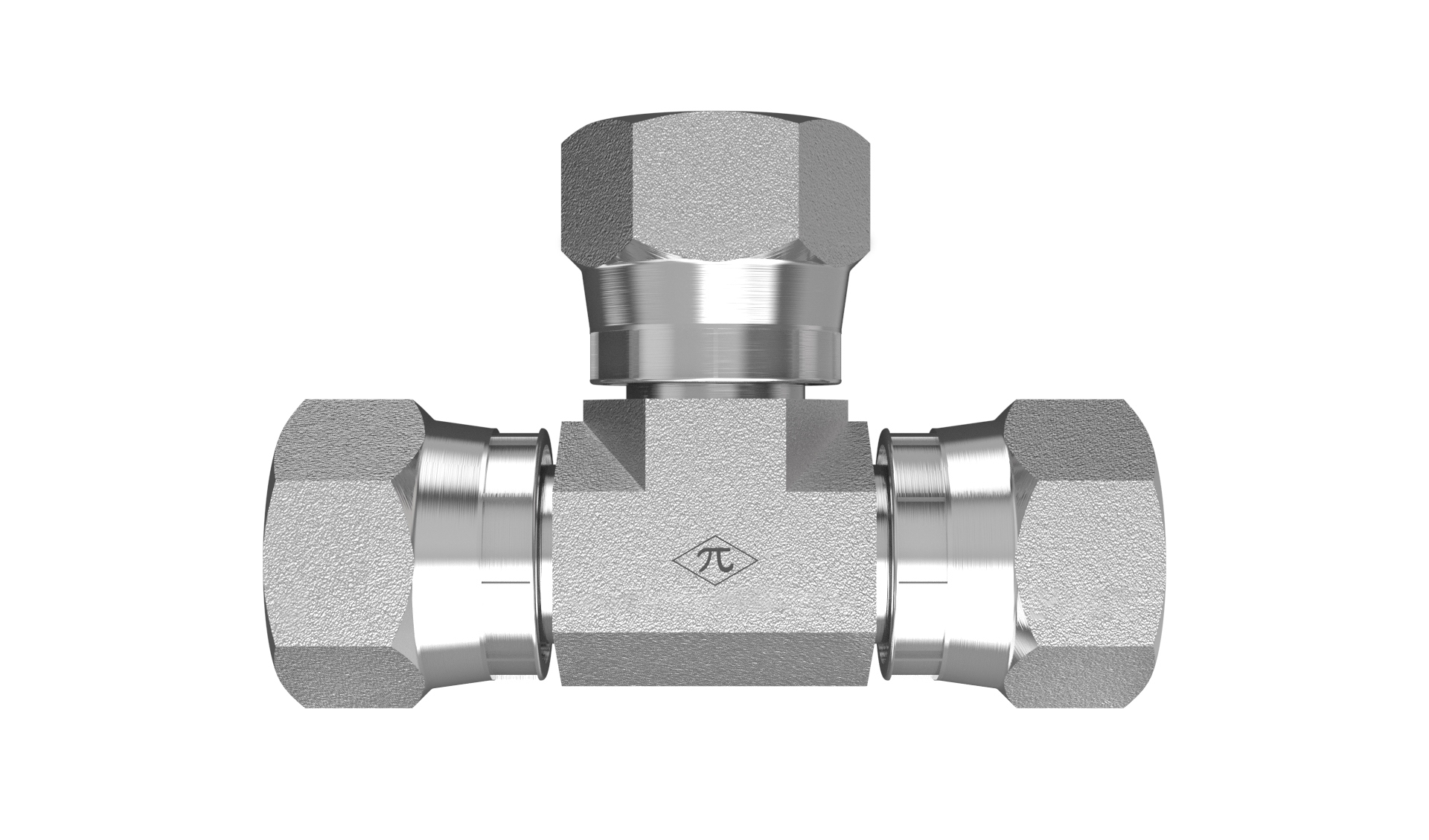

5/16" Female JIC Swivel x 5/16" Female JIC Swivel x 5/16" Female JIC Swivel

6606-05-05-05-FG is a 5/16" Female JIC Swivel x 5/16" Female JIC Swivel x 5/16" Female JIC Swivel in the 6606-FG Series. For joining three 37° flared lines at a tee with all swivel ends.

  • Steel
  • Trivalent Zinc
  • Swivel Union Tee
$73.78
(0) Write a Review
SKU:
6606-05-05-05-FG

Product Details

Connection A
TypeFemale JIC Swivel
Tube OD5/16"
StandardSAE J514 - Class 2B Thread
Thread Type1/2-20 UNF
Connection B
TypeFemale JIC Swivel
Tube OD5/16"
StandardSAE J514 - Class 2B Thread
Thread Type1/2-20 UNF
Connection C
TypeFemale JIC Swivel
Tube OD5/16"
StandardSAE J514 - Class 2B Thread
Thread Type1/2-20 UNF
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeSwivel Union Tee
Weight0.15 lb
Cross References

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
