HGW HYDRAULICS

6606-08-08-08

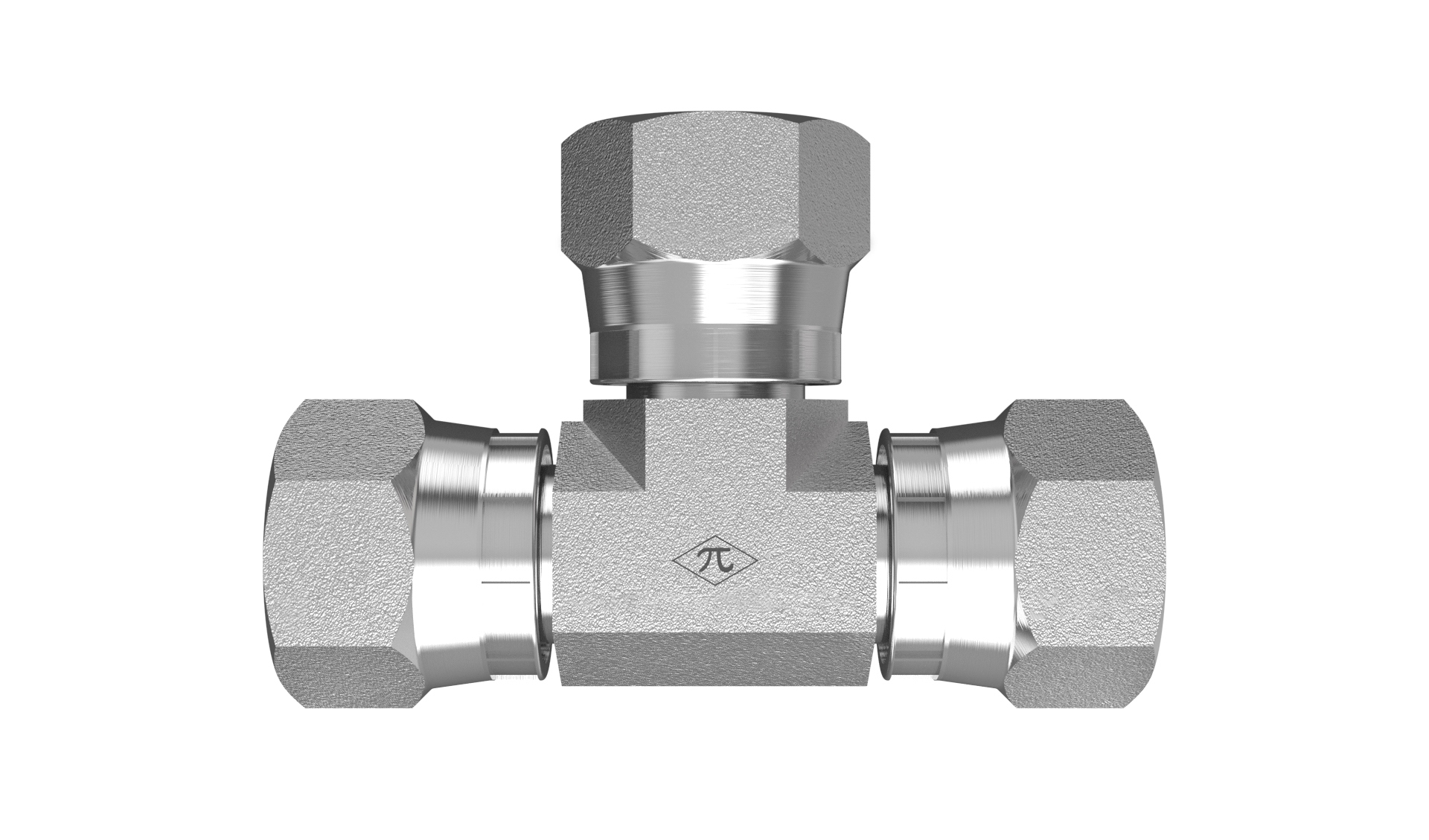

1/2" Female JIC 37° Swivel × 1/2" Female JIC 37° Swivel × 1/2" Female JIC 37° Swivel · Swivel Union Tee

The HGW 6606-08-08-08-FG is a swivel union tee joining 1/2" female JIC 37° swivel connections across all 3 ports. Made from trivalent-zinc-plated steel, it uses SAE J514 interfaces for compatible hydraulic applications.

  • Steel
  • Trivalent Zinc
  • Swivel Union Tee
$24.78
(0) Write a Review
SKU:
6606-08-08-08

Product Details

Connection A
TypeFemale JIC 37° Swivel
Tube Size1/2"
StandardSAE J514 · Class 2B Thread
Thread3/4-16
Connection B
TypeFemale JIC 37° Swivel
Tube Size1/2"
StandardSAE J514 · Class 2B Thread
Thread3/4-16
Connection C
TypeFemale JIC 37° Swivel
Tube Size1/2"
StandardSAE J514 · Class 2B Thread
Thread3/4-16
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeSwivel Union Tee
Weight0.33 lb
Cross References
Parker8 JX6-S

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
