HGW HYDRAULICS

6606-10-10-10

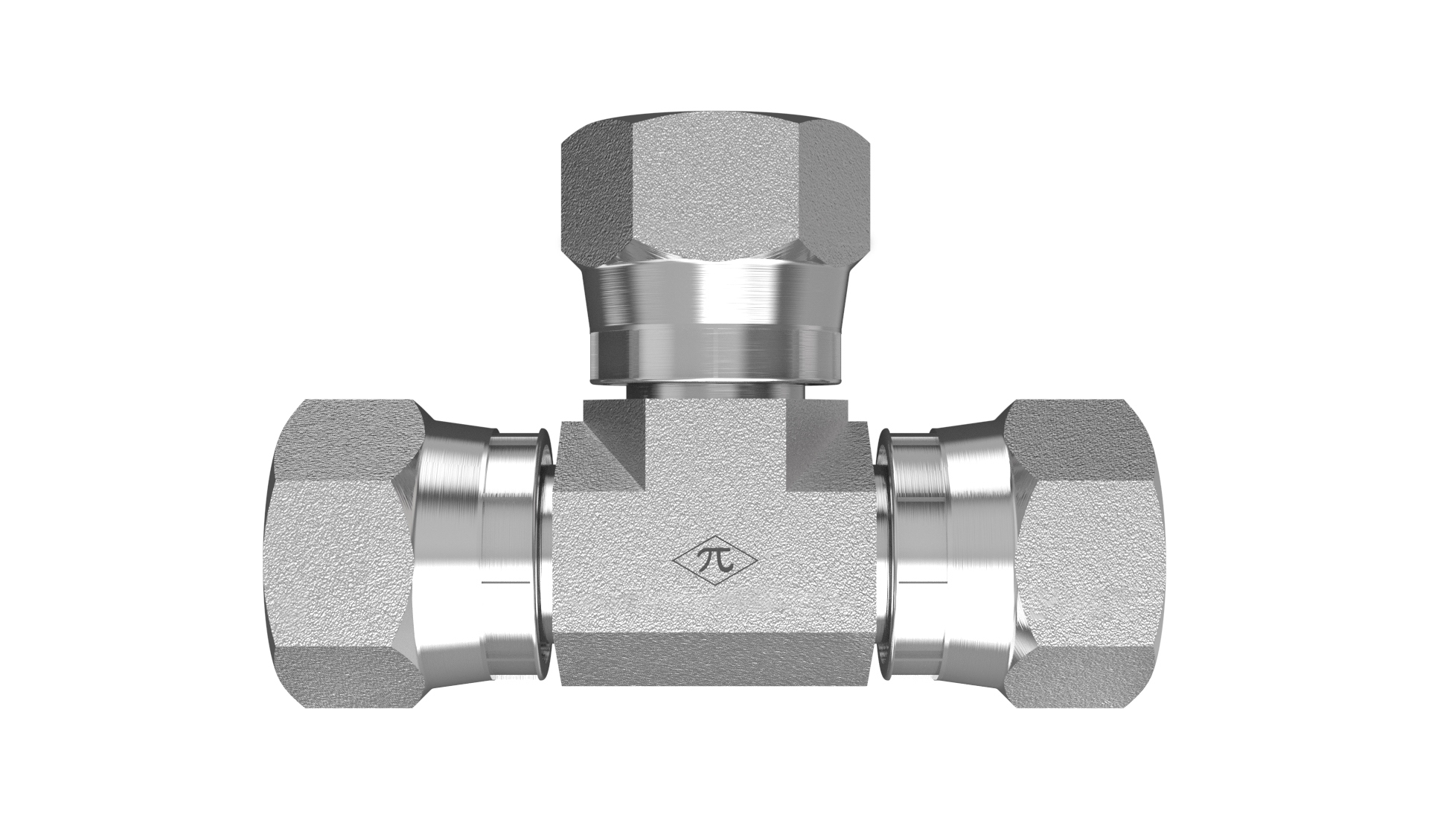

5/8" Female JIC 37° Swivel × 5/8" Female JIC 37° Swivel × 5/8" Female JIC 37° Swivel · Swivel Union Tee

The HGW 6606-10-10-10-FG is a swivel union tee joining 5/8" female JIC 37° swivel connections across all 3 ports. Made from trivalent-zinc-plated steel, it uses SAE J514 interfaces for compatible hydraulic applications.

  • Steel
  • Trivalent Zinc
  • Swivel Union Tee
$59.11
(0) Write a Review
SKU:
6606-10-10-10

Product Details

Connection A
TypeFemale JIC 37° Swivel
Tube Size5/8"
StandardSAE J514 · Class 2B Thread
Thread7/8-14
Connection B
TypeFemale JIC 37° Swivel
Tube Size5/8"
StandardSAE J514 · Class 2B Thread
Thread7/8-14
Connection C
TypeFemale JIC 37° Swivel
Tube Size5/8"
StandardSAE J514 · Class 2B Thread
Thread7/8-14
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeSwivel Union Tee
Weight0.48 lb
Cross References
Parker10 J6X-S

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
