HGW HYDRAULICS

6606-12-12-12-SS

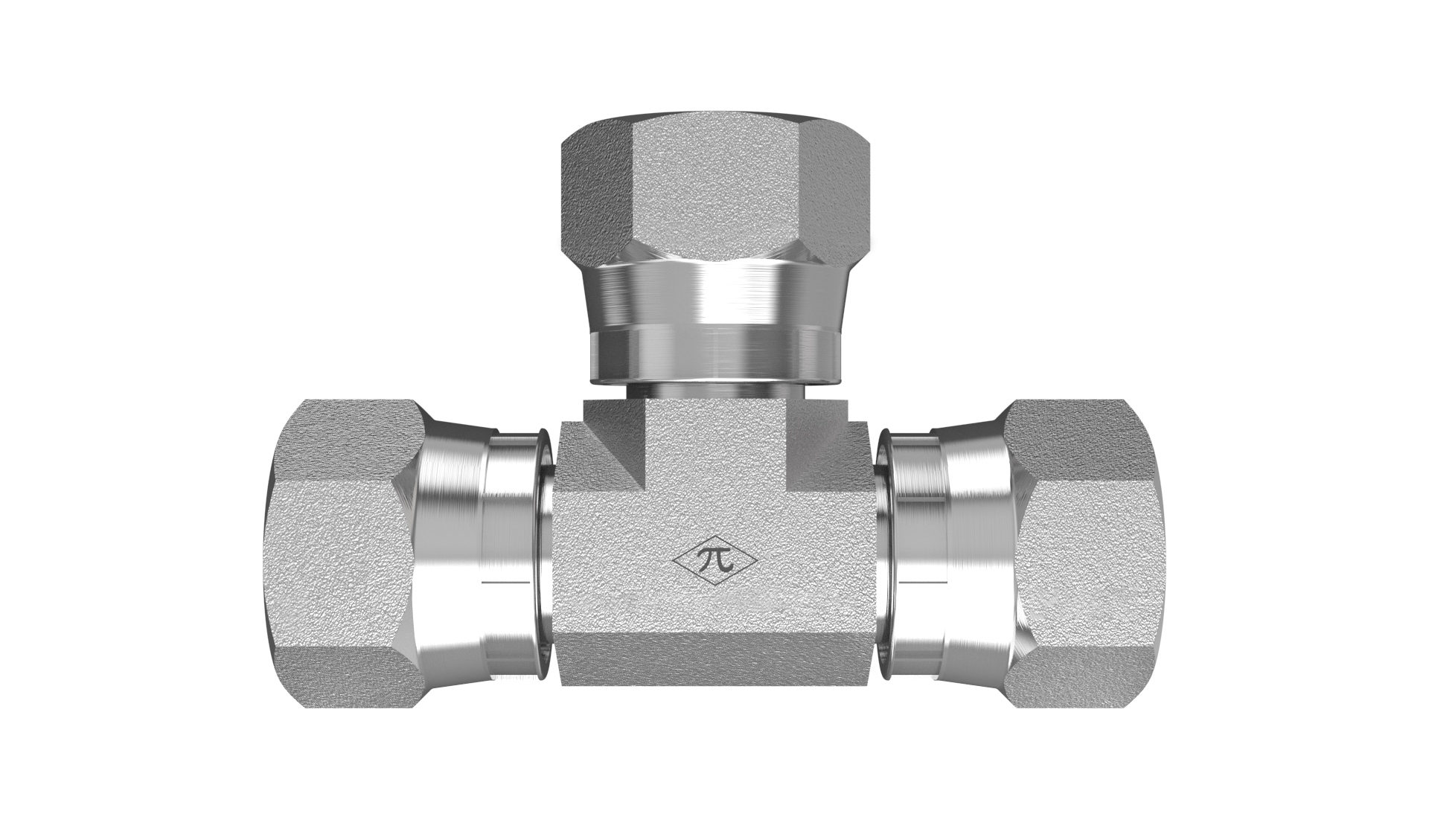

3/4" Female JIC 37° Swivel × 3/4" Female JIC 37° Swivel × 3/4" Female JIC 37° Swivel · Swivel Union Tee

The HGW 6606-12-12-12-SS is a swivel union tee joining 3/4" female JIC 37° swivel connections across all 3 ports. Made from stainless steel, it uses SAE J514 interfaces for compatible hydraulic applications.

  • Stainless Steel
  • Swivel Union Tee
$242.52
(0) Write a Review
SKU:
6606-12-12-12-SS

Product Details

Connection A
TypeFemale JIC 37° Swivel
Tube Size3/4"
StandardSAE J514 · Class 2B Thread
Thread1-1/16-12
Connection B
TypeFemale JIC 37° Swivel
Tube Size3/4"
StandardSAE J514 · Class 2B Thread
Thread1-1/16-12
Connection C
TypeFemale JIC 37° Swivel
Tube Size3/4"
StandardSAE J514 · Class 2B Thread
Thread1-1/16-12
Connection D
Specifications
MaterialStainless Steel
ShapeSwivel Union Tee
Weight0.82 lb
Cross References
Parker12 J6X-SS

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
