HGW HYDRAULICS

6606-16-16-16-SS

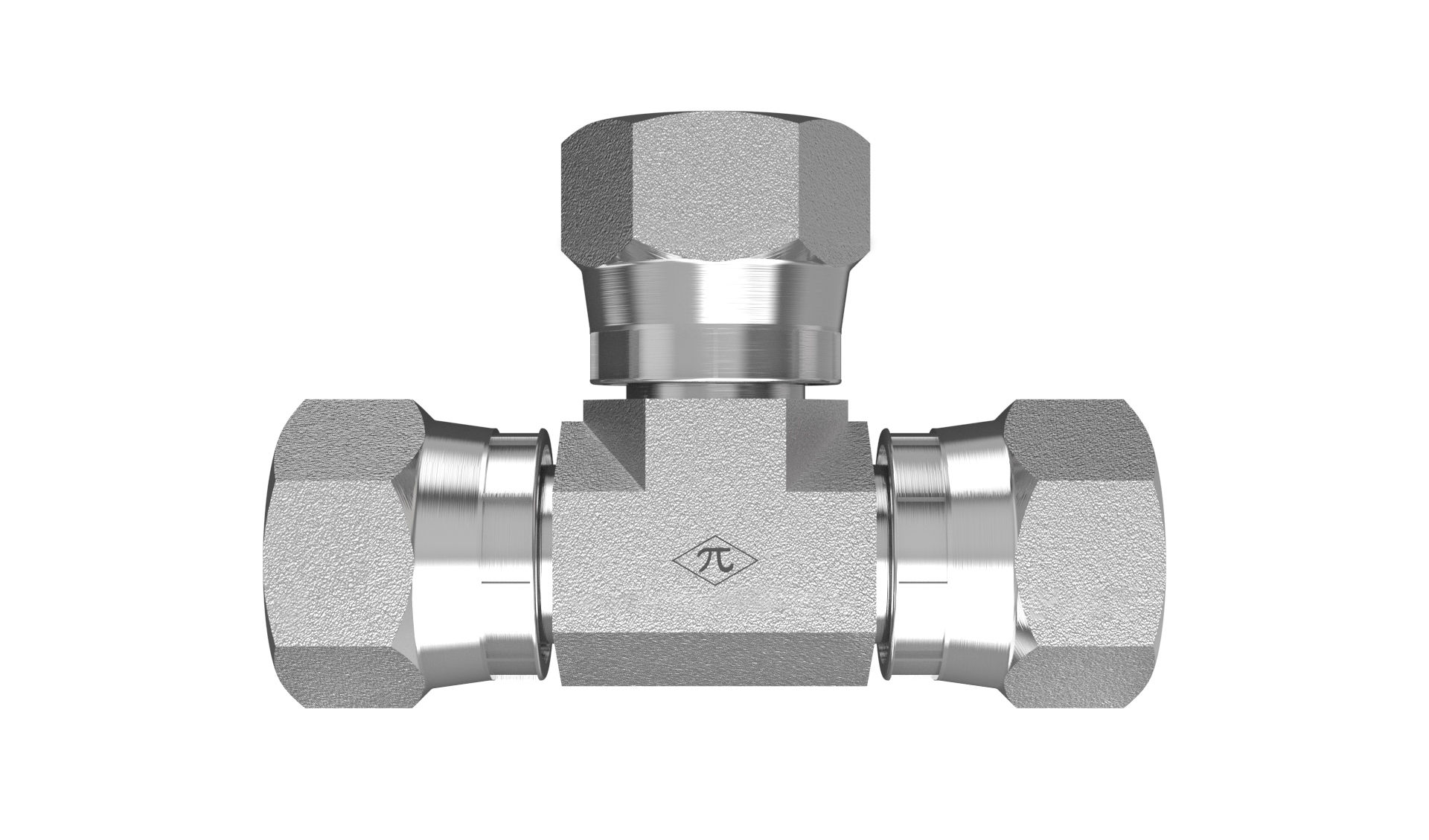

1" Female JIC Swivel x 1" Female JIC Swivel x 1" Female JIC Swivel

6606-16-16-16-SS is a 1" Female JIC Swivel x 1" Female JIC Swivel x 1" Female JIC Swivel in the 6606-FG Series. For joining three 37° flared lines at a tee with all swivel ends.

  • Stainless Steel
  • Swivel Union Tee
  • None
$868.82
(0) Write a Review
SKU:
6606-16-16-16-SS

Product Details

Connection A
TypeFemale JIC Swivel
Tube OD1"
StandardSAE J514 - Class 2B Thread
Thread Type1-5/16-12 UN
Connection B
TypeFemale JIC Swivel
Tube OD1"
StandardSAE J514 - Class 2B Thread
Thread Type1-5/16-12 UN
Connection C
TypeFemale JIC Swivel
Tube OD1"
StandardSAE J514 - Class 2B Thread
Thread Type1-5/16-12 UN
Connection D
Specifications
MaterialStainless Steel
ShapeSwivel Union Tee
Weight1.23 lb
PlatingNone
Cross References
Parker16 J6X-SS

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
