HGW HYDRAULICS

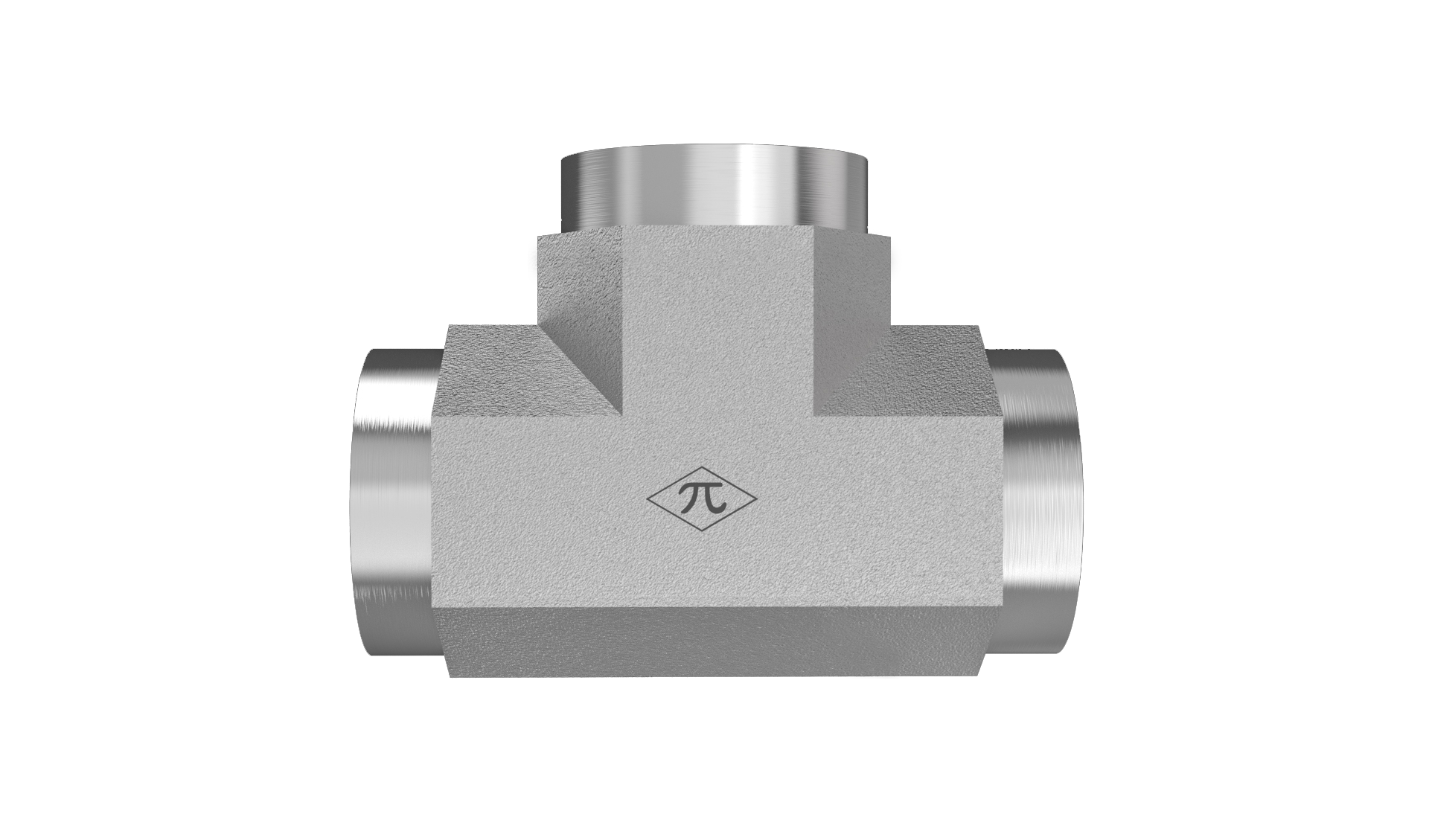

6660-04-04-04-FG

7/16-20 Female ORB x 7/16-20 Female ORB x 7/16-20 Female ORB

6660-04-04-04-FG is a 7/16-20 Female ORB x 7/16-20 Female ORB x 7/16-20 Female ORB in the 6660-FG Series. For joining three SAE O-Ring Boss ports at a tee.

  • Steel
  • Trivalent Zinc
  • Union Tee
$33.08
(0) Write a Review

Product Details

Connection A
TypeFemale ORB
Port Size7/16-20
StandardSAE J1926
Thread Type7/16-20 UNF
Connection B
TypeFemale ORB
Port Size7/16-20
StandardSAE J1926
Thread Type7/16-20 UNF
Connection C
TypeFemale ORB
Port Size7/16-20
StandardSAE J1926
Thread Type7/16-20 UNF
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeUnion Tee
Weight0.17 lb
Cross References
Parker4 G5G5JG5-S

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
