HGW HYDRAULICS

6660-06-06-06-FG

9/16-18 Female ORB x 9/16-18 Female ORB x 9/16-18 Female ORB

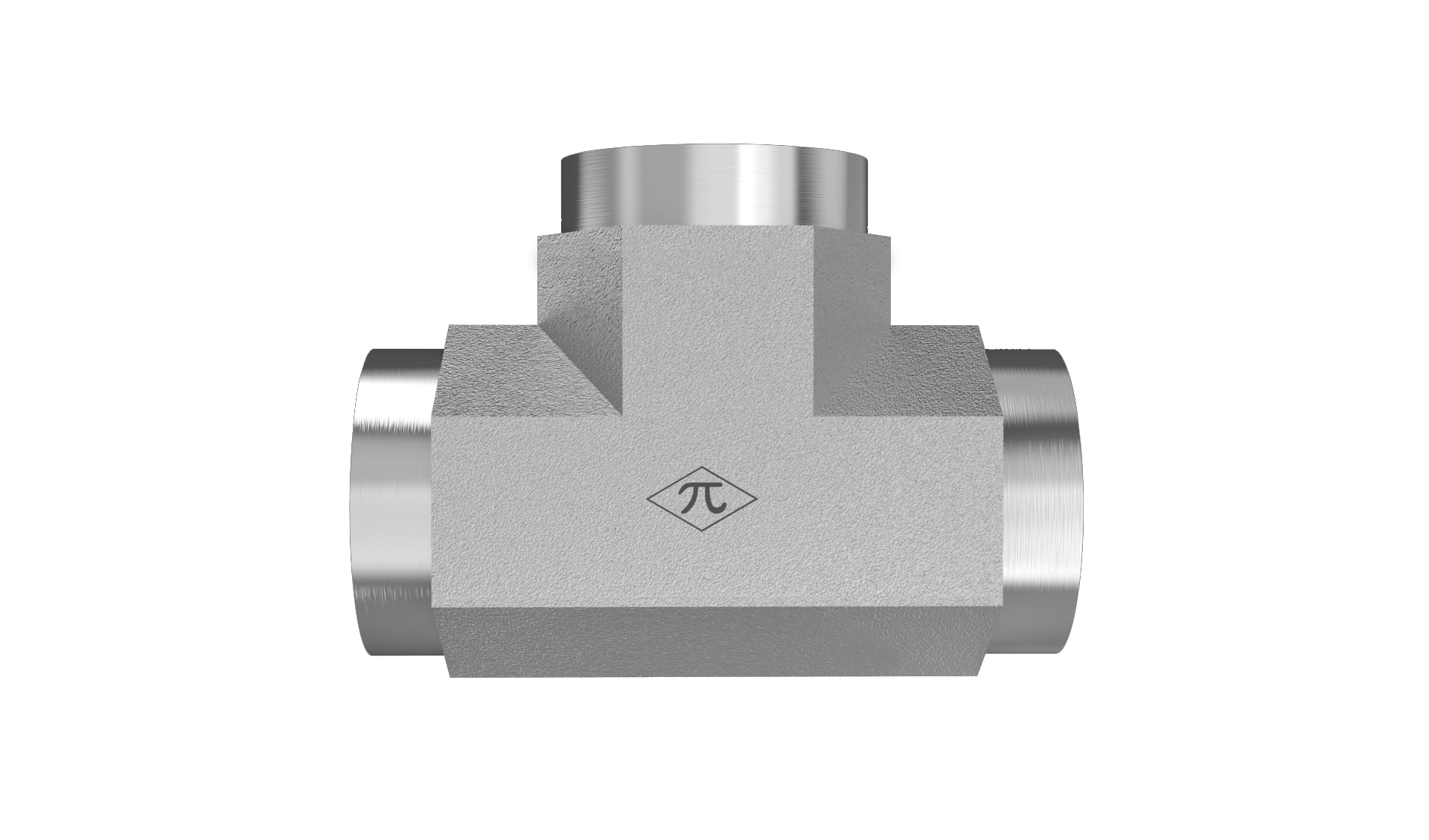

6660-06-06-06-FG is a 9/16-18 Female ORB x 9/16-18 Female ORB x 9/16-18 Female ORB in the 6660-FG Series. For joining three SAE O-Ring Boss ports at a tee.

  • Steel
  • Trivalent Zinc
  • Union Tee
$39.93
(0) Write a Review

Product Details

Connection A
TypeFemale ORB
Port Size9/16-18
StandardSAE J1926
Thread Type9/16-18 UNF
Connection B
TypeFemale ORB
Port Size9/16-18
StandardSAE J1926
Thread Type9/16-18 UNF
Connection C
TypeFemale ORB
Port Size9/16-18
StandardSAE J1926
Thread Type9/16-18 UNF
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeUnion Tee
Weight0.15 lb
Cross References
Parker6 G5G5JG5-S

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
