HGW HYDRAULICS

6660-06-06-06-SS

9/16-18 Female ORB x 9/16-18 Female ORB x 9/16-18 Female ORB

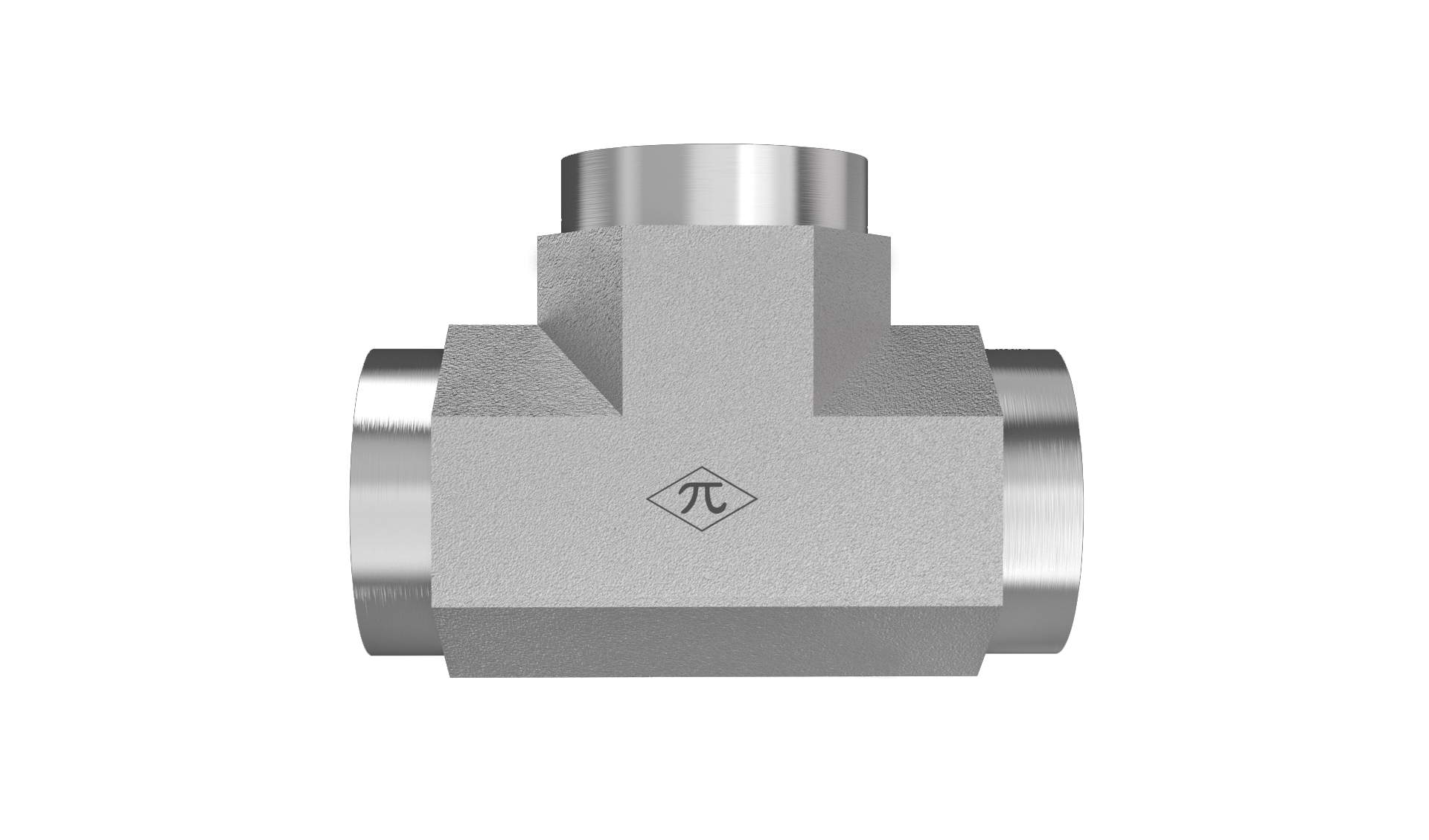

6660-06-06-06-SS is a 9/16-18 Female ORB x 9/16-18 Female ORB x 9/16-18 Female ORB in the 6660-FG Series. For joining three SAE O-Ring Boss ports at a tee.

  • Stainless Steel
  • Union Tee
  • None
$345.16
(0) Write a Review

Product Details

Connection A
TypeFemale ORB
Port Size9/16-18
StandardSAE J1926
Thread Type9/16-18 UNF
Connection B
TypeFemale ORB
Port Size9/16-18
StandardSAE J1926
Thread Type9/16-18 UNF
Connection C
TypeFemale ORB
Port Size9/16-18
StandardSAE J1926
Thread Type9/16-18 UNF
Connection D
Specifications
MaterialStainless Steel
ShapeUnion Tee
Weight0.15 lb
PlatingNone
Cross References
Parker6 G5G5JG5-SS

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
