HGW HYDRAULICS

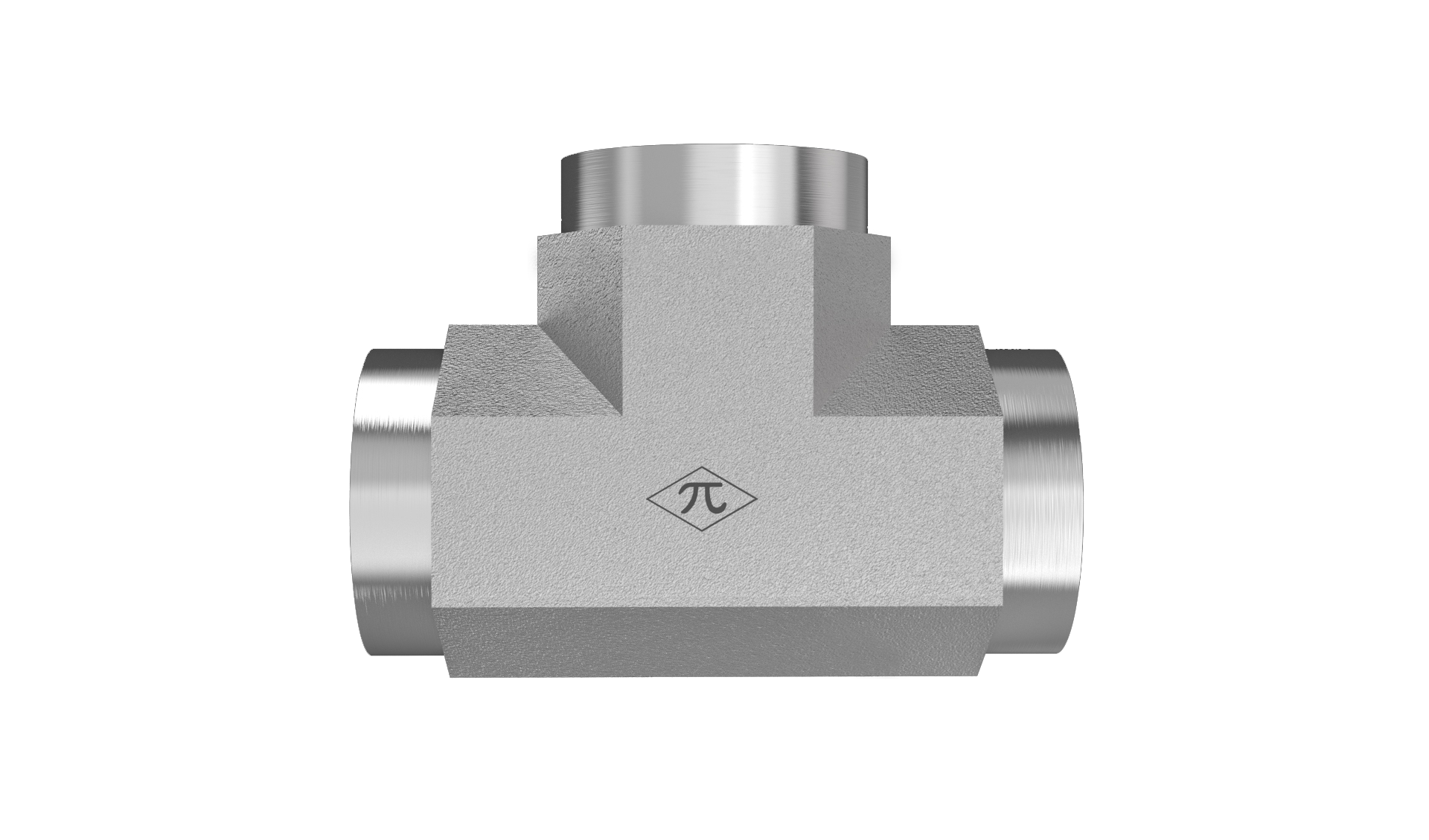

6660-12-12-12-FG

1-1/16-12 Female ORB x 1-1/16-12 Female ORB x 1-1/16-12 Female ORB

6660-12-12-12-FG is a 1-1/16-12 Female ORB x 1-1/16-12 Female ORB x 1-1/16-12 Female ORB in the 6660-FG Series. For joining three SAE O-Ring Boss ports at a tee.

  • Steel
  • Trivalent Zinc
  • Union Tee
$94.98
(0) Write a Review

Product Details

Connection A
TypeFemale ORB
Port Size1-1/16-12
StandardSAE J1926
Thread Type1-1/16-12 UN
Connection B
TypeFemale ORB
Port Size1-1/16-12
StandardSAE J1926
Thread Type1-1/16-12 UN
Connection C
TypeFemale ORB
Port Size1-1/16-12
StandardSAE J1926
Thread Type1-1/16-12 UN
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeUnion Tee
Weight0.62 lb
Cross References
Parker12 G5G5JG5-S

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
