HGW HYDRAULICS

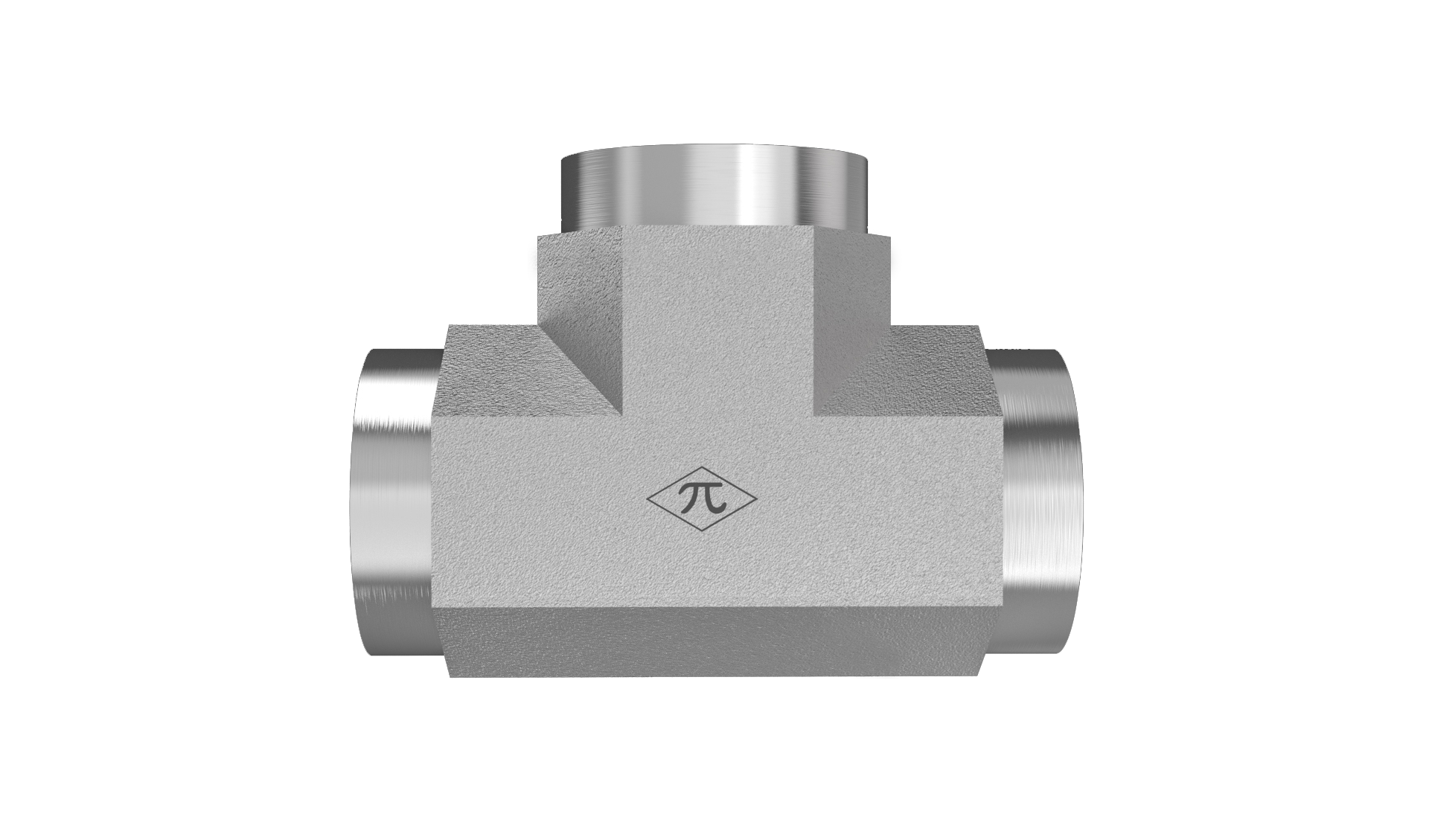

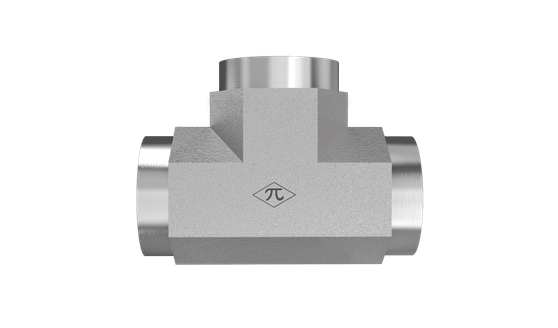

6660-16-16-16-FG

1-5/16-12 Female ORB x 1-5/16-12 Female ORB x 1-5/16-12 Female ORB

6660-16-16-16-FG is a 1-5/16-12 Female ORB x 1-5/16-12 Female ORB x 1-5/16-12 Female ORB in the 6660-FG Series. For joining three SAE O-Ring Boss ports at a tee.

  • Steel
  • Trivalent Zinc
  • Union Tee
$115.42
(0) Write a Review

Product Details

Connection A
TypeFemale ORB
Port Size1-5/16-12
StandardSAE J1926
Thread Type1-5/16-12 UN
Connection B
TypeFemale ORB
Port Size1-5/16-12
StandardSAE J1926
Thread Type1-5/16-12 UN
Connection C
TypeFemale ORB
Port Size1-5/16-12
StandardSAE J1926
Thread Type1-5/16-12 UN
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeUnion Tee
Weight1.07 lb
Cross References
Parker16 G5G5JG5-S

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
