6802-05-05-NWO-FG

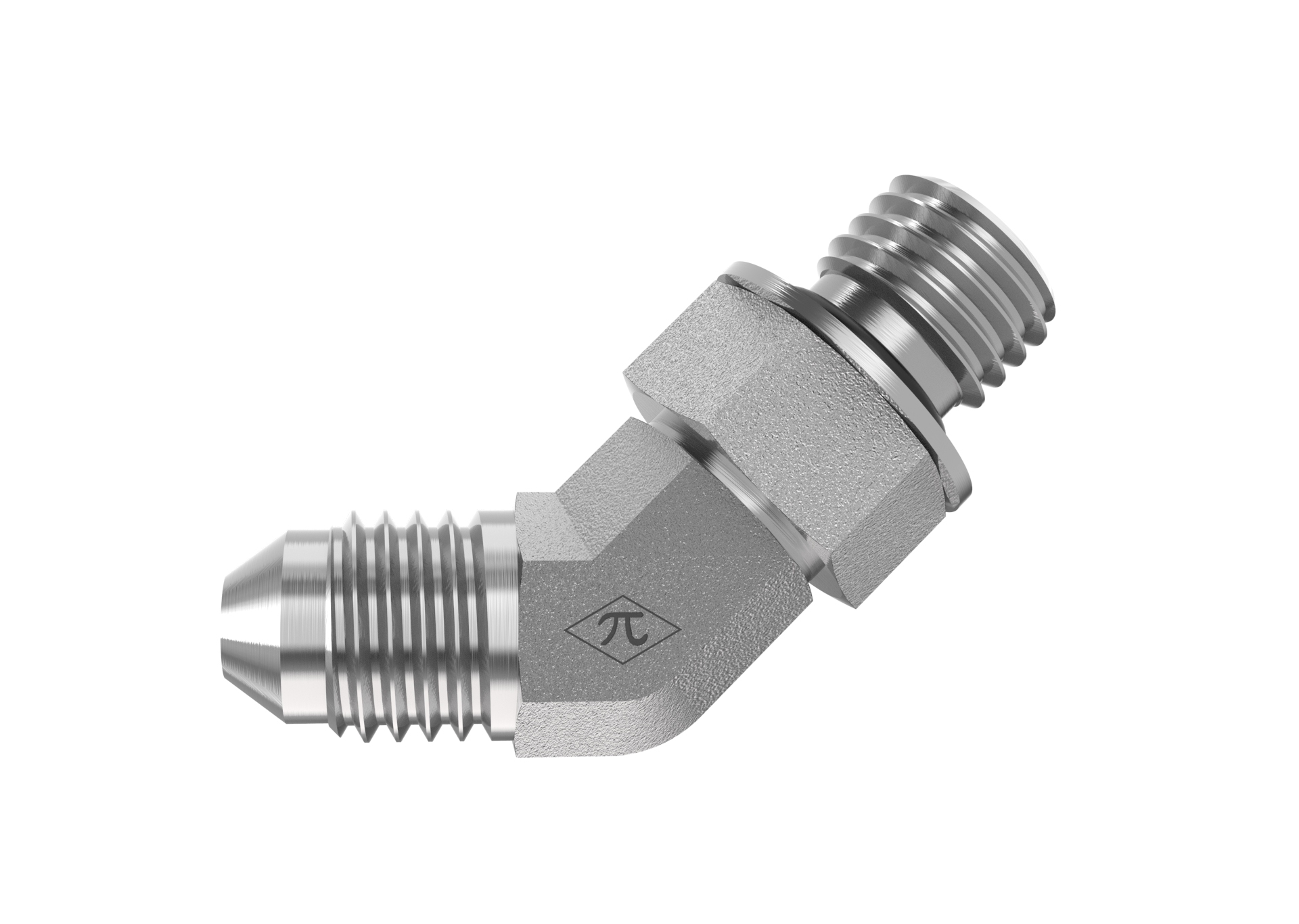

5/16" Male JIC x 1/2-20 Male Adjustable O-Ring Boss

6802-05-05-NWO-FG is a 5/16" Male JIC x 1/2-20 Male Adjustable O-Ring Boss in the 6802-NWO-FG Series. For connecting 37° flared tubes or lines to an O-ring boss port at a 45° angle.

  • Steel
  • Trivalent Zinc
  • Adjustable Elbow
$6.17
(0) Write a Review
SKU:
6802-05-05-NWO-FG

Product Details

Connection A
TypeMale JIC
Tube OD5/16"
StandardSAE J514 - Class 2A Thread
Thread Type1/2-20 UNF
Connection B
TypeMale Adjustable O-Ring Boss
Port Size1/2-20
StandardSAE J1453 / J514
Thread Type1/2-20 UNF
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeAdjustable Elbow
Weight0.09 lb
Cross References
Aeroquip2061-5-5S
Parker5 V5OX-S
SAE Ref.SAE J514 5-5 070320CN

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
