HGW HYDRAULICS

6802-16-14

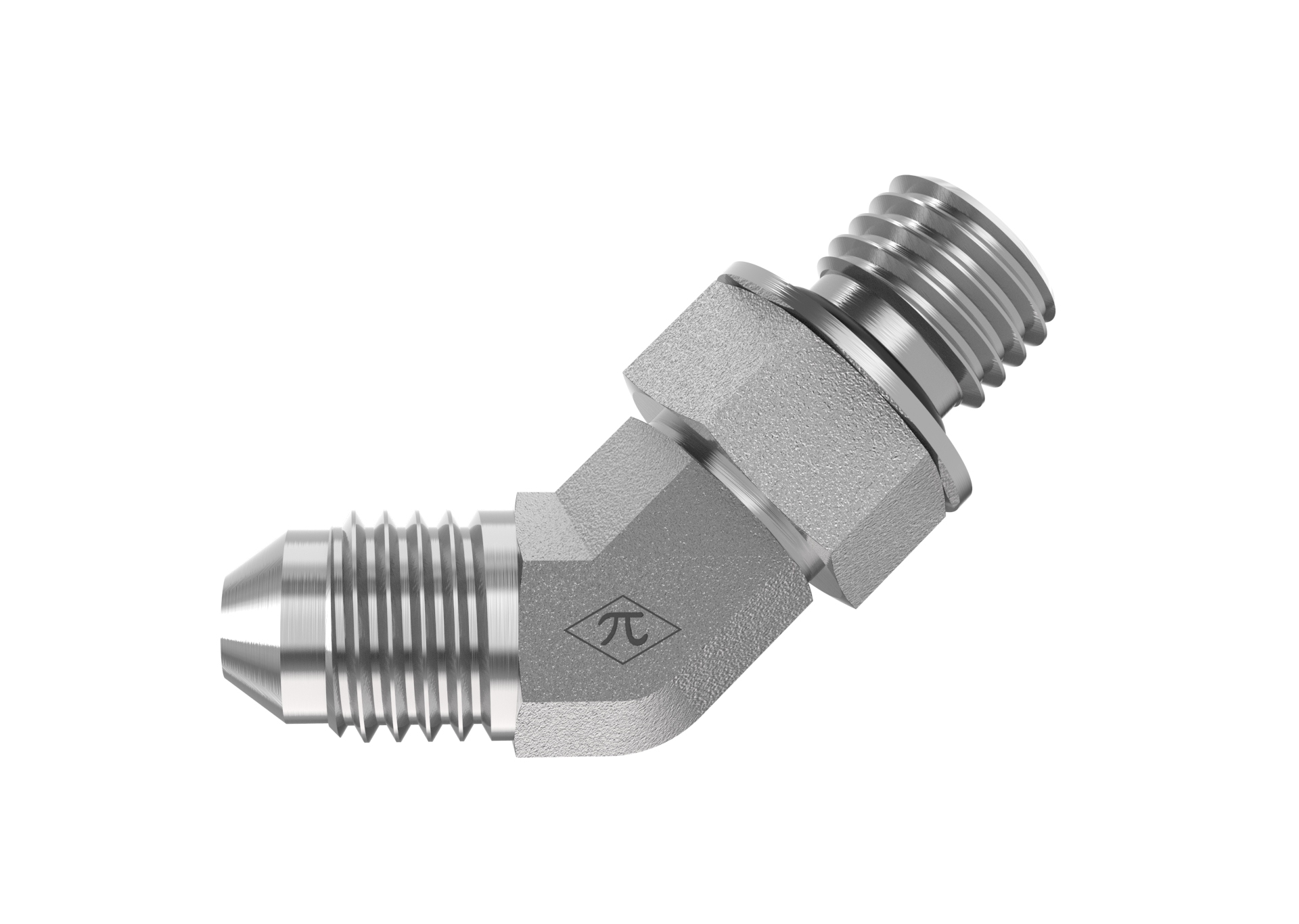

1" Male JIC 37° Flare × 1-3/16-12 Male Adjustable O-Ring Boss · Adjustable Elbow

The HGW 6802-16-14-NWO-FG is an adjustable elbow joining 1" male JIC 37° flare to 1-3/16-12 male adjustable o-ring boss. Made from trivalent-zinc-plated steel, it uses SAE J514 and SAE J1453 interfaces for compatible hydraulic applications.

  • Steel
  • Trivalent Zinc
  • Adjustable Elbow
$50.21
(0) Write a Review
SKU:
6802-16-14

Product Details

Connection A
TypeMale JIC 37° Flare
Tube OD1"
StandardSAE J514 · Class 2A Thread
Thread Type1-5/16-12 UN
Connection B
TypeMale Adjustable O-Ring Boss
Port Size1-3/16-12
StandardSAE J1453 / J514
Thread Type1-5/16-12 UN
Size1-3/16-12
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeAdjustable Elbow
Weight0.76 lb
Cross References
Aeroquip2061-14-16S
Parker16-14 V5OX-S
SAE Ref.SAE J514 16-14 070320CN

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
