HGW HYDRAULICS

6802-16-16-NWO-FG-VITON

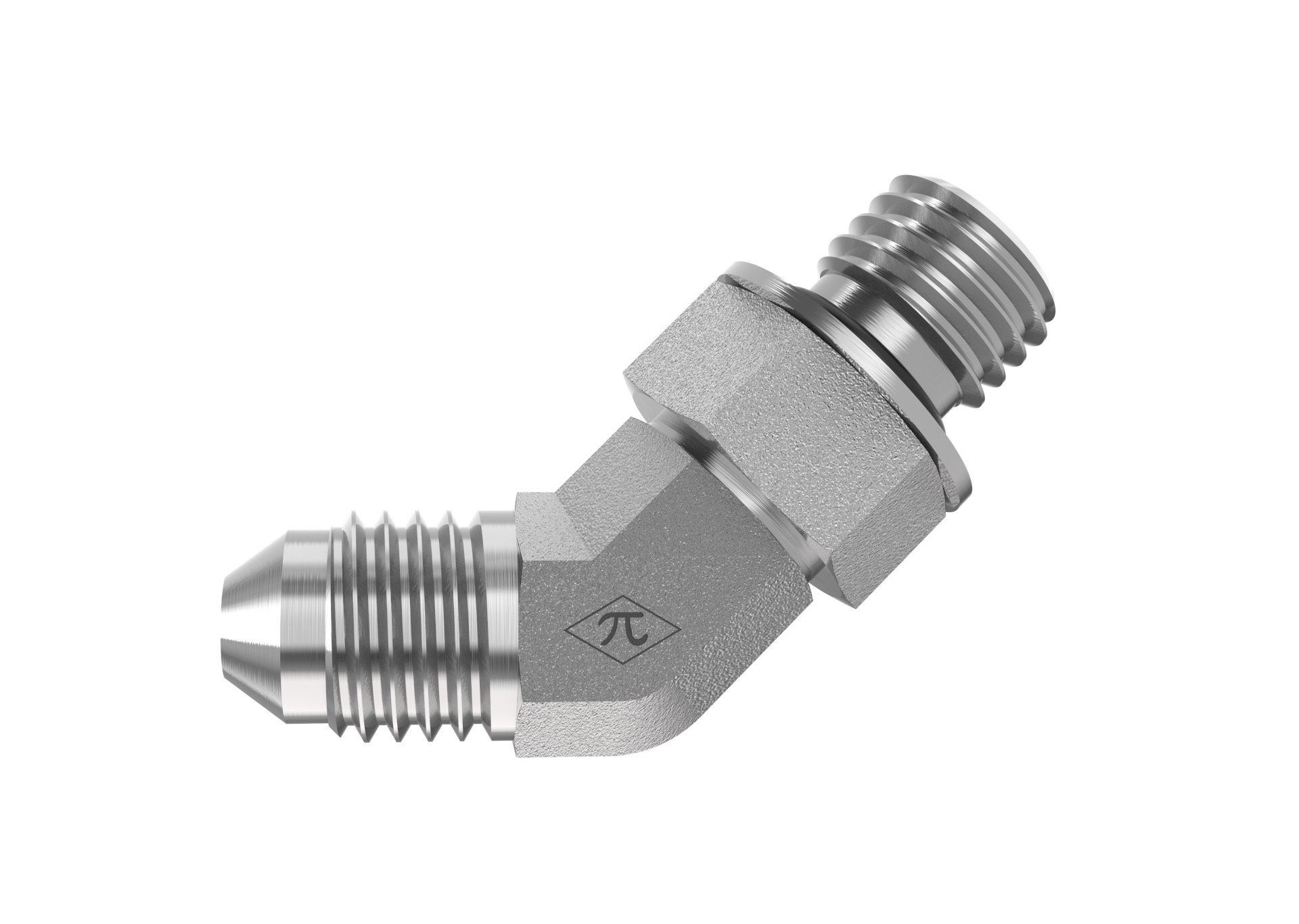

1" Male JIC x 1-5/16-12 Male Adjustable O-Ring Boss

6802-16-16-NWO-FG-VITON is a 1" Male JIC x 1-5/16-12 Male Adjustable O-Ring Boss in the 6802-NWO-FG Series. For connecting 37° flared tubes or lines to an O-ring boss port at a 45° angle.

  • Steel
  • Trivalent Zinc
  • Adjustable Elbow
$38.32
(0) Write a Review
SKU:
6802-16-16-NWO-FG-VITON

Product Details

Connection A
TypeMale JIC
Tube OD1"
StandardSAE J514 - Class 2A Thread
Thread Type1-5/16-12 UN
Connection B
TypeMale Adjustable O-Ring Boss
Port Size1-5/16-12
StandardSAE J1453 / J514
Thread Type1-5/16-12 UN
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeAdjustable Elbow
Weight0.74 lb
Cross References
Aeroquip213-2061-16-16
Parker16 V5OX-S FKM
SAE Ref.SAE J514 16-16 070320CF

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
