HGW HYDRAULICS

6802-20-12-NWO-FG

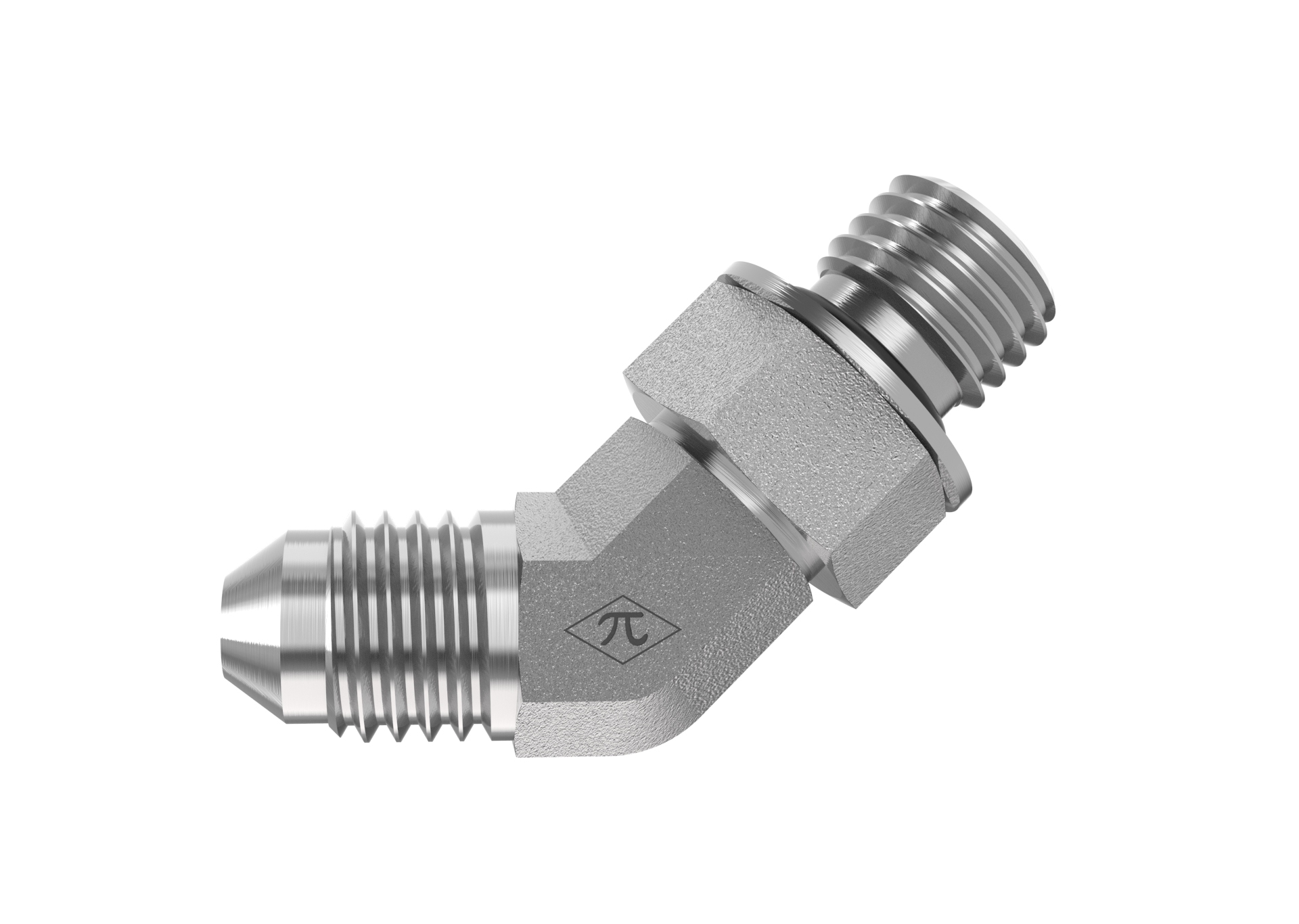

1-1/4" Male JIC x 1-1/16-12 Male Adjustable O-Ring Boss

6802-20-12-NWO-FG is a 1-1/4" Male JIC x 1-1/16-12 Male Adjustable O-Ring Boss in the 6802-NWO-FG Series. For connecting 37° flared tubes or lines to an O-ring boss port at a 45° angle.

  • Steel
  • Trivalent Zinc
  • Adjustable Elbow
$106.64
(0) Write a Review
SKU:
6802-20-12-NWO-FG

Product Details

Connection A
TypeMale JIC
Tube OD1-1/4"
StandardSAE J514 - Class 2A Thread
Thread Type1-5/8-12 UN
Connection B
TypeMale Adjustable O-Ring Boss
Port Size1-1/16-12
StandardSAE J1453 / J514
Thread Type1-5/8-12 UN
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeAdjustable Elbow
Weight1.08 lb
Cross References
SAE Ref.SAE J514 20-12 070320CN

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
