HGW HYDRAULICS

6802-24-20

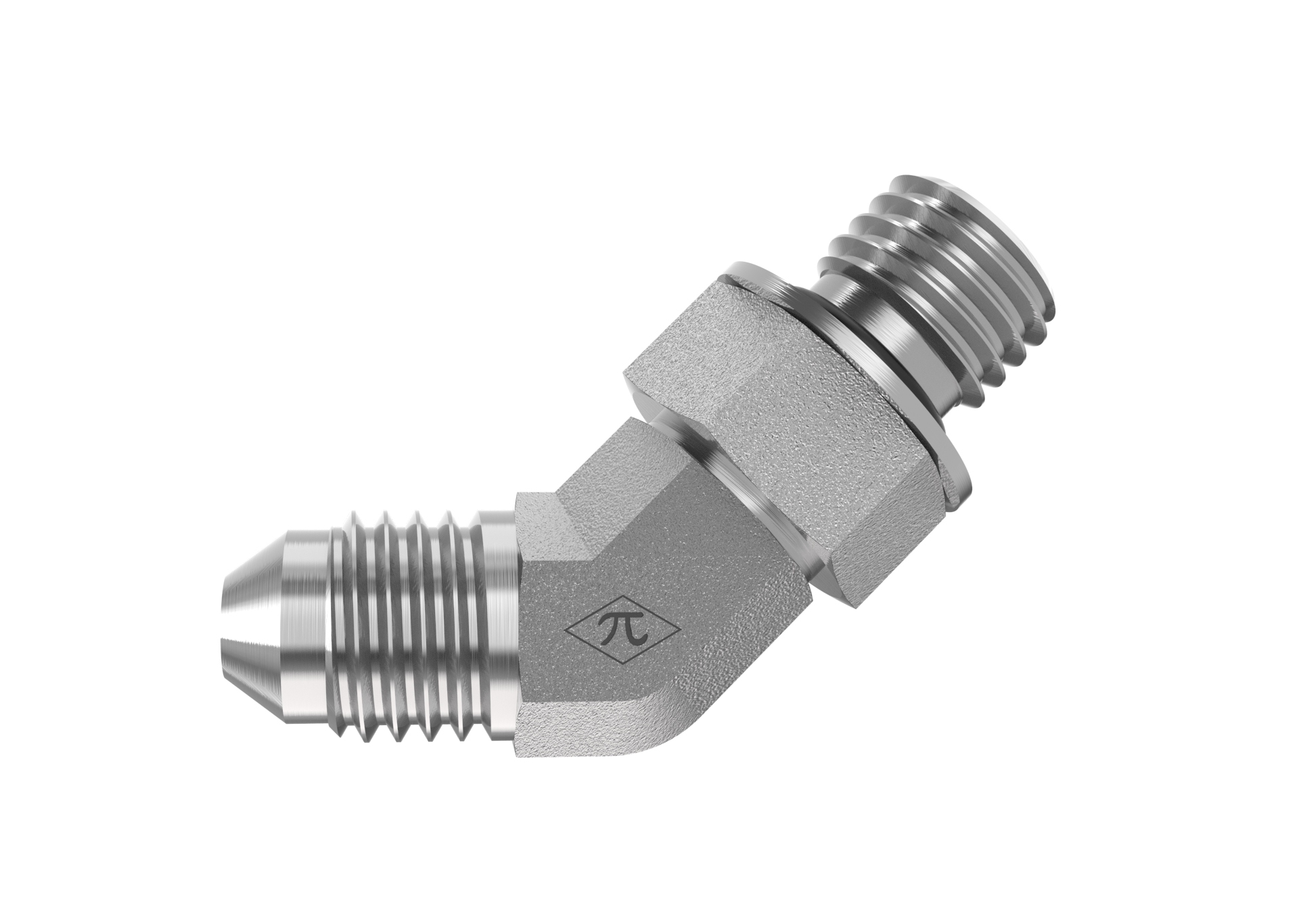

1-1/2" Male JIC 37° Flare × 1-5/8-12 Male Adjustable O-Ring Boss · Adjustable Elbow

The HGW 6802-24-20-NWO-FG is an adjustable elbow joining 1-1/2" male JIC 37° flare to 1-5/8-12 male adjustable o-ring boss. Made from trivalent-zinc-plated steel, it uses SAE J514 and SAE J1453 interfaces for compatible hydraulic applications.

  • Steel
  • Trivalent Zinc
  • Adjustable Elbow
$64.09
(0) Write a Review
SKU:
6802-24-20

Product Details

Connection A
TypeMale JIC 37° Flare
Tube OD1-1/2"
StandardSAE J514 · Class 2A Thread
Thread Type1-7/8-12 UN
Connection B
TypeMale Adjustable O-Ring Boss
Port Size1-5/8-12
StandardSAE J1453 / J514
Thread Type1-7/8-12 UN
Size1-5/8-12
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeAdjustable Elbow
Weight1.49 lb
Cross References
Aeroquip2061-20-24S
Parker24-20 V5OX-S
SAE Ref.SAE J514 24-20 070320CN

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
