HGW HYDRAULICS

6803-16-16-16-NWO-FG

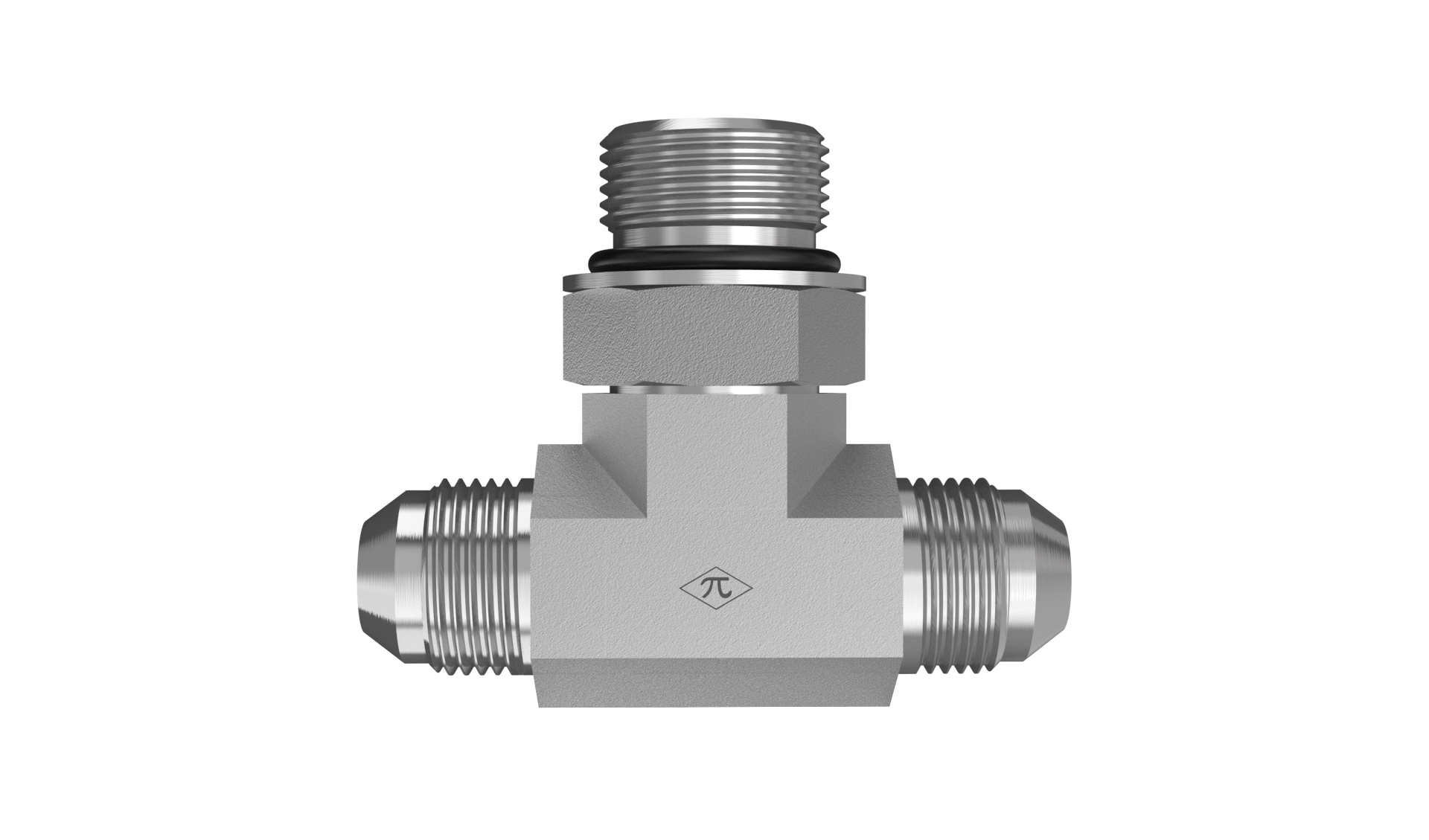

1" Male JIC x 1" Male JIC x 1-5/16-12 Male Adjustable ORB

6803-16-16-16-NWO-FG is a 1" Male JIC x 1" Male JIC x 1-5/16-12 Male Adjustable ORB in the 6803-NWO-FG Series. For connecting two 37° flared tubes or lines to SAE port on the branch using an adjustable nut for alignment.

  • Steel
  • Trivalent Zinc
  • Adjustable Branch Tee
$14.69
(0) Write a Review
SKU:
6803-16-16-16-NWO-FG

Product Details

Connection A
TypeMale JIC
Tube OD1"
StandardSAE J514 - Class 2A Thread
Thread Type1-5/16-12 UN
Connection B
TypeMale JIC
Tube OD1"
StandardSAE J514 - Class 2A Thread
Thread Type1-5/16-12 UN
Connection C
TypeMale Adjustable ORB
Port Size1-5/16-12
StandardSAE J1926
Thread Type1-5/16-12 UN
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeAdjustable Branch Tee
Weight1.10 lb
Cross References
Aeroquip203003-16-16S
Parker16 S5OX-S
SAE Ref.SAE J514 16-16-16 070429CN

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
