HGW HYDRAULICS

6803-16-16-16-NWO-SS-VITON

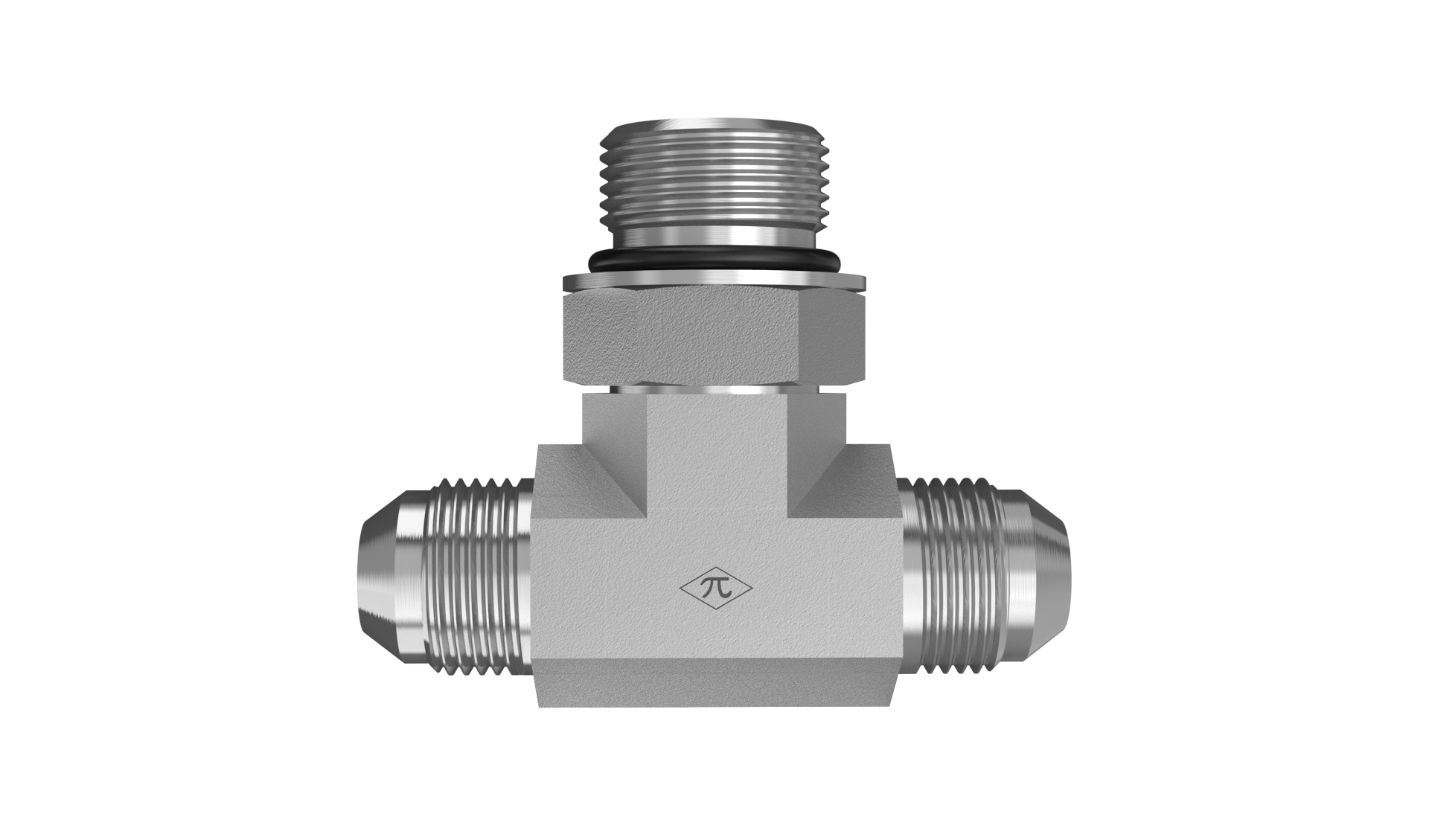

1" Male JIC x 1" Male JIC x 1-5/16-12 Male Adjustable ORB

6803-16-16-16-NWO-SS-VITON is a 1" Male JIC x 1" Male JIC x 1-5/16-12 Male Adjustable ORB in the 6803-NWO-FG Series. For connecting two 37° flared tubes or lines to SAE port on the branch using an adjustable nut for alignment.

  • Stainless Steel
  • Adjustable Branch Tee
  • None
$515.28
(0) Write a Review
SKU:
6803-16-16-16-NWO-SS-VITON

Product Details

Connection A
TypeMale JIC
Tube OD1"
StandardSAE J514 - Class 2A Thread
Thread Type1-5/16-12 UN
Connection B
TypeMale JIC
Tube OD1"
StandardSAE J514 - Class 2A Thread
Thread Type1-5/16-12 UN
Connection C
TypeMale Adjustable ORB
Port Size1-5/16-12
StandardSAE J1926
Thread Type1-5/16-12 UN
Connection D
Specifications
MaterialStainless Steel
ShapeAdjustable Branch Tee
Weight1.12 lb
PlatingNone
Cross References
Aeroquip213-259-203003-16-16
Parker16 S5OX-SS FKM
SAE Ref.SAE J514 16-16-16 070429SF

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
