HGW HYDRAULICS

6803-24-20-24

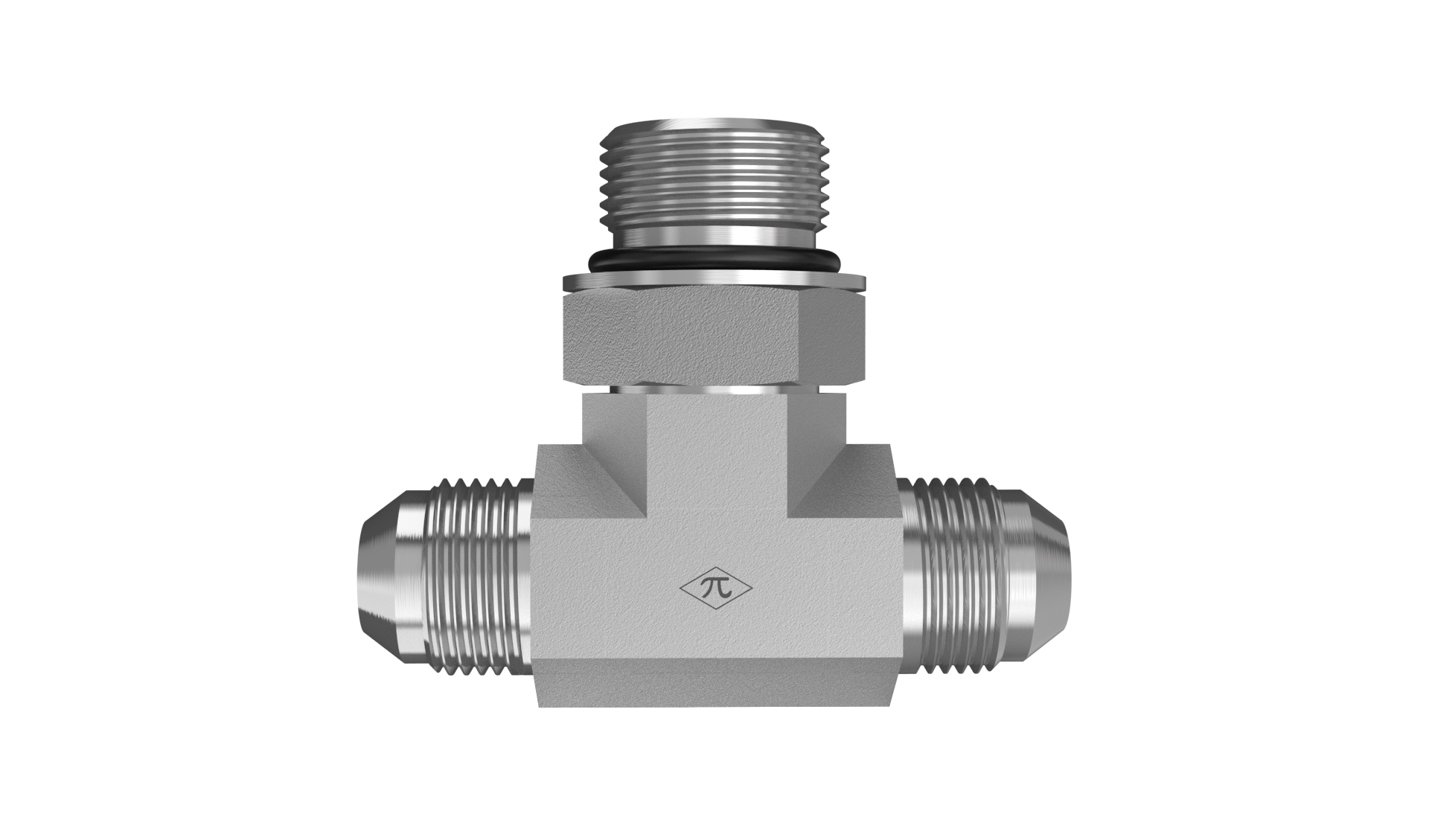

1-1/2" Male JIC 37° Flare × 1-1/4" Male JIC 37° Flare × 1-7/8-12 Male Adjustable ORB · Adjustable Branch Tee

The HGW 6803-24-20-24-NWO-FG is an adjustable branch tee combining 1-1/2" male JIC 37° flare, 1-1/4" male JIC 37° flare, and 1-7/8-12 male adjustable ORB. Trivalent-zinc-plated steel construction with SAE J514 and SAE J1926 connection interfaces.

  • Steel
  • Trivalent Zinc
  • Adjustable Branch Tee
$230.76
(0) Write a Review
SKU:
6803-24-20-24

Product Details

Connection A
TypeMale JIC 37° Flare
Tube OD1-1/2"
StandardSAE J514 · Class 2A Thread
Thread Type1-7/8-12 UN
Connection B
TypeMale JIC 37° Flare
Tube OD1-1/4"
StandardSAE J514 · Class 2A Thread
Thread Type1-7/8-12 UN
Connection C
TypeMale Adjustable ORB
Port Size1-7/8-12
StandardSAE J1926
Thread Type1-5/8-12 UN
Size1-7/8-12
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeAdjustable Branch Tee
Weight2.13 lb
Cross References
Parker24-20-24 S5OX-S
SAE Ref.SAE J514 24-20-24 070429CN

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
