6805-05-06-NWO-FG

1/2-20 Male Adjustable ORB x 3/8" Female NPTF

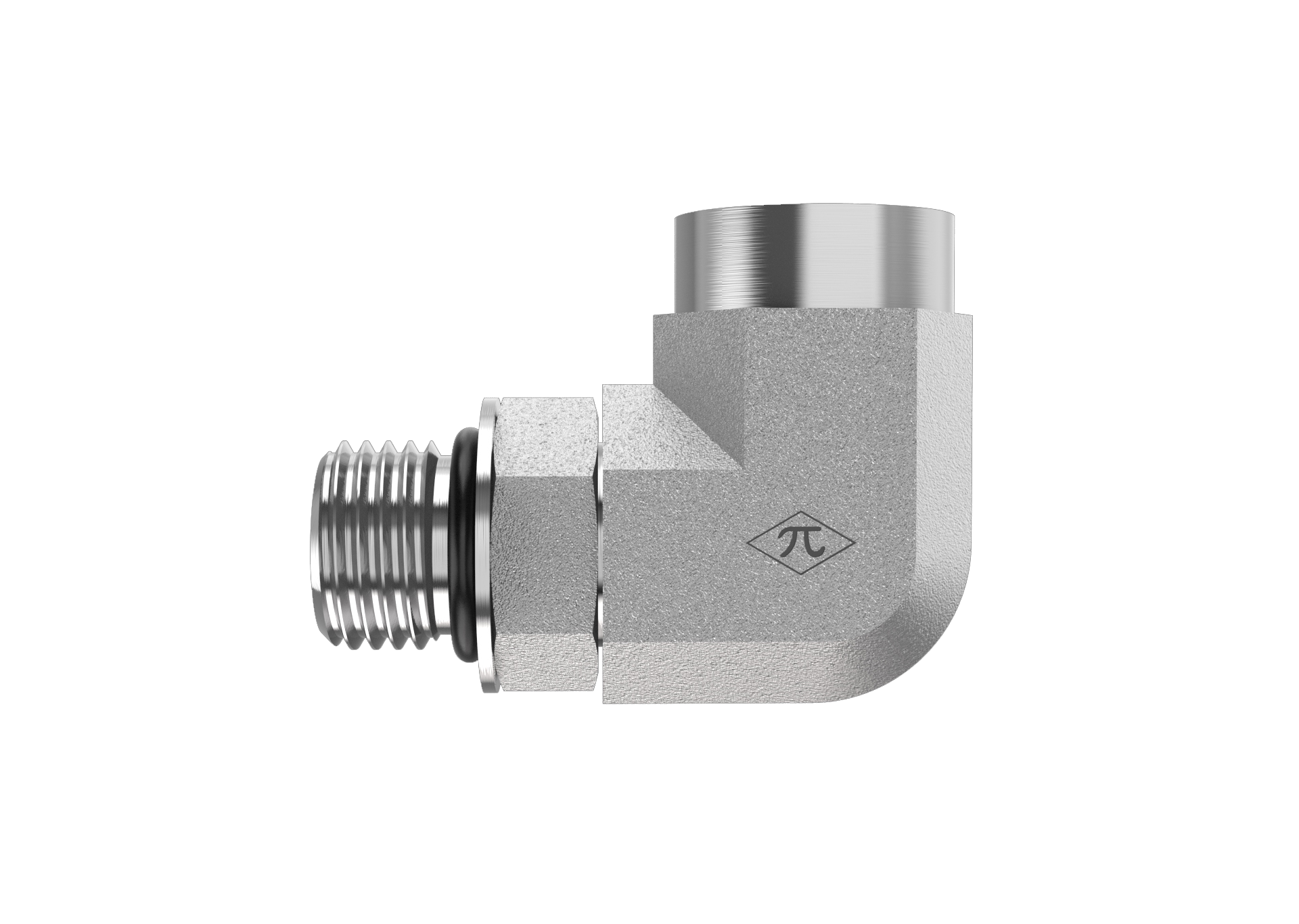

6805-05-06-NWO-FG is a 1/2-20 Male Adjustable ORB x 3/8" Female NPTF in the 6805-NWO-FG Series. SAE J1926 Adjustable O-Ring Boss 90° Female Elbow.

  • Steel
  • Trivalent Zinc
  • Adjustable Elbow
$33.17
(0) Write a Review
SKU:
6805-05-06-NWO-FG

Product Details

Connection A
TypeMale Adjustable ORB
Port Size1/2-20
StandardSAE J1926
Thread Type1/2-20 UNF
Connection B
TypeFemale NPTF
Pipe Size3/8"
StandardSAE J476
Thread Type1/2-20 UNF
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
Weight0.24 lb
ShapeAdjustable Elbow
Cross References
Aeroquip206801-6-5S
Parker5-3/8 AOEG-S

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
