6805-08-06-NWO-SS

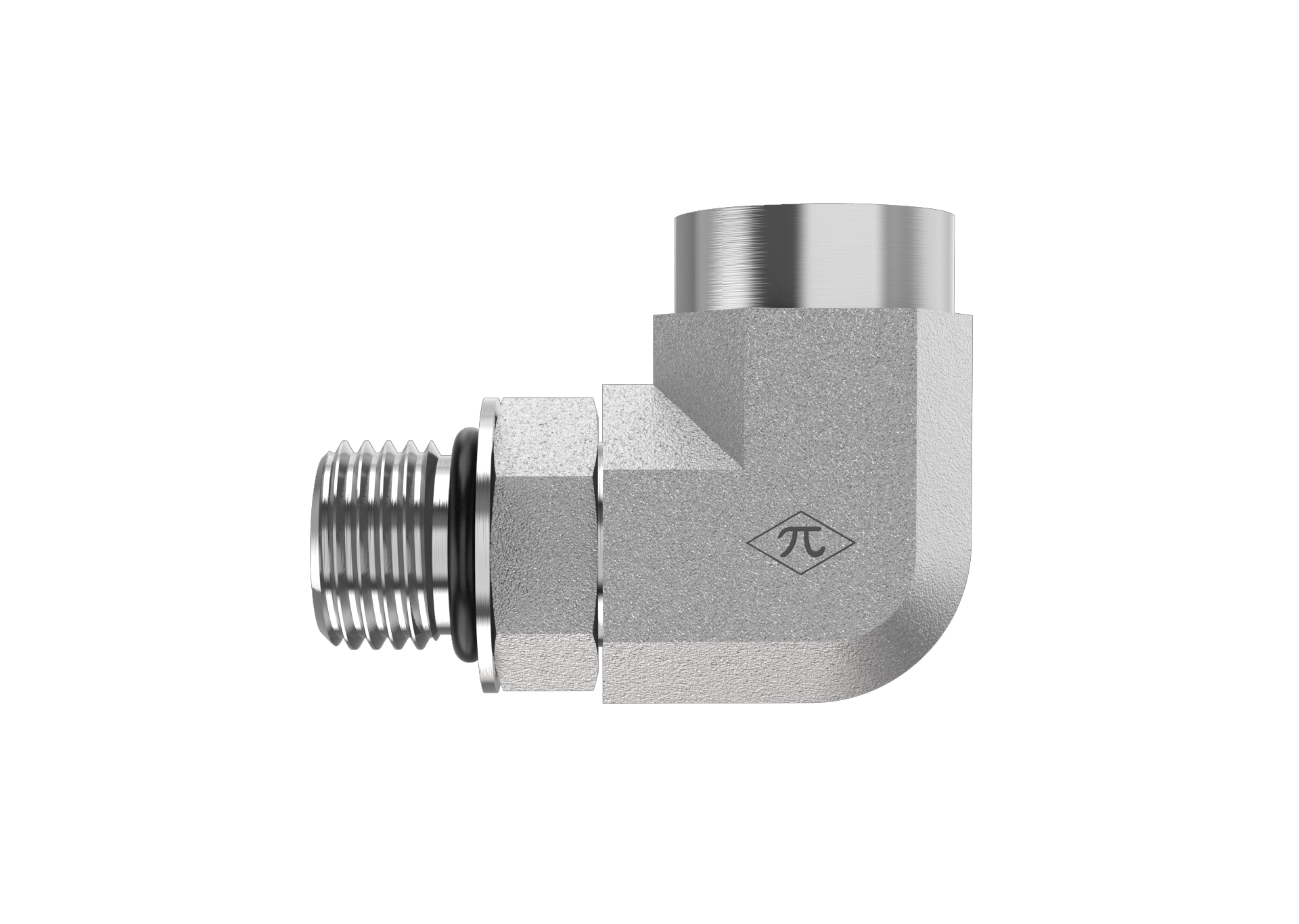

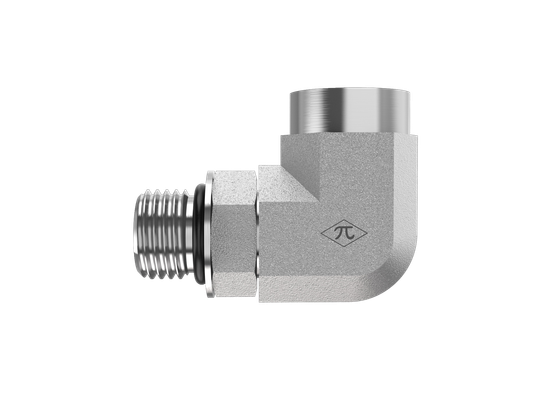

3/4-16 Male Adjustable ORB x 3/8" Female NPTF

6805-08-06-NWO-SS is a 3/4-16 Male Adjustable ORB x 3/8" Female NPTF in the 6805-NWO-FG Series. SAE J1926 Adjustable O-Ring Boss 90° Female Elbow.

  • Stainless Steel
  • Adjustable Elbow
  • None
$145.24
(0) Write a Review
SKU:
6805-08-06-NWO-SS

Product Details

Connection A
TypeMale Adjustable ORB
Port Size3/4-16
StandardSAE J1926
Thread Type3/4-16 UNF
Connection B
TypeFemale NPTF
Pipe Size3/8"
StandardSAE J476
Thread Type3/4-16 UNF
Connection C
Connection D
Specifications
MaterialStainless Steel
Weight0.79 lb
ShapeAdjustable Elbow
PlatingNone
Cross References
Aeroquip259-206801-6-8
Parker8-3/8 AOEG-SS

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
