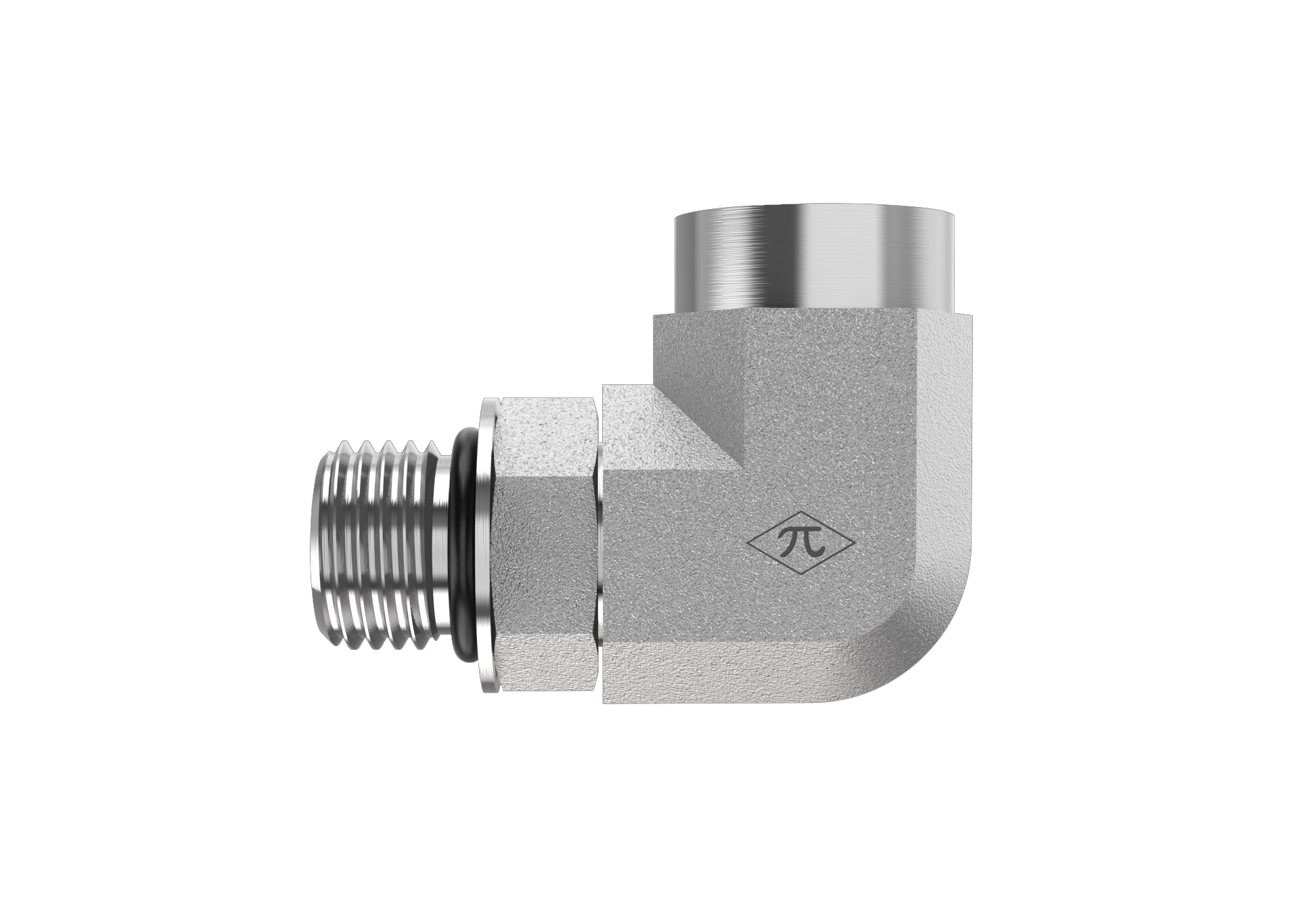

6805-10-06-NWO-FG

7/8-14 Male Adjustable ORB x 3/8" Female NPTF

6805-10-06-NWO-FG is a 7/8-14 Male Adjustable ORB x 3/8" Female NPTF in the 6805-NWO-FG Series. SAE J1926 Adjustable O-Ring Boss 90° Female Elbow.

  • Steel
  • Trivalent Zinc
  • Adjustable Elbow
$11.65
(0) Write a Review
SKU:
6805-10-06-NWO-FG

Product Details

Connection A
TypeMale Adjustable ORB
Port Size7/8-14
StandardSAE J1926
Thread Type7/8-14 UNF
Connection B
TypeFemale NPTF
Pipe Size3/8"
StandardSAE J476
Thread Type7/8-14 UNF
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
Weight0.34 lb
ShapeAdjustable Elbow
Cross References
Aeroquip206801-6-10S
Parker10-3/8 AOEG-S

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
