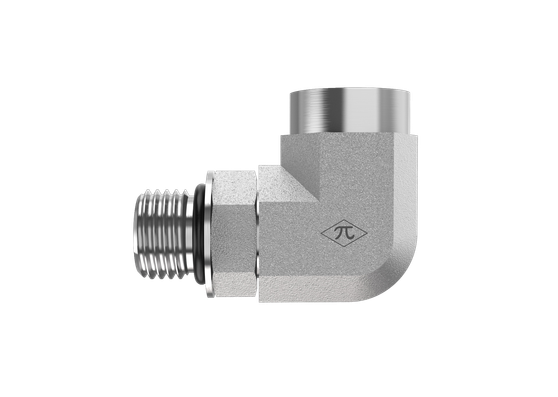

Google Merchant product image

6805-16-16

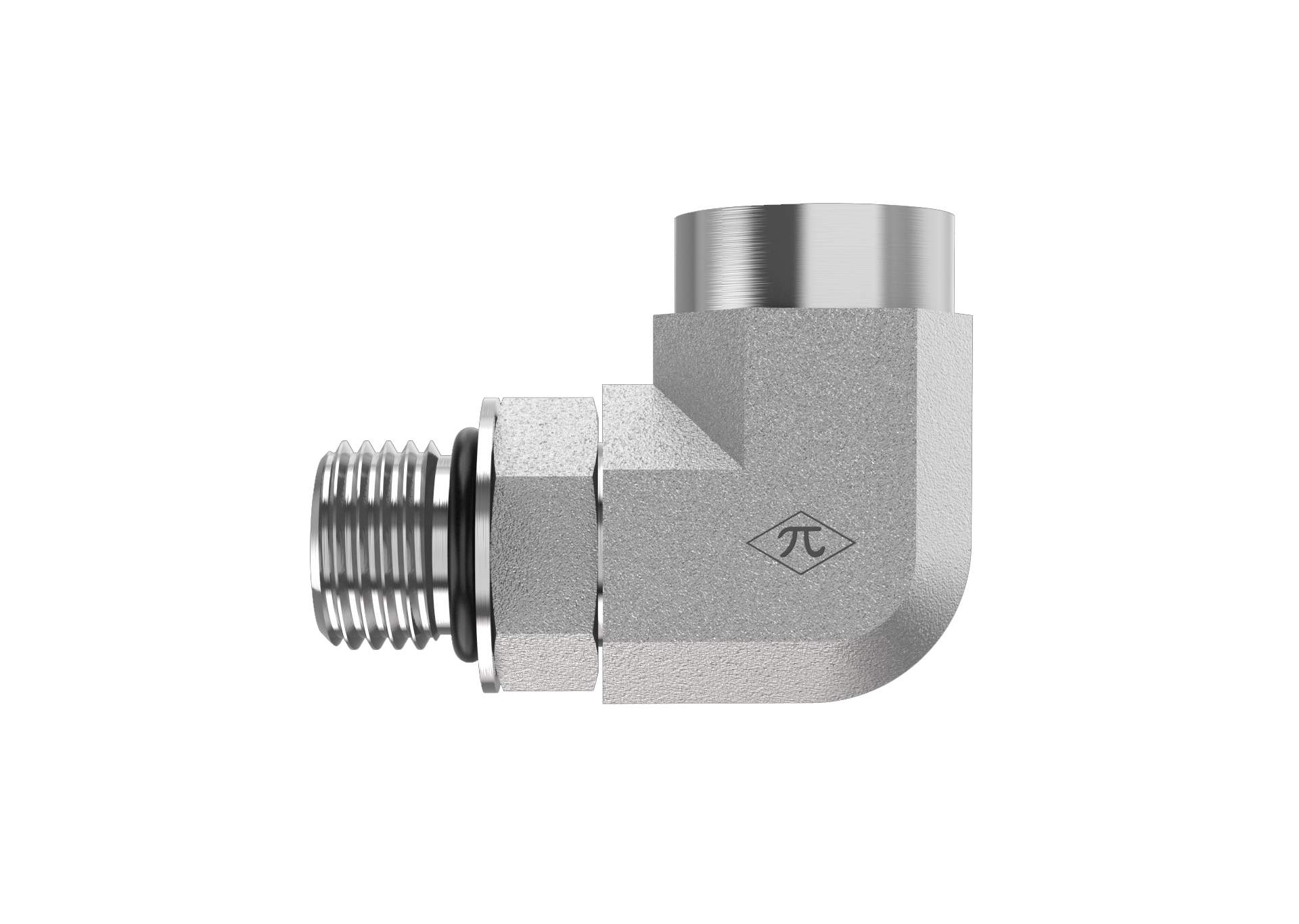

1-5/16-12 Male Adjustable ORB × 1" Female NPTF · Adjustable Elbow

The HGW 6805-16-16-NWO-FG is an adjustable elbow joining 1-5/16-12 male adjustable ORB to 1" female NPTF. Made from trivalent-zinc-plated steel, it uses SAE J1926 and SAE J476 interfaces for compatible hydraulic applications.

  • Steel
  • Trivalent Zinc
  • Adjustable Elbow
$26.72
(0) Write a Review
SKU:
6805-16-16

Product Details

Connection A
TypeMale Adjustable ORB
Port Size1-5/16-12
StandardSAE J1926
Thread Type1-5/16-12 UN
Size1-5/16-12
Connection B
TypeFemale NPTF
Pipe Size1"
StandardSAE J476
Thread Type1-5/16-12 UN
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
Weight1.32 lb
ShapeAdjustable Elbow
Cross References
Aeroquip206801-16-16S
Parker16-1 AOEG-S

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
