6805-16-16-NWO-SS

1-5/16-12 Male Adjustable ORB x 1" Female NPTF

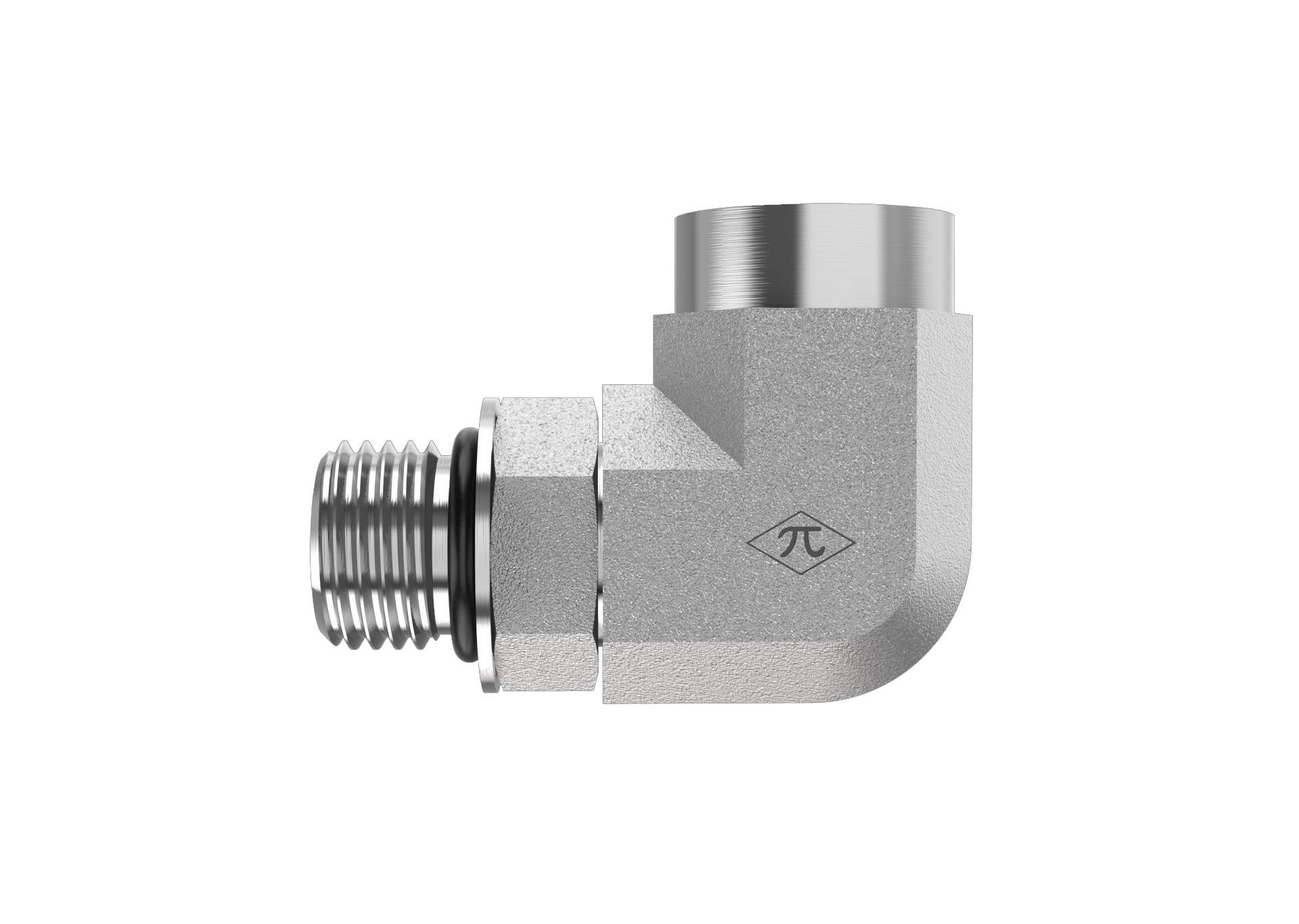

6805-16-16-NWO-SS is a 1-5/16-12 Male Adjustable ORB x 1" Female NPTF in the 6805-NWO-FG Series. SAE J1926 Adjustable O-Ring Boss 90° Female Elbow.

  • Stainless Steel
  • Adjustable Elbow
  • None
$281.04
(0) Write a Review
SKU:
6805-16-16-NWO-SS

Product Details

Connection A
TypeMale Adjustable ORB
Port Size1-5/16-12
StandardSAE J1926
Thread Type1-5/16-12 UN
Connection B
TypeFemale NPTF
Pipe Size1"
StandardSAE J476
Thread Type1-5/16-12 UN
Connection C
Connection D
Specifications
MaterialStainless Steel
Weight1.24 lb
ShapeAdjustable Elbow
PlatingNone
Cross References
Aeroquip259-206801-16-16
Parker16-1 AOEG-SS

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
