6805-24-24-NWO-FG

1-7/8-12 Male Adjustable ORB x 1-1/2" Female NPTF

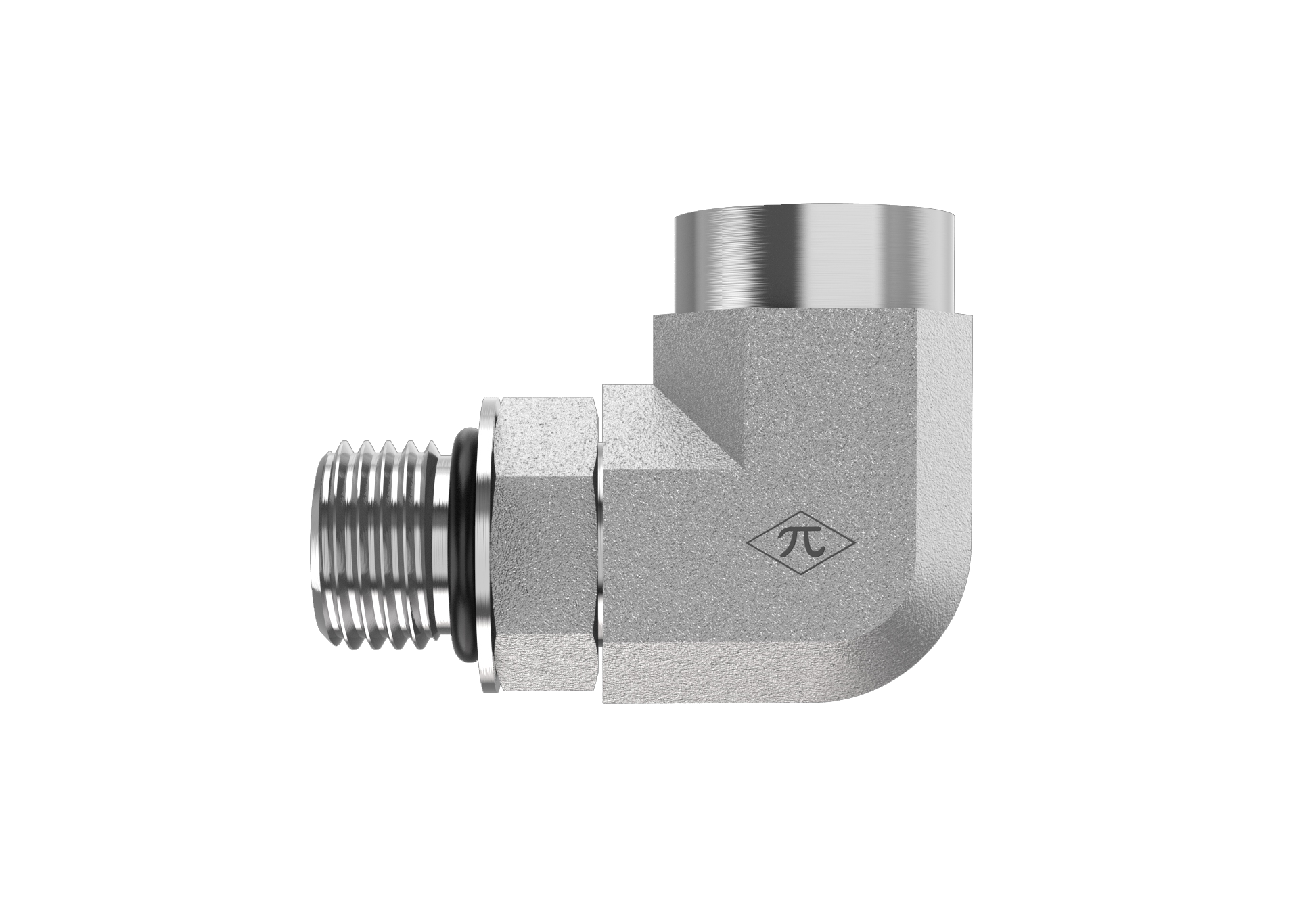

6805-24-24-NWO-FG is a 1-7/8-12 Male Adjustable ORB x 1-1/2" Female NPTF in the 6805-NWO-FG Series. SAE J1926 Adjustable O-Ring Boss 90° Female Elbow.

  • Steel
  • Trivalent Zinc
  • Adjustable Elbow
$83.62
(0) Write a Review
SKU:
6805-24-24-NWO-FG

Product Details

Connection A
TypeMale Adjustable ORB
Port Size1-7/8-12
StandardSAE J1926
Thread Type1-7/8-12 UN
Connection B
TypeFemale NPTF
Pipe Size1-1/2"
StandardSAE J476
Thread Type1-7/8-12 UN
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
Weight4.45 lb
ShapeAdjustable Elbow
Cross References
Aeroquip206801-24-24S
Parker24-1 1/2 AOEG-S

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
