6805-24-24-NWO-SS

1-7/8-12 Male Adjustable ORB x 1-1/2" Female NPTF

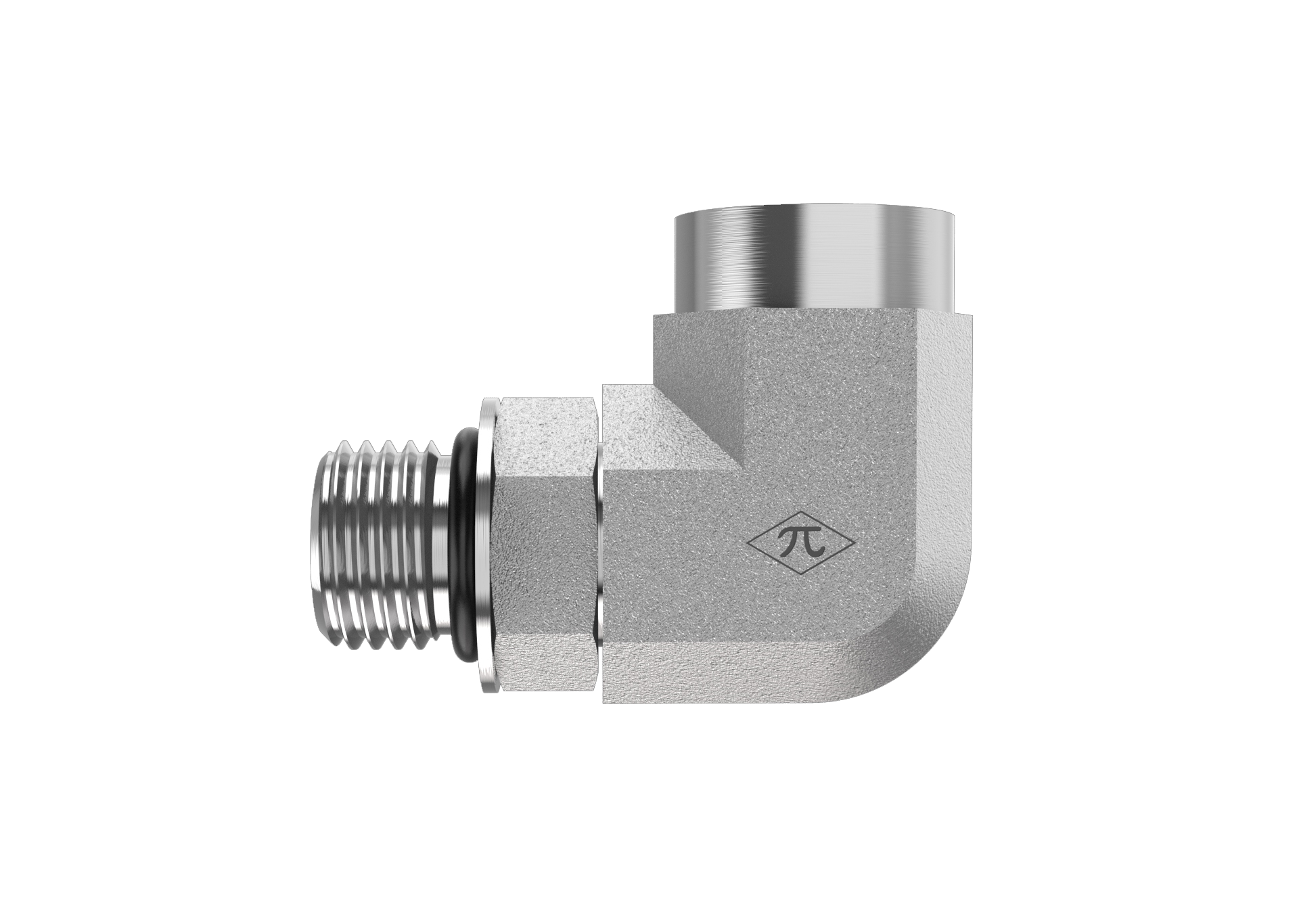

6805-24-24-NWO-SS is a 1-7/8-12 Male Adjustable ORB x 1-1/2" Female NPTF in the 6805-NWO-FG Series. SAE J1926 Adjustable O-Ring Boss 90° Female Elbow.

  • Stainless Steel
  • Adjustable Elbow
  • None
$1,330.69
(0) Write a Review
SKU:
6805-24-24-NWO-SS

Product Details

Connection A
TypeMale Adjustable ORB
Port Size1-7/8-12
StandardSAE J1926
Thread Type1-7/8-12 UN
Connection B
TypeFemale NPTF
Pipe Size1-1/2"
StandardSAE J476
Thread Type1-7/8-12 UN
Connection C
Connection D
Specifications
MaterialStainless Steel
Weight4.54 lb
ShapeAdjustable Elbow
PlatingNone
Cross References
Aeroquip259-206801-24-24
Parker24-1 1/2 AOEG-SS

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
