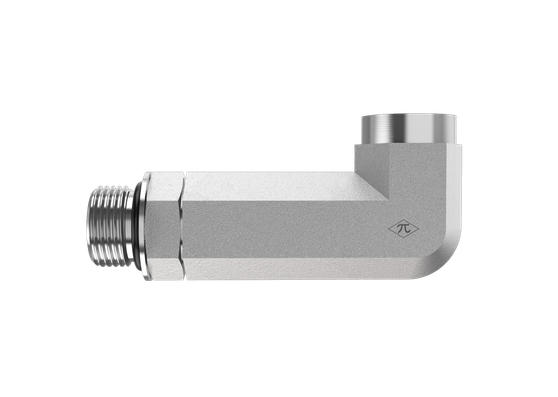

Google Merchant product image

6805-L-24-24

1-7/8-12 Male Adjustable ORB × 1-1/2" Female NPTF · Adjustable Elbow

The HGW 6805-L-24-24-NWO-FG is an adjustable elbow joining 1-7/8-12 male adjustable ORB to 1-1/2" female NPTF. Made from trivalent-zinc-plated steel, it uses SAE J1926 and SAE J476 interfaces for compatible hydraulic applications.

  • Steel
  • Trivalent Zinc
  • Adjustable Elbow
$239.61
(0) Write a Review
SKU:
6805-L-24-24

Product Details

Connection A
TypeMale Adjustable ORB
Port Size1-7/8-12
StandardSAE J1926
Thread Type1-7/8-12 UN
Size1-7/8-12
Connection B
TypeFemale NPTF
Pipe Size1-1/2"
StandardSAE J476
Thread Type1-7/8-12 UN
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
Weight4.30 lb
ShapeAdjustable Elbow
Cross References
Aeroquip206804-24-24S
Parker24-1 1/2 AOE4G-S

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
