6806-04-04

7/16-20 Male Adjustable ORB × 1/4" Male NPTF · Adjustable Elbow

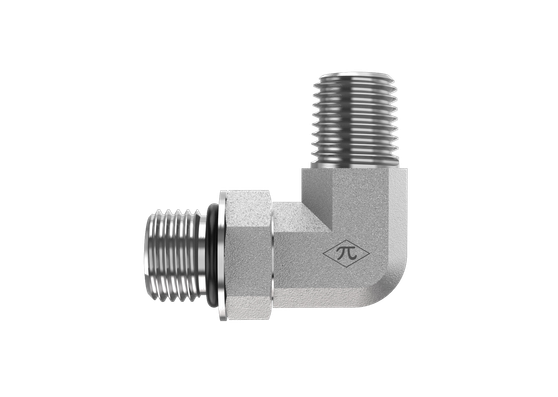

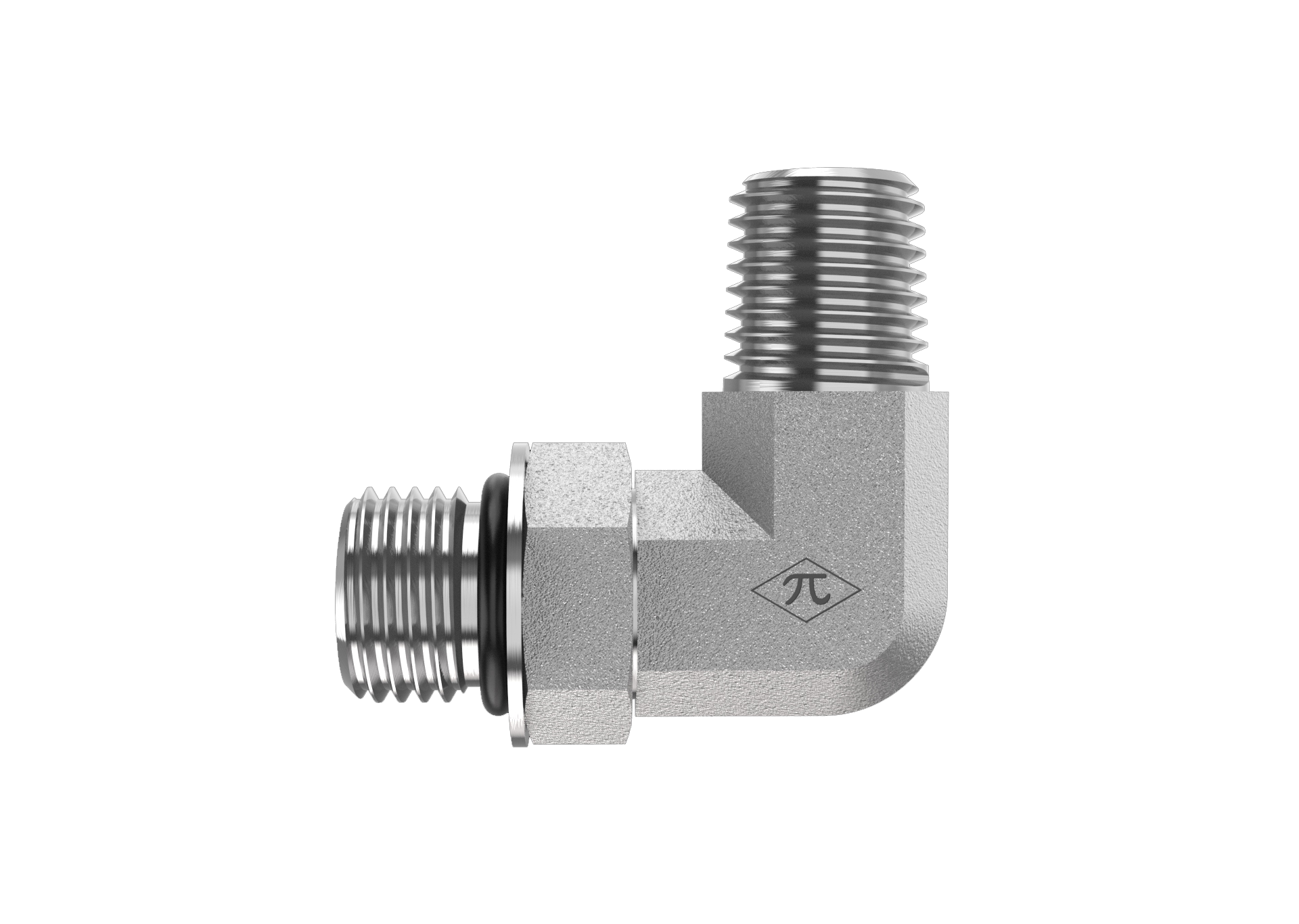

The HGW 6806-04-04-NWO-FG is an adjustable elbow joining 7/16-20 male adjustable ORB to 1/4" male NPTF. Made from trivalent-zinc-plated steel, it uses SAE J1926 and SAE J476 interfaces for compatible hydraulic applications.

  • Steel
  • Trivalent Zinc
  • Adjustable Elbow
$5.85
(0) Write a Review
SKU:
6806-04-04

Product Details

Connection A
TypeMale Adjustable ORB
Port Size7/16-20
StandardSAE J1926
Thread Type7/16-20 UNF
Size7/16-20
Connection B
TypeMale NPTF
Pipe Size1/4"
StandardSAE J476
Thread Type7/16-20 UNF
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
Weight0.11 lb
ShapeAdjustable Elbow
Cross References
Aeroquip2213-4-4S

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
