6806-04-04-NWO-SS

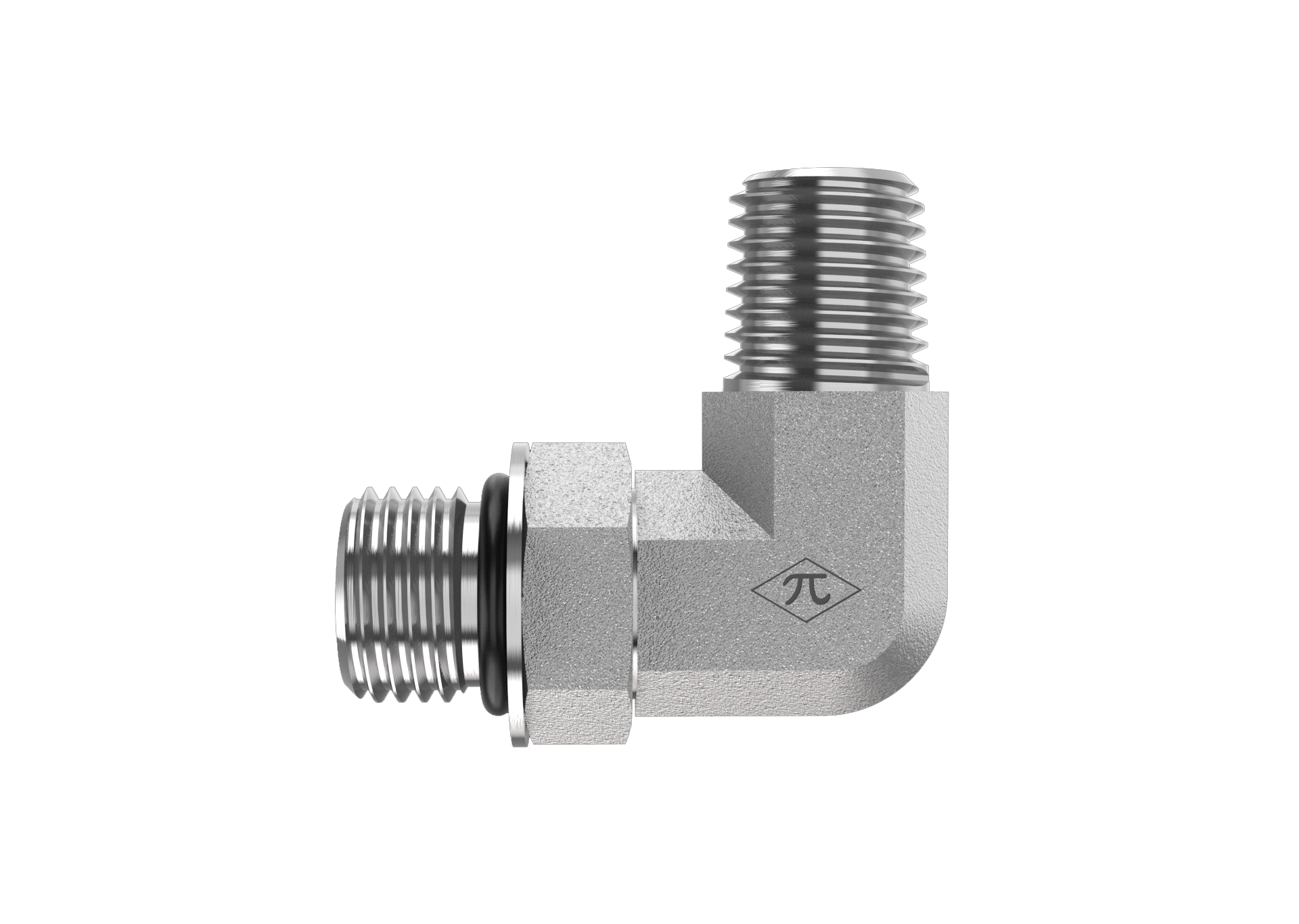

7/16-20 Male Adjustable ORB x 1/4" Male NPTF 30°

6806-04-04-NWO-SS is a 7/16-20 Male Adjustable ORB x 1/4" Male NPTF 30° in the 6806-NWO-FG Series. SAE J1926 Adjustable O-Ring Boss 90° Male Elbow.

  • Stainless Steel
  • Adjustable Elbow
  • None
$41.31
(0) Write a Review
SKU:
6806-04-04-NWO-SS

Product Details

Connection A
TypeMale Adjustable ORB
Port Size7/16-20
StandardSAE J1926
Thread Type7/16-20 UNF
Connection B
TypeMale NPTF 30°
Pipe Size1/4"
StandardSAE J476
Thread Type7/16-20 UNF
Connection C
Connection D
Specifications
MaterialStainless Steel
Weight0.12 lb
ShapeAdjustable Elbow
PlatingNone
Cross References
Aeroquip259-2213-4-4

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
