6806-08-06

3/4-16 Male Adjustable ORB × 3/8" Male NPTF · Adjustable Elbow

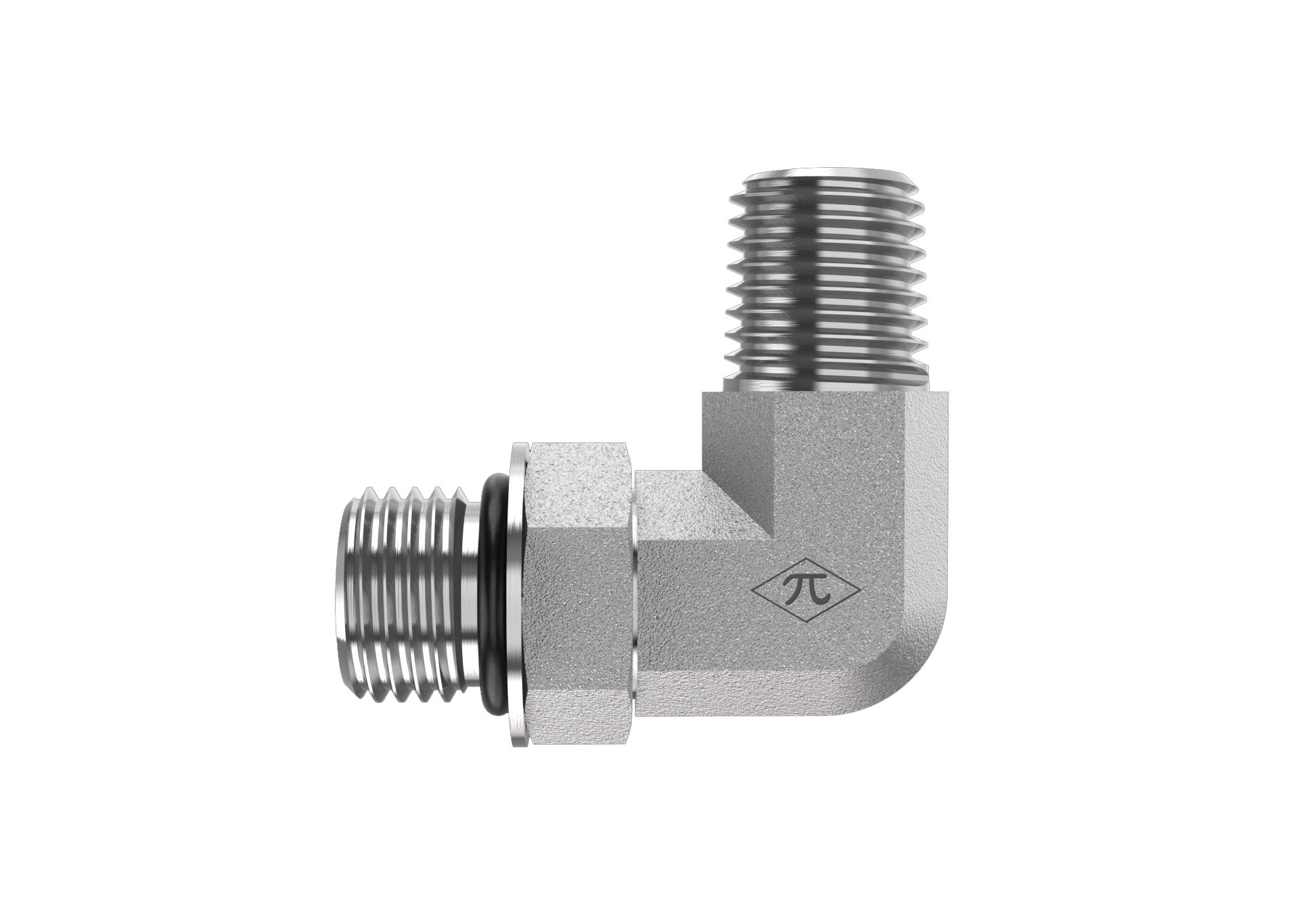

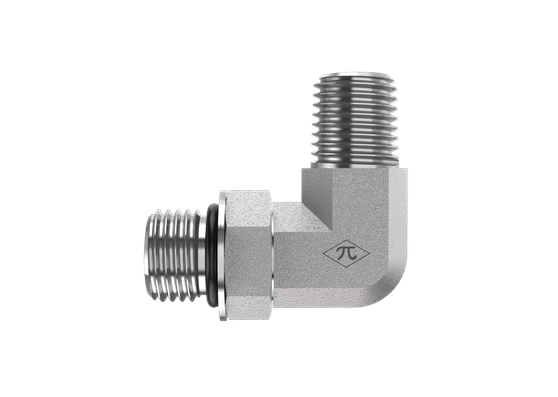

The HGW 6806-08-06-NWO-FG is an adjustable elbow joining 3/4-16 male adjustable ORB to 3/8" male NPTF. Made from trivalent-zinc-plated steel, it uses SAE J1926 and SAE J476 interfaces for compatible hydraulic applications.

  • Steel
  • Trivalent Zinc
  • Adjustable Elbow
$8.21
(0) Write a Review
SKU:
6806-08-06

Product Details

Connection A
TypeMale Adjustable ORB
Port Size3/4-16
StandardSAE J1926
Thread Type3/4-16 UNF
Size3/4-16
Connection B
TypeMale NPTF
Pipe Size3/8"
StandardSAE J476
Thread Type3/4-16 UNF
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
Weight0.25 lb
ShapeAdjustable Elbow
Cross References
Aeroquip2213-6-8S

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
