6806-08-06-NWO-SS

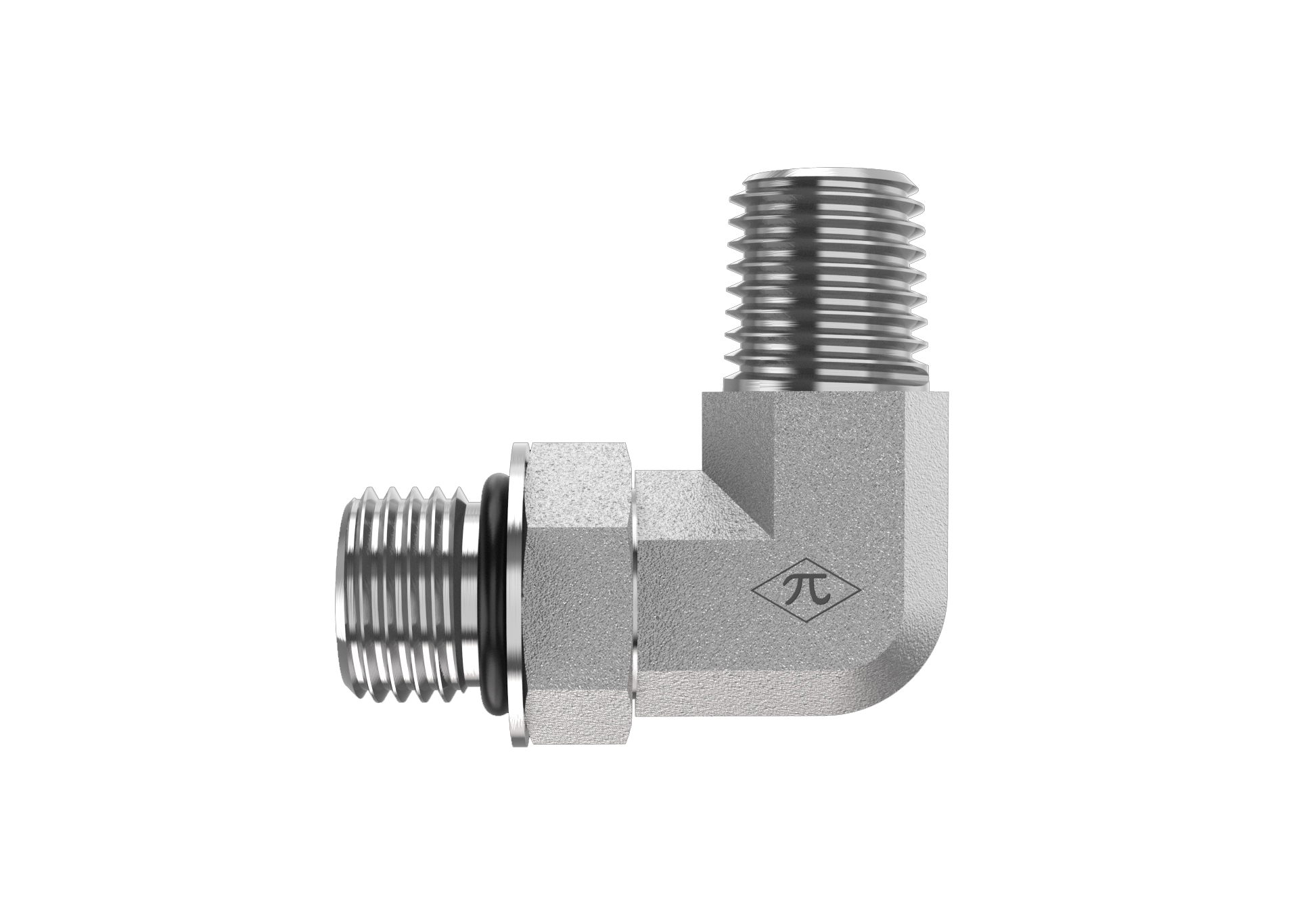

3/4-16 Male Adjustable ORB x 3/8" Male NPTF 30°

6806-08-06-NWO-SS is a 3/4-16 Male Adjustable ORB x 3/8" Male NPTF 30° in the 6806-NWO-FG Series. SAE J1926 Adjustable O-Ring Boss 90° Male Elbow.

  • Stainless Steel
  • Adjustable Elbow
  • None
$206.22
(0) Write a Review
SKU:
6806-08-06-NWO-SS

Product Details

Connection A
TypeMale Adjustable ORB
Port Size3/4-16
StandardSAE J1926
Thread Type3/4-16 UNF
Connection B
TypeMale NPTF 30°
Pipe Size3/8"
StandardSAE J476
Thread Type3/4-16 UNF
Connection C
Connection D
Specifications
MaterialStainless Steel
Weight0.24 lb
ShapeAdjustable Elbow
PlatingNone
Cross References

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
