6806-14-12-NWO-FG

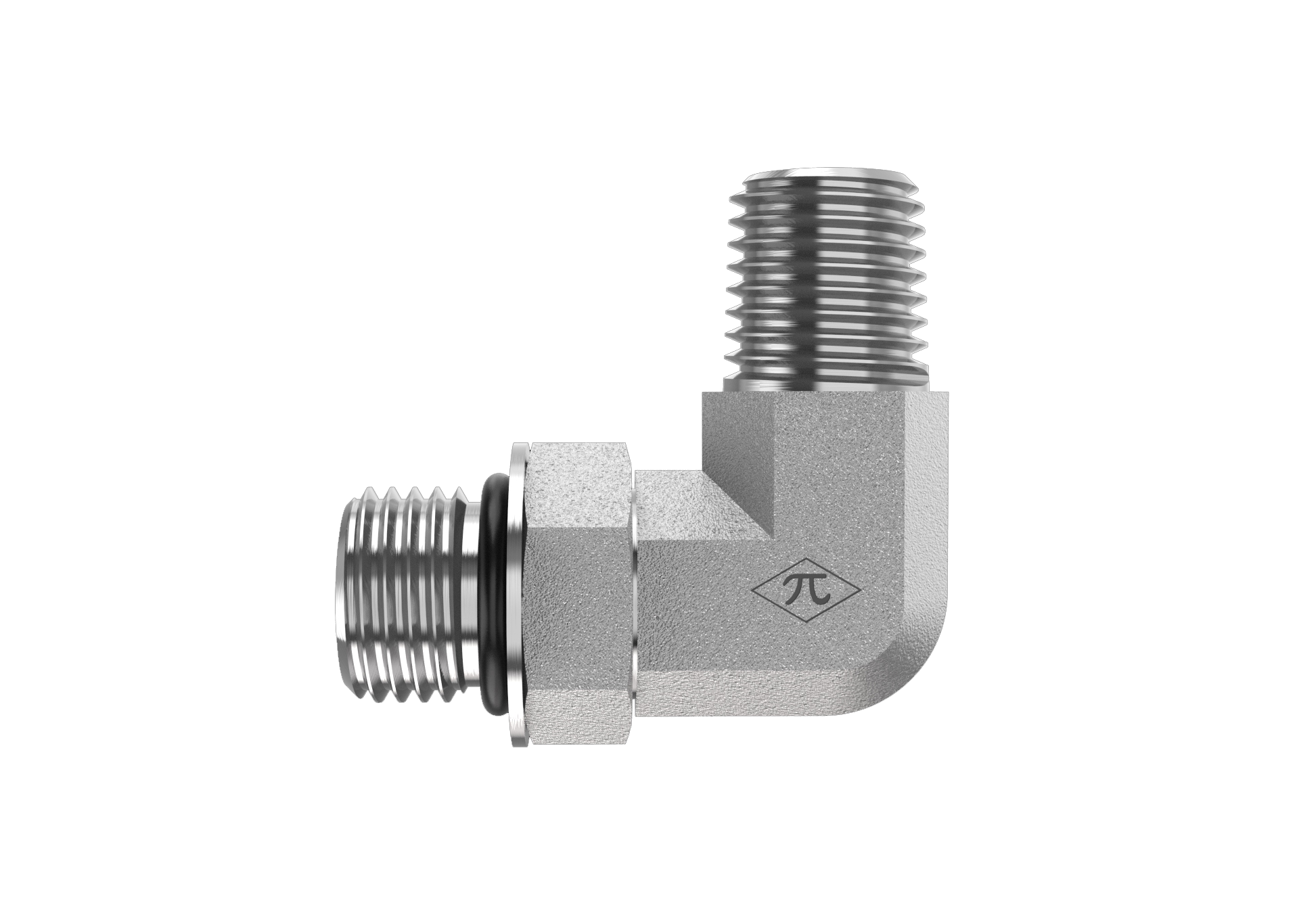

1-3/16-12 Male Adjustable ORB x 3/4" Male NPTF 30°

6806-14-12-NWO-FG is a 1-3/16-12 Male Adjustable ORB x 3/4" Male NPTF 30° in the 6806-NWO-FG Series. SAE J1926 Adjustable O-Ring Boss 90° Male Elbow.

  • Steel
  • Trivalent Zinc
  • Adjustable Elbow
$51.15
(0) Write a Review
SKU:
6806-14-12-NWO-FG

Product Details

Connection A
TypeMale Adjustable ORB
Port Size1-3/16-12
StandardSAE J1926
Thread Type1-3/16-12 UN
Connection B
TypeMale NPTF 30°
Pipe Size3/4"
StandardSAE J476
Thread Type1-3/16-12 UN
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
Weight0.85 lb
ShapeAdjustable Elbow
Cross References
Aeroquip2213-12-14S

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
