6806-20-20

1-5/8-12 Male Adjustable ORB × 1-1/4" Male NPTF · Adjustable Elbow

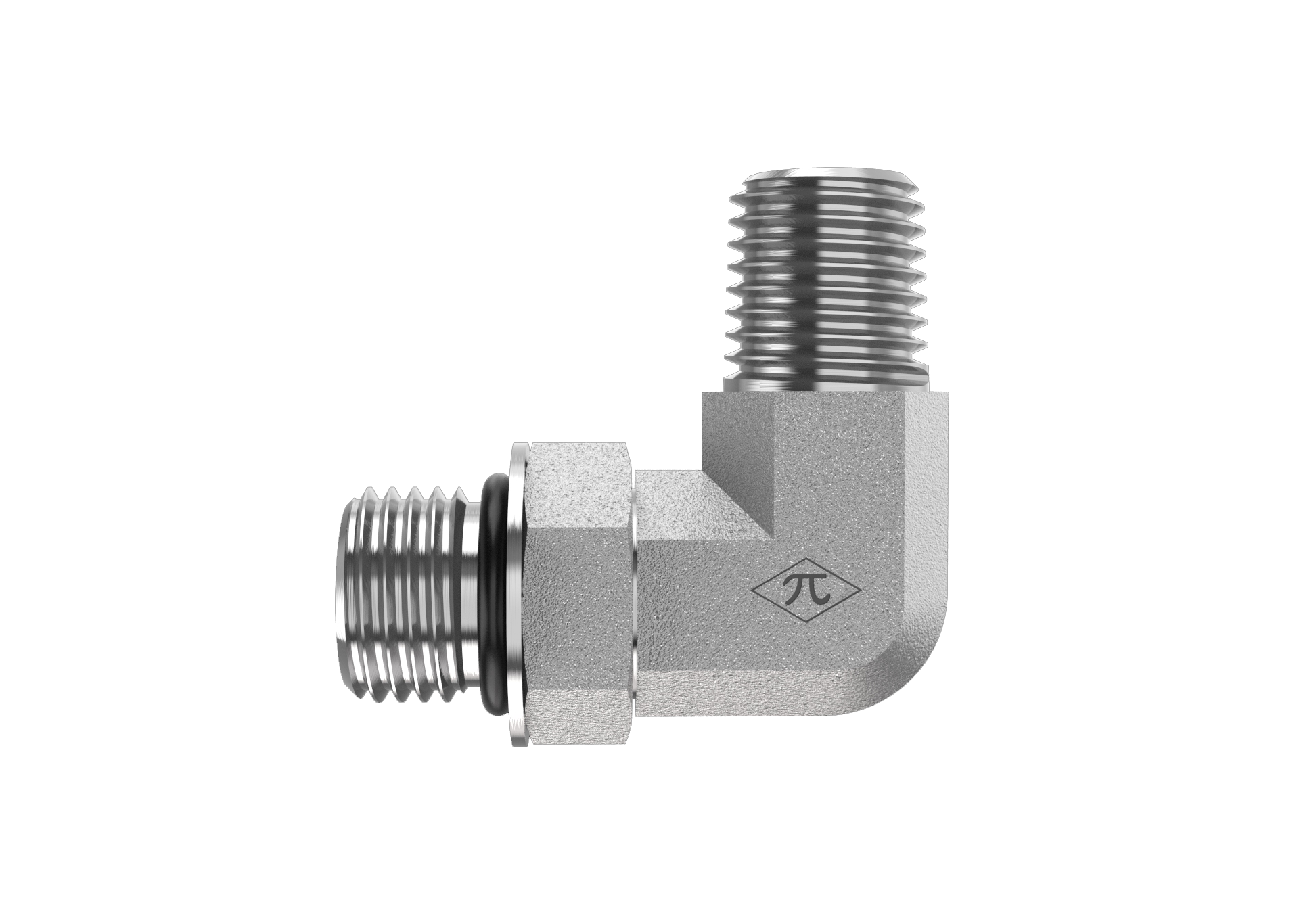

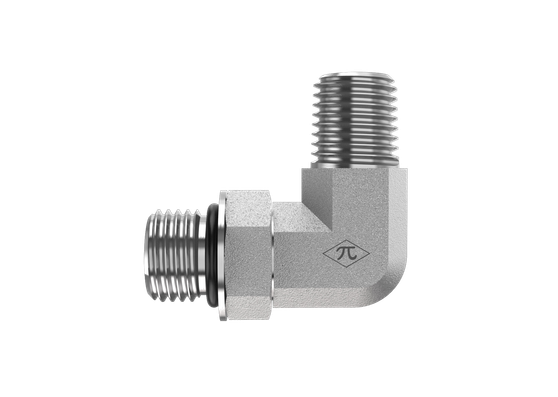

The HGW 6806-20-20-NWO-FG is an adjustable elbow joining 1-5/8-12 male adjustable ORB to 1-1/4" male NPTF. Made from trivalent-zinc-plated steel, it uses SAE J1926 and SAE J476 interfaces for compatible hydraulic applications.

  • Steel
  • Trivalent Zinc
  • Adjustable Elbow
$38.57
(0) Write a Review
SKU:
6806-20-20

Product Details

Connection A
TypeMale Adjustable ORB
Port Size1-5/8-12
StandardSAE J1926
Thread Type1-5/8-12 UN
Size1-5/8-12
Connection B
TypeMale NPTF
Pipe Size1-1/4"
StandardSAE J476
Thread Type1-5/8-12 UN
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
Weight1.55 lb
ShapeAdjustable Elbow
Cross References
Aeroquip2213-20-20S

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
