HGW HYDRAULICS

6807-06-06-NWO-SS

9/16-18 Male Adjustable ORB × 9/16-18 Male Adjustable ORB · Adjustable Elbow

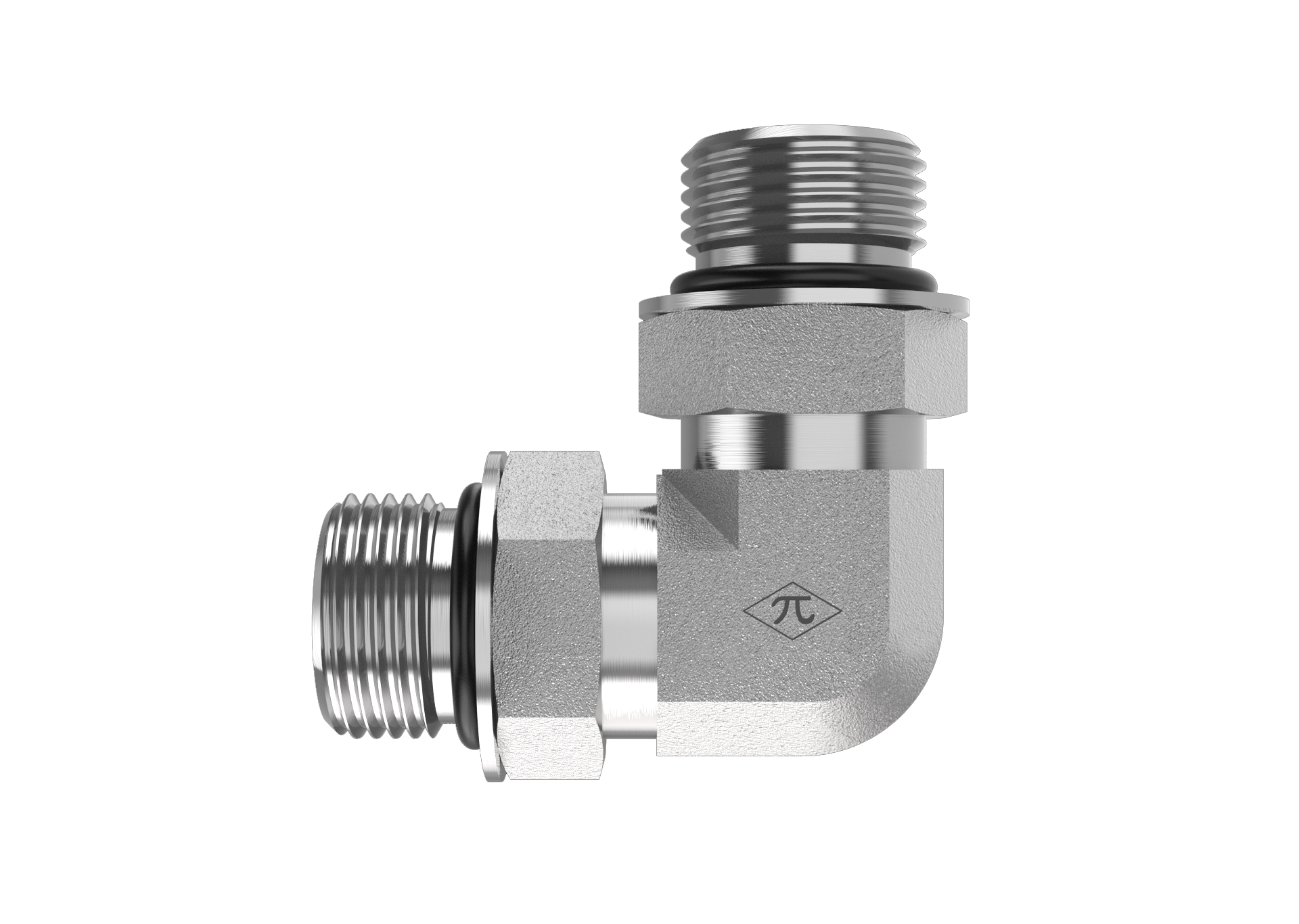

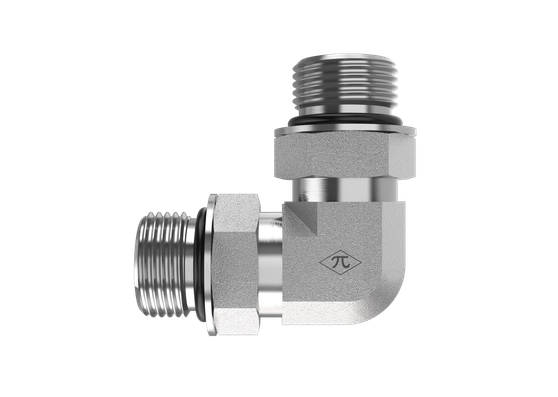

The HGW 6807-06-06-NWO-SS is an adjustable elbow joining 9/16-18 male adjustable ORB to 9/16-18 male adjustable ORB. Made from stainless steel, it uses SAE J1926 interfaces for compatible hydraulic applications.

  • Stainless Steel
  • Adjustable Elbow
$424.55
(0) Write a Review
SKU:
6807-06-06-NWO-SS

Product Details

Connection A
TypeMale Adjustable ORB
Port Size9/16-18
StandardSAE J1926
Thread Type9/16-18 UNF
Size9/16-18
Connection B
TypeMale Adjustable ORB
Port Size9/16-18
StandardSAE J1926
Thread Type9/16-18 UNF
Size9/16-18
Connection C
Connection D
Specifications
MaterialStainless Steel
ShapeAdjustable Elbow
Weight0.15 lb
Cross References

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
